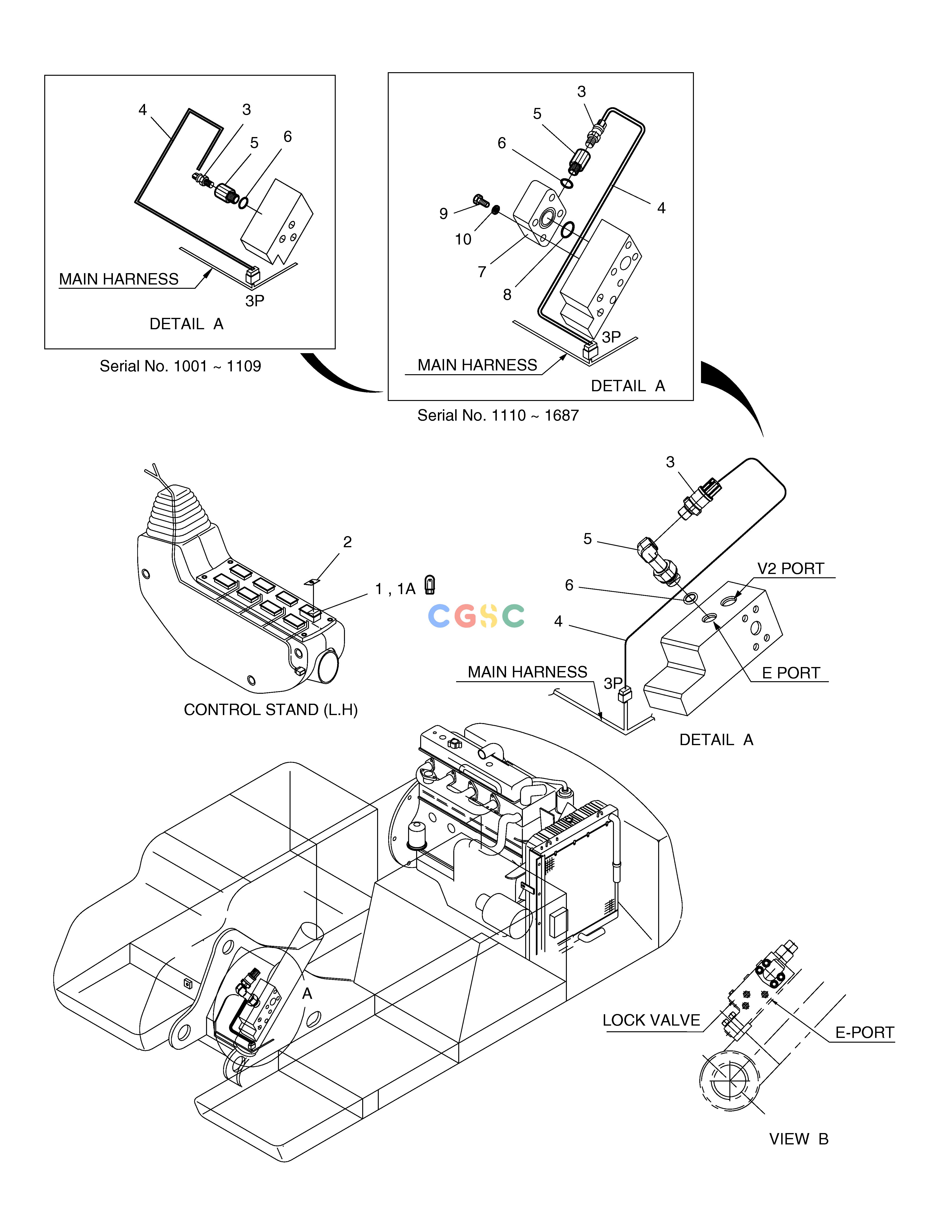

斗山零件查询OVERLOAD WARNING ASS'Y SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
677 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00205
|
[-] |
OVERLOAD WARNING ASSY(OPT)
|
|
| -. |
500-00228
|
[-] |
OVERLOAD WARNING DEVICE
|
|
| -. |
500-00264
|
[-] |
OVERLOAD WARNING DEVICE
|
|
| 1. |
2549-9098
|
[1] |
SWITCH;ROCKER
|
|
| 10. |
S5110603
|
[4] |
WASHER
|
|
| 1A. |
K9000353
|
[1] |
LAMP;PILOT
|
|
| 2. |
2190-2036D25
|
[1] |
INSERT;OVERLOAD WARNING
|
|
| 3. |
2547-9045
|
[1] |
SENSOR;PRESSURE
|
|
| 4. |
530-00269
|
[1] |
HARNESS;OVERLOAD WARNING
|
|
| 4. |
530-00256
|
[1] |
HARNESS;OVERLOAD WARNING
|
|
| 5. |
2181-2439A
|
[1] |
REDUCER
|
|
| 5. |
DS2308022
|
[1] |
ELBOW
|
|
| 6. |
S8000111
|
[1] |
O-RING
|
|
| 6. |
S8000121
|
[1] |
O-RING
|
|
| 7. |
181-00774
|
[1] |
FLANGE
|
|
| 8. |
S8000281
|
[1] |
O-RING
|
|
| 9. |
S2212561
|
[4] |
BOLT;SOCKET M10X1.5X45
|
|
