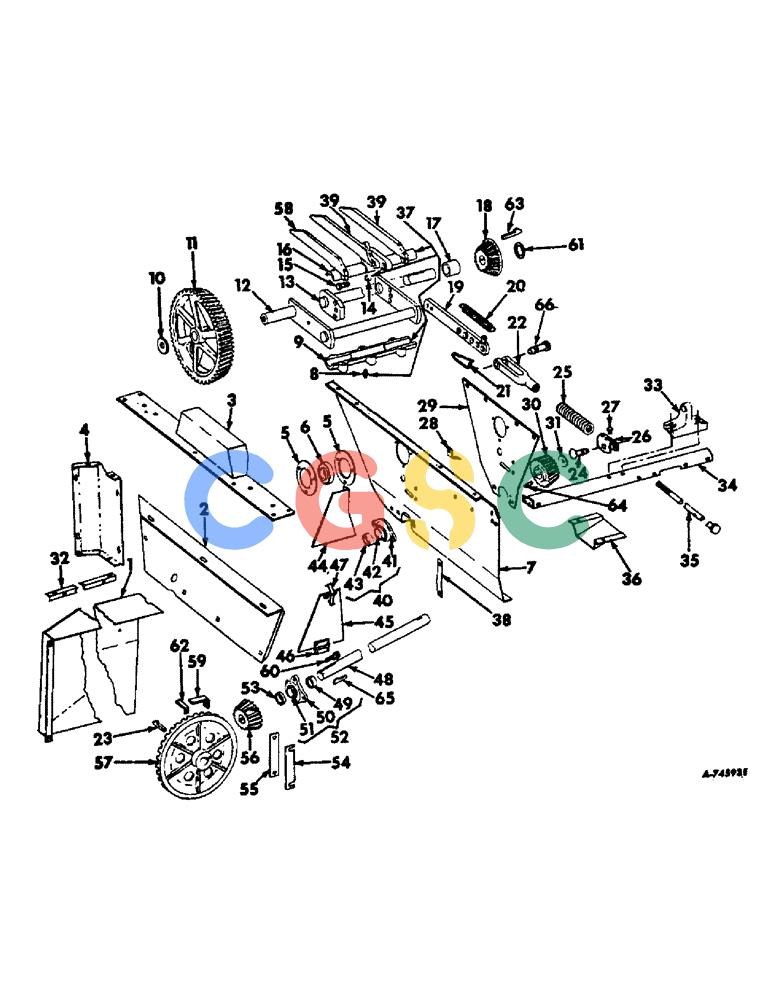

| 1. |
674142R1
|
[1] |
COVER ASSY
|
IH
packer drive
|
| . . |
18764R1
|
[2] |
HARDWARE,Hex, 5/16"-18 x 3/4", G2
|
IH
BOLT, 5/16 x 3/4 C-Z hex-hd mach Superseded by part number: 424-512
|
| . . |
16897R1
|
[2] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 5/16 x 3/4 C-Z sq-nk crg Superseded by part number: 412-512
|
| . . |
120376
|
[2] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
670472R1
|
[2] |
SPRING NUT,J, Ret, 5/16"-18
|
IH
5/16-18 speed grip Superseded by part number: 131-890
|
| . . |
80681
|
[2] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| . . |
138538
|
[2] |
LOCK WASHER
|
IH
WASHER, 5/16 C-Z int-tooth lock Superseded by part number: 23060R1
|
| . . |
440-12510
|
[2] |
SCREW,Cross Pan Hd, 1/4"-20 x 5/8"
|
CAS
1/4-20 x 5/8 znd slt-truss hd mach Superseded by part number: 86511931
|
| . . |
674148R1
|
[2] |
NUT
|
IH
1/4-20 speed grip Superseded by part number: 131-864
|
| . . |
120423
|
[2] |
LOCK WASHER,Int Tooth, 0.267" ID x 0.478" OD x 0.028"
|
IH
WASHER, LOCK, Int Tooth, 1/4" Superseded by part number: 115547
|
| 2. |
674125R1
|
[1] |
SHIELD
|
IH
packer brg
|
| . . |
670454R1
|
[3] |
NUT
|
IH
5/16-18 speed grip
|
| . . |
120393
|
[1] |
BEARING WASHER,5/16", SAE
|
IH
WASHER, 11/32 x 11/16 x .051 C-Z Superseded by part number: 28588R1
|
| 3. |
674116R1
|
[1] |
SHIELD
|
IH
ASSY, packer gear upper
|
| . . |
137138
|
[6] |
SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"
|
IH
1/4-20 x 3/4 C-Z slt-truss-hd mach
|
| . . |
938016R1
|
[6] |
FLANGE NUT,Flg, USR, 1/4"-20
|
IH
1/4-20 znd hex Superseded by part number: 523282
|
| 4. |
204667C1
|
[1] |
SUPPORT
|
IH
FRONT, feed opening, replaces 674146R1
|
| . . |
21309R1
|
[1] |
WASHER
|
IH
13/32 x 7/8 x 7 ga C-Z Superseded by part number: 495-81132
|
| 5. |
667861R1
|
[2] |
BEARING CAP,2.8346" ID x 4.8125" OD x 0.375"
|
IH
brg retainer
|
| . . |
18684R1
|
[3] |
BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8 x 1-1/4 C-Z sq-nk crg Superseded by part number: 550796R1
|
| . . |
120377
|
[3] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[3] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 6. |
571588R91
|
[1] |
BALL BEARING
|
IH
BEARING ASSY, packer crank front Superseded by part number: 47066
|
| 7. |
674115R1
|
[1] |
SUPPORT
|
IH
packer brg front
|
| . . |
18508R1
|
[5] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 C-Z sq-nk crg Superseded by part number: 86508748
|
| . . |
17351R1
|
[1] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 C-Z sq-nk crg Superseded by part number: 88682
|
| 8. |
109461
|
[1] |
LUBE NIPPLE,1/8"-27 x .66 lg
|
IH
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg Superseded by part number: 80710
|
| 10. |
667698R1
|
[1] |
WASHER
|
IH
packer crank brg front
|
| . . |
220724
|
[1] |
BOLT,Hex Hd, Lock, 7/16"-14 x 1 1/4", G5
|
IH
BOLT, 7/16-14 x 1-1/4 C-Z type AA hex. lock Superseded by part number: 70427R1
|
| 11. |
667768R1
|
[1] |
GEAR
|
IH
packer drive upper
|
| . . |
18476R1
|
[1] |
BOLT,Hex, 1/2"-13 x 2 1/2", G2
|
IH
1/2 x 2-1/2 C-Z hex-hd mach Superseded by part number: 179891
|
| . . |
120378
|
[1] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| . . |
120384
|
[1] |
WASHER,1/2"
|
IH
LOCK, 1/2" Superseded by part number: 116121
|
| . . |
178373R1
|
[1] |
WASHER
|
IH
17/32 x 1 x 16 ga C-Z (as required) Superseded by part number: 495-51053
|
| 12. |
667694R91
|
[1] |
CRANKSHAFT
|
IH
ASSY, packer
|
| . . |
608065R1
|
[4] |
WASHER, 1-13/32 x 2 x 16 ga C-Z (as required)
|
|
| . . |
21794R1
|
[1] |
WASHER
|
IH
1-13/32 x 2 x 20 ga C-Z (as required) Superseded by part number: 495-81212
|
| 13. |
667726R91
|
[1] |
CRANKSHAFT
|
IH
ASSY, packer rear
|
| . . |
181377
|
[1] |
BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5
|
IH
SCREW, 3/8-24 x 1-3/4 C-Z hex-hd cap Superseded by part number: 88117
|
| . . |
9413938
|
[1] |
NUT, 3/8-24 PHC hex lock
|
|
| . . |
103321
|
[1] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
432-1232
|
[1] |
COTTER PIN,3/16" OD x 2" L
|
CAS
3/16" x 2" Superseded by part number: 87400
|
| . . |
608085R1
|
[8] |
WASHER
|
IH
1-13/32 x 2 x 16 ga C-Z (as required) Superseded by part number: 495-81213
|
| 14. |
662555R1
|
[1] |
BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L
|
IH
shear bolt
|
| . . |
120368
|
[1] |
NUT,5/16"-24, G5
|
IH
Superseded by part number: 86629539
|
| 15. |
181620
|
[1] |
SCREW,Hex, 5/16" - 24 x 2", Gr 5
|
IH
BOLT, shear 5/16-24 x 2 C-Z hex-hd cap screw Superseded by part number: 414-532
|
| 17. |
667729R2
|
[1] |
SLEEVE
|
IH
packer crank
|
| 18. |
495163R3
|
[1] |
GEAR
|
IH
intermediate miter
|
| 19. |
202638C1
|
[1] |
ARM
|
IH
packer finger
|
| . . |
663108R1
|
[1] |
HEADED PIN,7/16" x 2 1/2"
|
IH
PIN, packer finger arm
|
| . . |
18481R1
|
[1] |
COTTER PIN,3/16" x 1"
|
IH
PIN, SPLIT (COTTER), 3/16" x 1" Superseded by part number: 432-1216
|
| 20. |
69983D
|
[1] |
SPRING
|
IH
packer
|
| 21. |
664840R1
|
[1] |
RING
|
IH
PIN, packer finger clip
|
| 22. |
662032R2
|
[1] |
CONNECTOR, ELEC
|
IH
CONNECTOR, packer finger relief
|
| 23. |
669016R1
|
[1] |
KEY
|
IH
3/8 x 2-3/4 taper gib
|
| 24. |
674140R1
|
[2] |
AXLE PIN
|
IH
PIN, packer control link
|
| . . |
432-1624
|
[1] |
COTTER PIN,1/4" x 1 1/2"
|
CAS
Pin, Split (Cotter), 1/4" x 1 1/2" Superseded by part number: 80753
|
| . . |
366112R1
|
[2] |
WASHER
|
IH
25/32 x 1-1/4 x 11 ga C-Z Superseded by part number: 87024778
|
| 25. |
663902R1
|
[1] |
VALVE SPRING
|
IH
SPRING, packer relief
|
| 26. |
674132R1
|
[1] |
PIVOT
|
IH
TRUNNION ASSY, packer finger
|
| 27. |
87569
|
[1] |
LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive
|
PA
FITTING, 1/4-28 45 deg self tap. lub
|
| 28. |
667724R1
|
[1] |
ANCHOR
|
IH
packer brg support
|
| . . |
18494R1
|
[1] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
3/8 x 1 C-Z hex-hd mach Superseded by part number: 424-616
|
| 29. |
667725R1
|
[1] |
PLATE
|
IH
packer brg front support
|
| 30. |
667766R1
|
[1] |
GEAR
|
IH
PINION, packer drive upper
|
| 32. |
674147R1
|
[1] |
ANGLE
|
IH
SUPPORT, packer cover
|
| 33. |
674141R1
|
[1] |
ANCHOR
|
IH
packer link
|
| . . |
18784R1
|
[2] |
BOLT,Hex, 3/8"-16 x 2 3/4", G2
|
IH
3/8 x 2-3/4 C-Z hex-hd mach Superseded by part number: 88444
|
| 34. |
674135R2
|
[1] |
SUPPORT
|
IH
ASSY, packer relief
|
| . . |
18778R1
|
[3] |
SCREW,Hex, 3/8"-16 x 3/4", G2
|
IH
BOLT, 3/8 x 3/4 C-Z hex-hd mach Superseded by part number: 180120
|
| 35. |
202501C2
|
[1] |
ROD
|
IH
packer relief guide
|
| . . |
21713R1
|
[1] |
WASHER,25/32" x 1 3/4" x .120"
|
IH
25/32 x 1-3/4 x 11 ga C-Z Superseded by part number: 495-81044
|
| . . |
426897
|
[3] |
JAM NUT,Jam, 3/4"-10, G5
|
IH
3/4-10 znd hex jam Superseded by part number: 86632557
|
| 36. |
667741R1
|
[1] |
SHIELD
|
IH
packer pinion hay
|
| 37. |
674129R21
|
[1] |
BEARING ASSY
|
IH
ASSY, packer finger
|
| . . |
17601R1
|
[6] |
BOLT,Hex, 3/8"-16 x 2 3/4", G2
|
CAS
3/8 x 2-3/4 hex-hd mach. Superseded by part number: 24-644
|
| . . |
102635
|
[6] |
NUT,3/8"-16, G5
|
IH
Superseded by part number: 280136
|
| 38. |
667763R1
|
[1] |
STRAP
|
IH
packer brg adjusting
|
| 39. |
203004C1
|
[2] |
FINGER
|
IH
reversible packer
|
| 40. |
667864R91
|
[1] |
SPARE PART
|
IH
BEARING ASSY, packer drive upper Superseded by part number: 3101586R91
|
| 40. |
668043R91
|
[1] |
BEARING ASSY
|
IH
packer drive upper Superseded by part number: 571588R92
|
| . . |
18422R1
|
[1] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2
|
IH
BOLT, 3/8 x 1-3/4 C-Z sq-nk crg Superseded by part number: 411-628
|
| . . |
18479R1
|
[1] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2
|
IH
BOLT, 3/8 x 2 znd sq-nk crg Superseded by part number: 598812R1
|
| 42. |
668045R91
|
[1] |
BEARING ASSY
|
IH
packer drive upper less collar Superseded by part number: 571588R92
|
| 42. |
201087C91
|
[1] |
NO LONGER SERVICED
|
IH
BEARING ASSY, less collar Superseded by part number: 571588R92
|
| 43. |
517645R11
|
[1] |
COLLAR
|
IH
W/SET SCREW, brg locking Superseded by part number: 47577188
|
| 43. |
668046R11
|
[1] |
COLLAR
|
IH
W/SET SCREW, brg locking Superseded by part number: 87431215
|
| 43. |
201088C11
|
[1] |
COLLAR
|
IH
W/SET SCREW, brg locking Superseded by part number: 517645R11
|
| 44. |
667737R1
|
[1] |
SHEET
|
IH
tool box end, for 440 balers
|
| . . |
669637R1
|
[2] |
SELF-TAP SCREW
|
IH
5/16-18 x 1/2 znd hex-hd tap
|
| 45. |
674126R92
|
[1] |
DOOR
|
IH
ASSY, tool box, for 440 balers
|
| 46. |
667736R1
|
[1] |
HINGE
|
IH
tool box door, for 440 balers
|
| . . |
112419
|
[2] |
RIVET, .140 x 17/64 tinner
|
|
| . . |
26208R1
|
[2] |
SCREW,Hex Wash Hd, #10 x 3/8"
|
CAS
10-32 x 3/8 znd hex-washer-hd tap type D Superseded by part number: 281-6456
|
| 47. |
669184R1
|
[1] |
CLAMP
|
IH
LATCH, tool box door Superseded by part number: 1333780C1
|
| . . |
436730
|
[2] |
LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"
|
IH
SCREW, 10-24 x 3/8 C-Z slt-pan-hd mach Superseded by part number: 159908
|
| . . |
120361
|
[2] |
NUT,Hex Mach Screw, #10 - 24
|
IH
Superseded by part number: 87304
|
| . . |
120217
|
[2] |
LOCK WASHER,#10
|
IH
WASHER, LOCK, #10 Superseded by part number: 80684
|
| 48. |
667762R1
|
[1] |
SHAFT
|
IH
packer drive
|
| 52. |
667866R91
|
[1] |
FLANGED BEARING
|
IH
ASSY, packer drive long Superseded by part number: 546661R91
|
| 53. |
668325R1
|
[1] |
SPACER
|
IH
lower packer pinion
|
| 54. |
667761R1
|
[3] |
SHIM
|
IH
packer gear wear (as required)
|
| 55. |
667760R1
|
[1] |
STRIP
|
IH
packer gear wear
|
| 56. |
667769R1
|
[1] |
GEAR
|
IH
PINION, packer drive lower
|
| 57. |
667759R4
|
[1] |
GEAR
|
IH
packer drive lower Superseded by part number: 667759R5
|
| 58. |
203005C1
|
[1] |
FINGER
|
IH
reversible packer front
|
| . . |
191163
|
[3] |
BOLT,Hex, 3/8" - 16 x 4", Gr 5
|
IH
SCREW, 3/8-16 x 4 C-Z hex-hd cap Superseded by part number: 186285
|
| . . |
454497
|
[3] |
BOLT,Hex, 3/8" - 16 x 4 3/4", Gr 5
|
IH
SCREW, 3/8-16 x 4-3/4 C-Z hex-hd cap Superseded by part number: 86507010
|
| 59. |
668766R1
|
[1] |
RETAINER
|
IH
packer drive shaft lower key
|
| 60. |
656955R1
|
[1] |
STUD
|
IH
lower packer brg dowel
|
| . . |
138549
|
[1] |
LOCK WASHER,Int Tooth, 1/2"
|
IH
WASHER, LOCK, Int Tooth, 1/2" Superseded by part number: 20355
|
| 61. |
667438R1
|
[1] |
SHIM
|
IH
miter gear (as required)
|
| 62. |
671631R1
|
[1] |
RETAINER
|
IH
packer gear key
|
| . . |
426816
|
[1] |
SCREW,Hex Soc Hd, 1/4"-20 x 3/4"
|
IH
1/4-20 x 3/4 C-Z hex-soc-hd cap Superseded by part number: 61-32512
|
| . . |
492-11025
|
[1] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| . . |
21795R1
|
[2] |
WASHER,1.78" ID x 2.5" OD x 0.03" Thk
|
IH
1-25/32 x 2-1/4 x 22 ga C-Z (as required) Superseded by part number: 495-81005
|
| . . |
20705R1
|
[1] |
WASHER
|
IH
1-25/32 x 2-1/2 x 16 ga C-Z (as required) Superseded by part number: 87613203
|
| 63. |
Q81
|
[1] |
KEY,Gib, 3/8" Sq x 1 3/4"
|
IH
3/8 x 1-3/4 gib
|
| 64. |
452563
|
[1] |
KEY
|
IH
5/16 x 2-1/8 Woodruff Superseded by part number: 57388D
|
| 65. |
Q1497
|
[1] |
KEY,Gib, 3/8" Sq x 2"
|
IH
3/8 x 2 taper gib
|
| 66. |
663047R2
|
[1] |
PIN
|
IH
3/4 x 2-5/32 rod end
|
