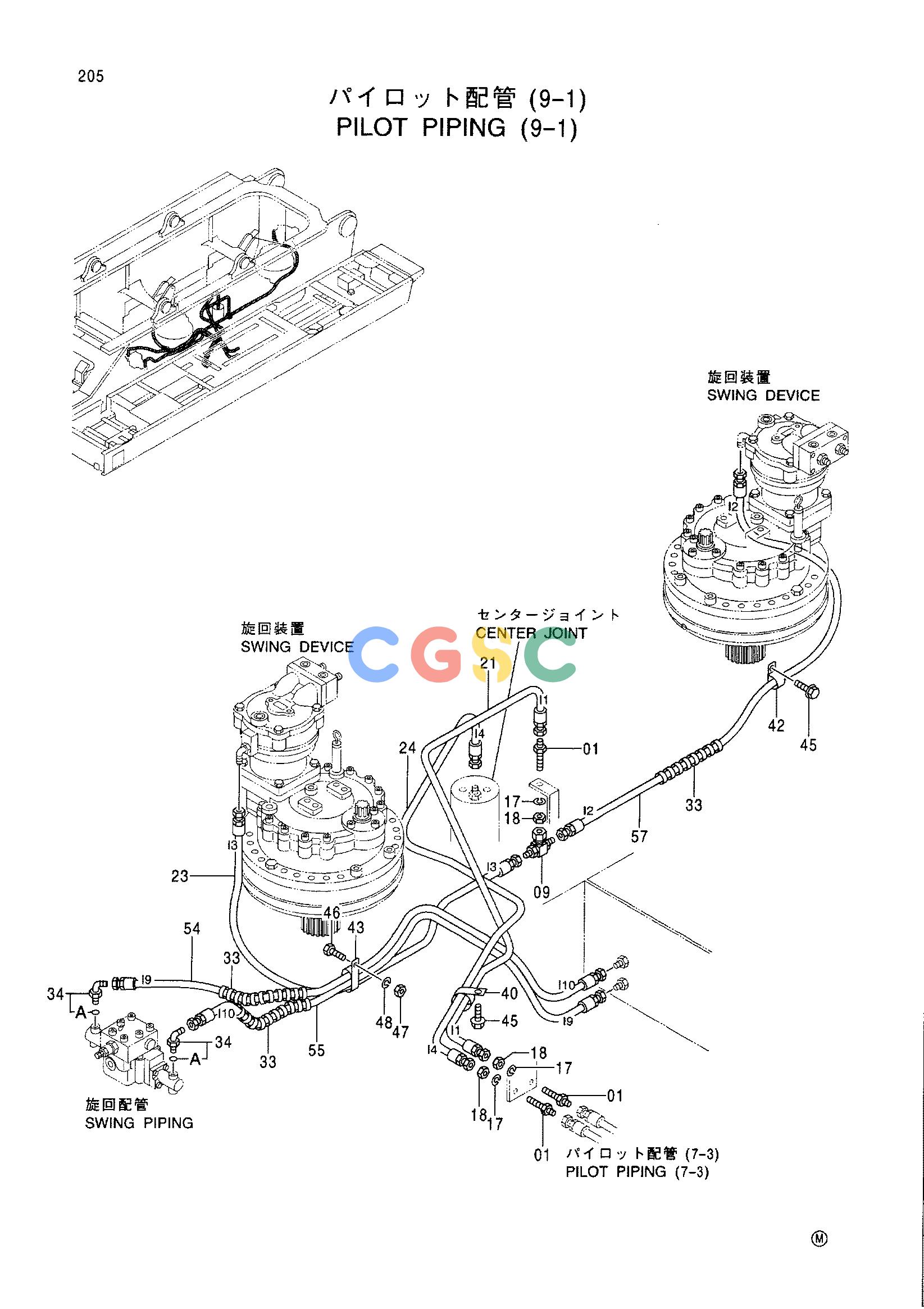

日立零件查询（CX1000）PILOT PIPING (9-1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
657 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4317426 | [3] | ADAPTER;S | |
| 09. | 4226236 | [1] | UNION;M | |
| 17. | A590916 | [3] | WASHER;SPRING | |
| 18. | 4202531 | [3] | NUT | |
| 21. | 4375297 | [1] | HOSE (i1) | |
| 23. | 4441885 | [1] | HOSE (i3) | |
| 24. | 4369302 | [1] | HOSE (i4) | |
| 33. | 4044420 | [5] | PROTECTOR | |
| 34. | 4156434 | [2] | ELBOW;S | |
| 34A. | 957366 | [1] | O-RING | |
| 40. | 4193848 | [1] | CLIP | |
| 42. | 4190253 | [1] | CLIP | |
| 43. | 4190264 | [1] | CLIP | |
| 45. | J011020 | [2] | BOLT;SEMS | |
| 46. | J901025 | [1] | BOLT | |
| 47. | J950010 | [1] | NUT | |
| 48. | A590910 | [1] | WASHER;SPRING | |
| 54. | 4406249 | [1] | HOSE | |
| 55. | 4375301 | [1] | HOSE | |
| 57. | 4375302 | [1] | HOSE | |
