斗山零件查询PILOT PIPING-ROTATING & TILTING ARTI.BOOM SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
868 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

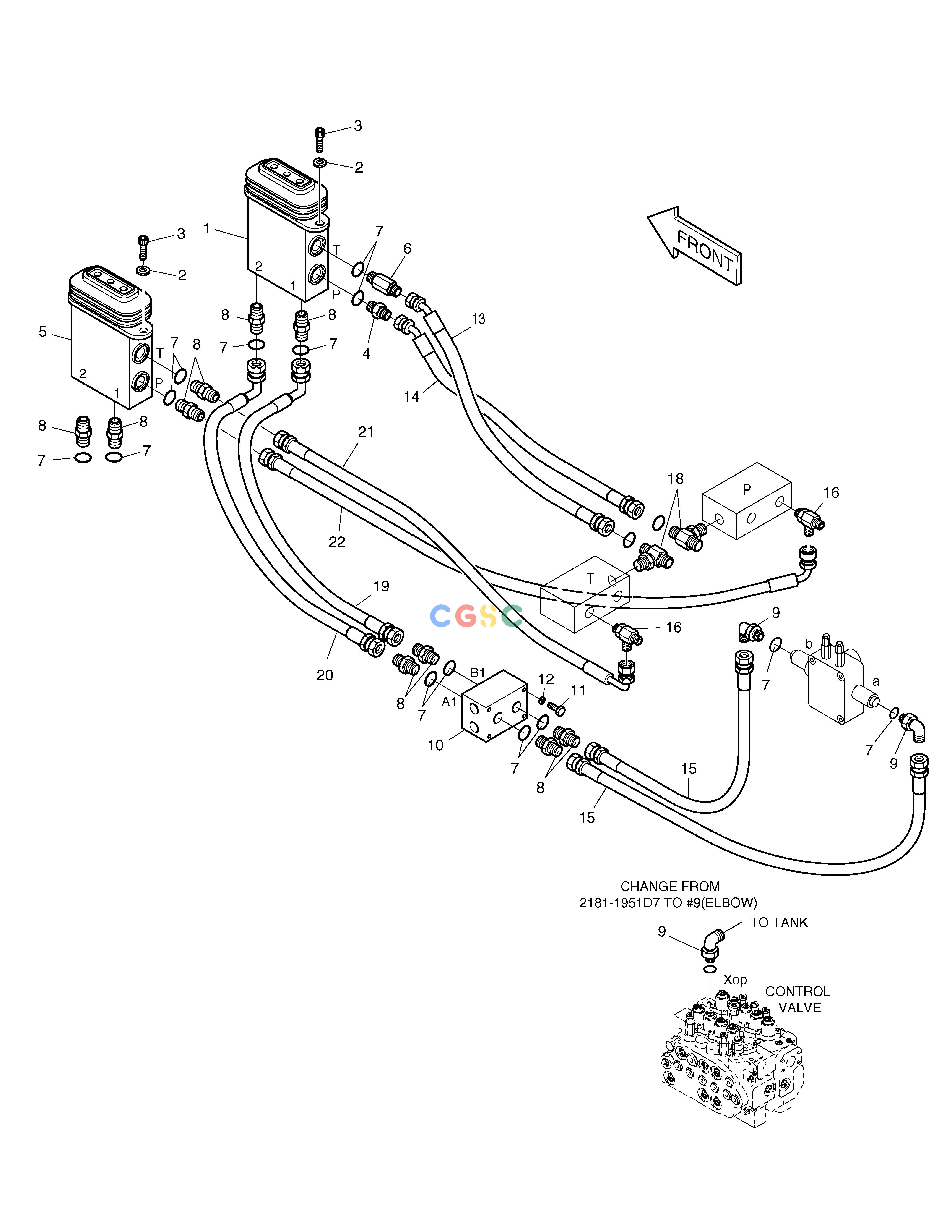

K1000784
|
[-] |
PILOT PIPING-ROTATING & TILTING ARTI.BOO
|
|
| 1. |
420-00347
|
[1] |
VALVE;PEDAL
|
|
| 10. |
2420-9158
|
[1] |
VALVE;SHUTTLE
|
|
| 11. |
S0556453
|
[2] |
BOLT
|
|
| 12. |
S5102503
|
[2] |
. WASHER
|
|
| 13. |
2184-1060D8
|
[1] |
HOSE PF3/8-400L
|
|
| 14. |
DS2054214
|
[1] |
HOSE PF3/8-330L
|
|
| 15. |
2184-1045D148
|
[2] |
HOSE PF1/4-1800L
|
|
| 16. |
2181-1951D19
|
[2] |
TEE
|
|
| 18. |
2181-2281D13
|
[2] |
TEE
|
|
| 19. |
2184-1046D32
|
[1] |
HOSE PF1/4-480L
|
|
| 2. |
S5110603
|
[4] |
WASHER
|
|
| 20. |
2184-1046D55
|
[1] |
HOSE PF1/4-530L
|
|
| 21. |
2184-1046D44
|
[1] |
HOSE PF1/4-460L
|
|
| 22. |
2184-1046D68
|
[1] |
HOSE PF1/4-600L
|
|
| 3. |
S2212266
|
[4] |
BOLT
|
|
| 4. |
2181-1126D85
|
[1] |
ADAPTER
|
|
| 5. |
420-00160
|
[1] |
VALVE;PEDAL
|
|
| 6. |
2181-1126D122
|
[1] |
ADAPTER PFO1/4-PF3/8
|
|
| 7. |
S8000111
|
[14] |
O-RING
|
|
| 8. |
2181-1126D14
|
[10] |
ADAPTER
|
|
| 9. |
2181-1702D4
|
[3] |
ELBOW
|
|
