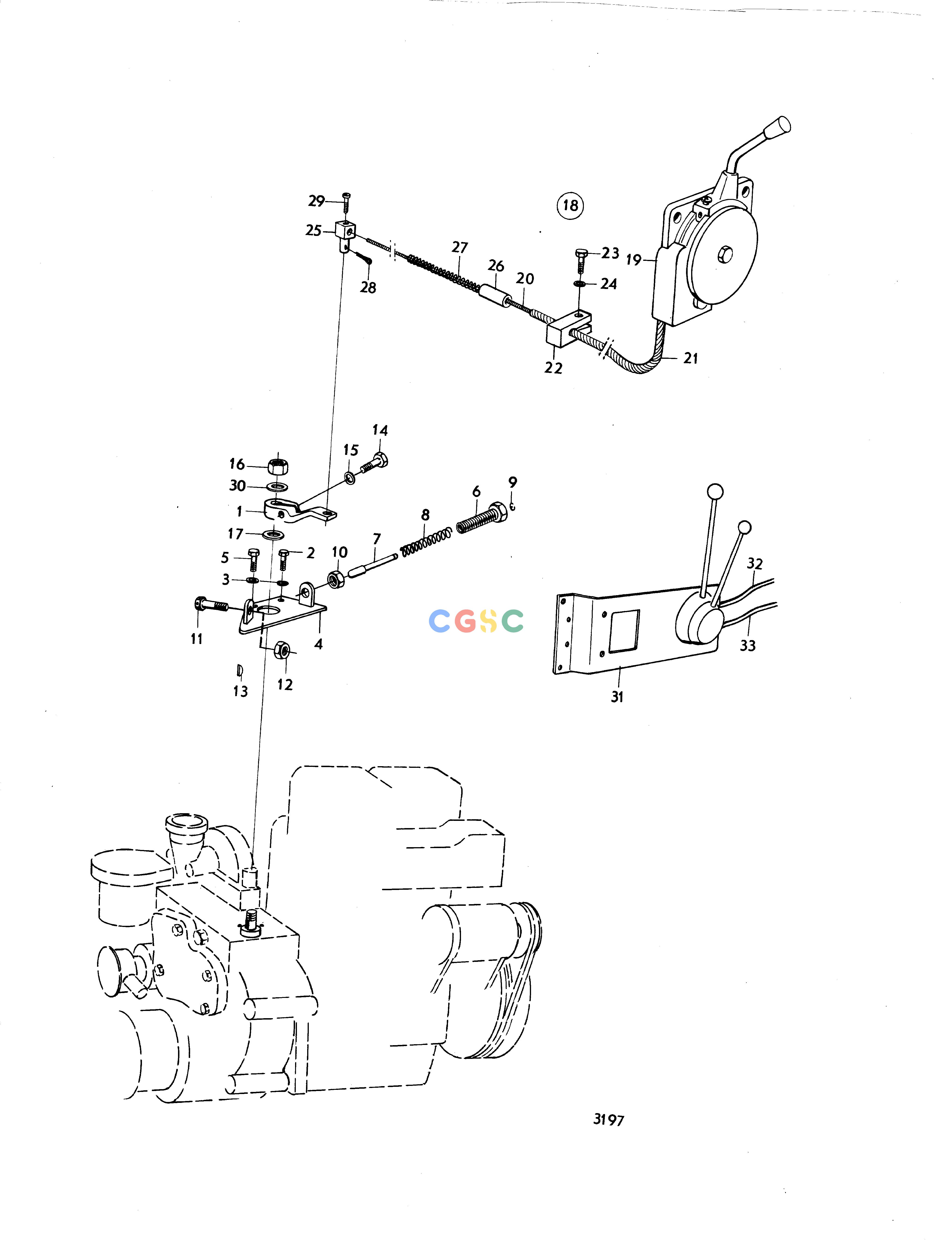

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BControlsControls, Engine with Reduction Reverse GearEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
398 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833273
|
[1] |
Lever
|
|
| 2. |
955270
|
[1] |
Hexagon screw
|
|
| 3. |
941906
|
[2] |
Spring washer
|
|
| 4. |
833072
|
[1] |
Bracket
|
|
| 5. |
955270
|
[1] |
Hexagon screw
|
|
| 6. |
833076
|
[1] |
Sleeve
|
|
| 7. |
833077
|
[1] |
Pin
|
|
| 8. |
833078
|
[1] |
Spring
|
|
| 9. |
951667
|
[1] |
E-circlip
|
|
| 10. |
955792
|
[1] |
Hexagon nut
|
|
| 11. |
944323
|
[1] |
Screw
|
|
| 12. |
955782
|
[1] |
Hexagon nut
|
|
| 13. |
910112
|
[1] |
Woodruff key
|
Early type
|
| 14. |
959617
|
[1] |
Screw
|
|
| 15. |
941907
|
[1] |
Spring washer
|
|
| 16. |
963107
|
[1] |
Lock nut
|
|
| 17. |
940280
|
[1] |
Spring washer
|
|
| 18. |
833083
|
[1] |
Throttle control
|
|
| 19. |
833226
|
[1] |
Throttle control
|
|
| 20. |
807590
|
[1] |
Cable
|
L=2200mm
|
| 21. |
807591
|
[1] |
Cable sheath
|
L=2000mm
|
| 22. |
803913
|
[1] |
Anchorage
|
|
| 23. |
955296
|
[1] |
Hexagon screw
|
|
| 24. |
941907
|
[1] |
Spring washer
|
|
| 25. |
3841580
|
[1] |
Cube
|
|
| 26. |
833549
|
[1] |
Spacer sleeve
|
|
| 27. |
833134
|
[1] |
Compression spring
|
|
| 28. |
907824
|
[1] |
Split pin
|
|
| 29. |
956047
|
[1] |
Cross recessed screw
|
|
| 30. |
955898
|
[1] |
Washer
|
|
| 31. |
833120
|
[1] |
Local part
|
See group 9
|
| 31. |
|
|
|
|
| 32. |
|
|
|
|
| 33. |
|
|
|
|
