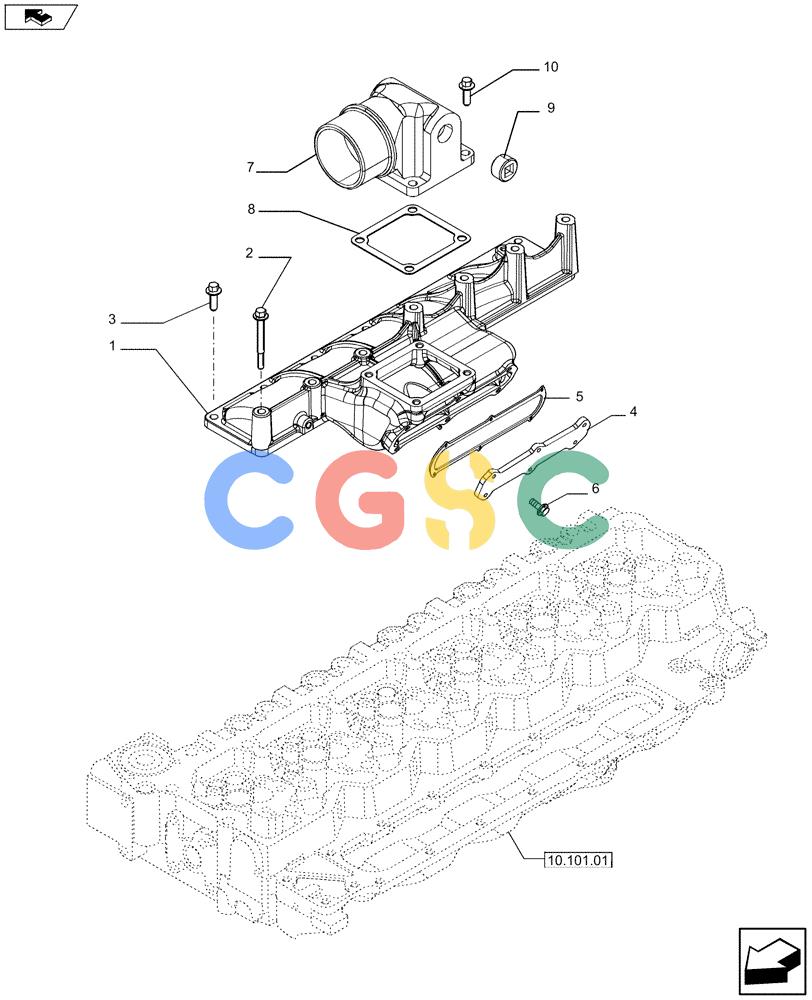

神钢零件查询(F4HFE613T A004) - ENGINE 504384900 - 84232924 (3/11-) (10.254.01) - INTAKE MANIFOLD - ENGINE AIR INTAKE (2854533 - 2854979) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
296 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2854534 | [1] | INLET MANIFOLD | TOR Superseded by part number: 504114393 |
| 2. | 4895432 | [3] | SCREW,M8 x 1.25 x 70mm | TOR |
| 3. | 4899039 | [7] | BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9 | TOR |
| 4. | 2854700 | [1] | COVER | TOR Superseded by part number: 504114351 |
| 5. | 2854701 | [1] | GASKET,0.8mm Thk | TOR Superseded by part number: 504114491 |
| 6. | 2854702 | [6] | SCREW,Hex Flg, M6 x 20mm | TOR Superseded by part number: 16585870 |
| 7. | 4895424 | [1] | INLET MANIFOLD | TOR |
| 8. | 4899921 | [1] | GASKET,1.2mm Thk | TOR |
| 9. | 4893036 | [2] | PIPE PLUG,3/4"-14 NPTF | TOR Superseded by part number: 2854866 |
| 10. | 16586424 | [4] | SCREW,M8 x 25mm | TOR Superseded by part number: 16673735 |
