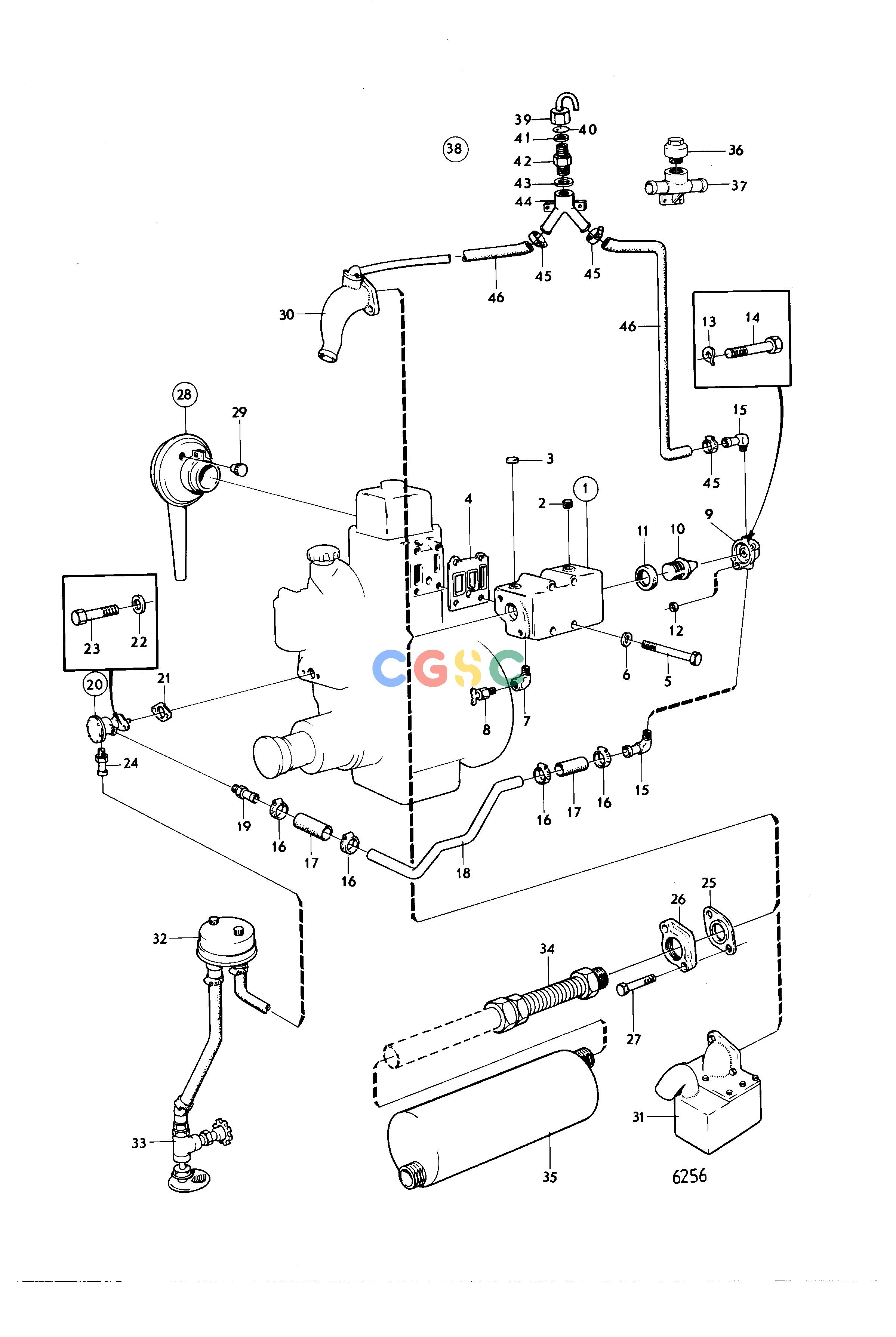

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BCooling SystemCooling System, Induction- and Exhaust ManifoldEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
327 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833331
|
[1] |
Exhaust pipe
|
|
| 2. |
190682
|
[1] |
Plug
|
|
| 3. |
192211
|
[1] |
Expansion plug
|
|
| 4. |
833598
|
[1] |
Gasket
|
|
| 5. |
940129
|
[4] |
Hexagon screw
|
|
| 6. |
955894
|
[4] |
Washer
|
|
| 7. |
807081
|
[1] |
Elbow nipple
|
|
| 8. |
807036
|
[1] |
Shut-off cock
|
|
| 9. |
897330
|
[1] |
Thermostat housing
|
|
| 10. |
875780
|
[1] |
Thermostat kit
|
77°C
|
| 11. |
416033
|
[1] |
Sealing ring
|
(418361)
|
| 12. |
955989
|
[1] |
O-ring
|
|
| 13. |
941907
|
[2] |
Spring washer
|
|
| 14. |
955299
|
[2] |
Hexagon screw
|
|
| 15. |
801197
|
[2] |
Hose attachment
|
|
| 16. |
943473
|
[4] |
Hose clamp
|
(951789)
|
| 17. |
952969
|
[1] |
Hose
|
L=2X70mm
|
| 18. |
833333
|
[1] |
Coolant pipe
|
|
| 19. |
803648
|
[1] |
Hose attachment
|
MO-20378
|
| 19. |
897391
|
[1] |
Hose attachment
|
MO 20379-
|
| 20. |
833415
|
[1] |
Water pump
|
MO 21210-
|
| 21. |
802551
|
[1] |
Gasket
|
|
| 22. |
11992
|
[2] |
Gasket
|
|
| 23. |
955296
|
[2] |
Hexagon screw
|
|
| 24. |
897391
|
[1] |
Hose attachment
|
|
| 25. |
803374
|
[1] |
Gasket
|
|
| 26. |
807050
|
[1] |
Exhaust pipe flange
|
|
| 27. |
955319
|
[2] |
Hexagon screw
|
|
| 28. |
833414
|
[1] |
Air filter
|
|
| 29. |
833546
|
[1] |
Plug
|
|
| 30. |
|
|
|
See group 9
|
| 31. |
|
|
|
See group 9
|
| 32. |
831733
|
[1] |
Strainer
|
See group 9
|
| 33. |
828242
|
[1] |
Coolant inlet
|
See group 9
|
| 34. |
833841
|
[1] |
Compensator
|
For silencer 833840.
|
| 35. |
833840
|
[1] |
Silencer, dry
|
|
| 36. |
|
|
|
Replaced by 828263, 828262., Early type
|
| 37. |
|
|
|
Replaced by 828263, 828262., Early type
|
| 38. |
828534
|
[1] |
Vacuum valve
|
(828263)
|
| 39. |
|
|
|
|
| 40. |
|
|
|
|
| 41. |
828424
|
[2] |
Gasket
|
|
| 42. |
|
|
|
|
| 43. |
947282
|
[2] |
Gasket
|
|
| 44. |
828262
|
[1] |
Hose connection
|
Late type
|
| 45. |
961666
|
[4] |
Hose clamp
|
|
| 46. |
13569
|
[1] |
Hose
|
|
