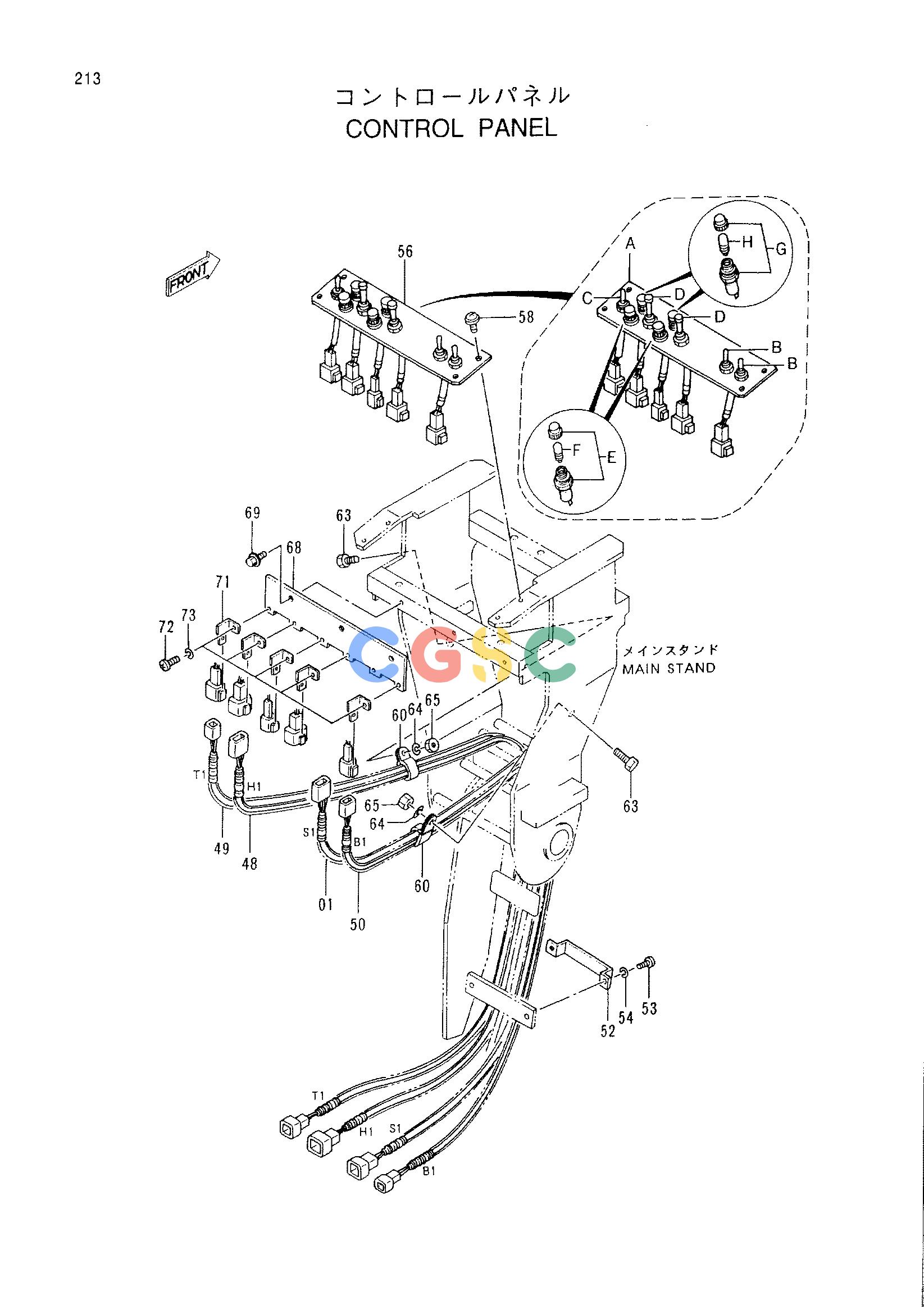

日立零件查询（CX1000）CONTROL PANEL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
893 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 8060957 | [1] | HARNESS;WIRE(S1) | |
| 48. | 8060958 | [1] | HARNESS;WIRE(H1) | |
| 49. | 8060959 | [1] | HARNESS;WIRE(T1) | |
| 50. | 8066119 | [1] | HARNESS;WIRE(B1) | |
| 52. | 4339552 | [1] | CLAMP | |
| 53. | M430610 | [2] | SCREW | |
| 54. | A590906 | [2] | WASHER;SPRING | |
| 56. | 7031600 | [1] | PANEL;CONTROL | |
| 56A. | 2039213 | [1] | PANEL | |
| 56B. | 4331444 | [2] | SWITCH(SPEED CONTROL) | |
| 56C. | 4331445 | [1] | SWITCH(TILT) | |
| 56D. | 4310217 | [2] | SWITCH(BRAKE) | |
| 56E. | 4324000 | [2] | HOLDER(RED) | |
| 56F. | 4324002 | [2] | LAMP(RED) | |
| 56G. | 4324001 | [2] | HOLDER(GREEN) | |
| 56H. | 4331446 | [2] | LAMP(WHITE) | |
| 58. | J680512 | [4] | SCREW;SEMS | |
| 60. | 4190292 | [2] | CLIP | |
| 63. | J901020 | [2] | BOLT | |
| 64. | A590910 | [2] | WASHER;SPRING | |
| 65. | J950010 | [2] | NUT | |
| 68. | 4341081 | [1] | PLATE | |
| 69. | J010614 | [3] | BOLT;SEMS | |
| 71. | 4252767 | [5] | BRACKET | |
| 72. | M430610 | [5] | SCREW | |
| 73. | A590906 | [5] | WASHER;SPRING | |
