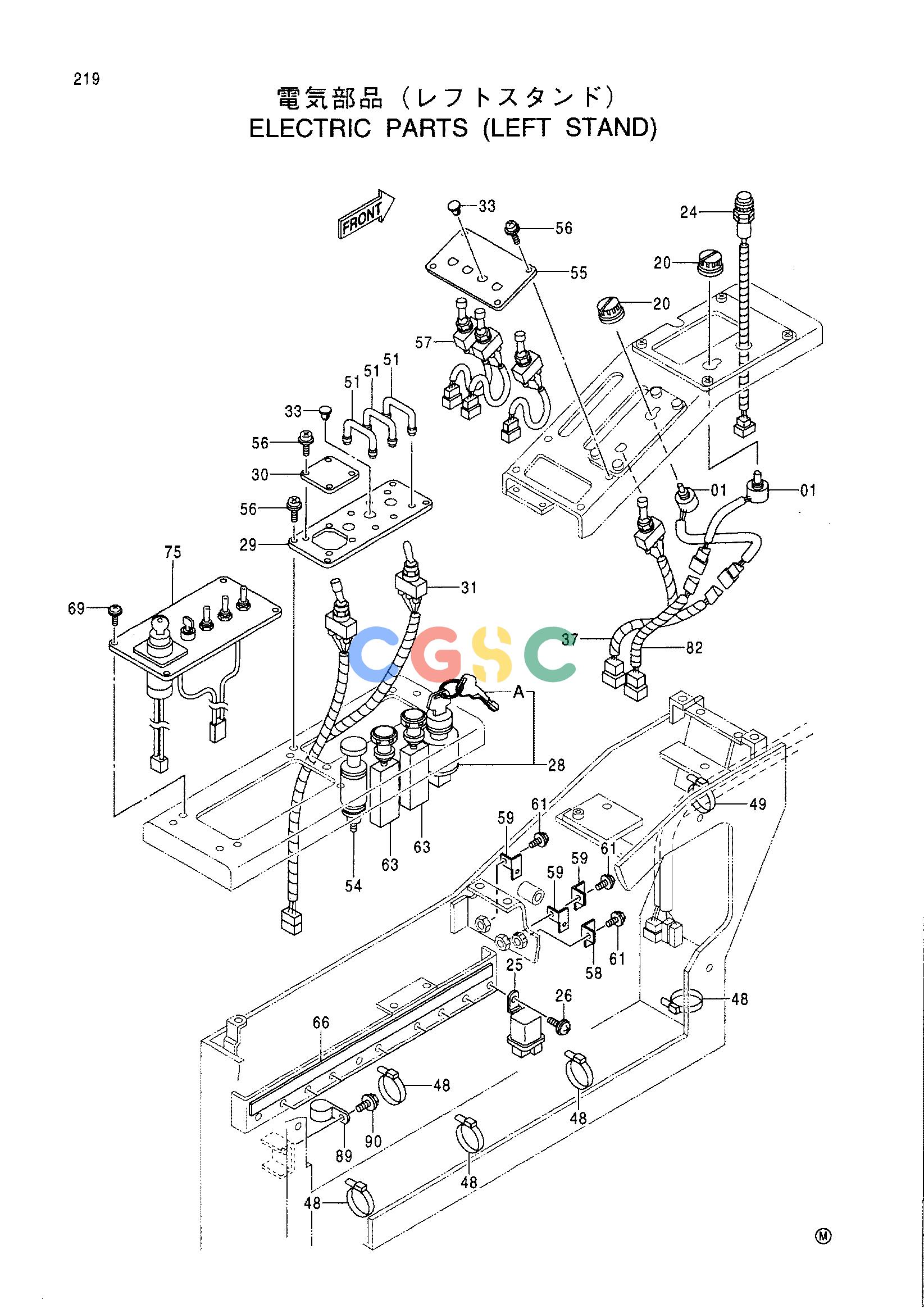

日立零件查询（CX1000）ELECTRIC PARTS (LEFT STAND) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
549 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4371245 | [2] | SENSOR;ANGLE | |
| 20. | 4370931 | [2] | KNOB | |
| 24. | 4388669 | [1] | RAMP | |
| 25. | 4251588 | [8] | RELAY | |
| 26. | J460616 | [8] | SCREW;SEMS | |
| 28. | +++++++ | [1] | SWITCH;START | |
| 28A. | +++++++ | [1] | KEY(1=2 PIECES) | |
| 29. | 7034880 | [1] | COVER | |
| 30. | 4403706 | [1] | COVER | |
| 31. | 8085261 | [1] | SWITCH | |
| 33. | 4294437 | [2] | CAP | |
| 37. | 8072768 | [1] | SWITCH | |
| 48. | 4055311 | [5] | CLIP;BAND | |
| 49. | 4055312 | [2] | CLIP;BAND | |
| 51. | 4370932 | [3] | HANDLE | |
| 54. | 4357862 | [1] | LIGHTER | |
| 55. | 3078992 | [1] | PANEL | |
| 56. | J680412 | [12] | SCREW;SEMS | |
| 57. | 4372201 | [3] | SWITCH | |
| 58. | 4252767 | [2] | BRACKET | |
| 59. | 4336874 | [2] | BRACKET | |
| 61. | J020614 | [3] | BOLT;SEMS | |
| 63. | 4239945 | [2] | SWITCH | |
| 66. | 3084927 | [1] | NAME-PLATE | |
| 69. | J680412 | [4] | SCREW;SEMS | |
| 75. | 9163865 | [1] | PANEL;SWITCH | |
| 82. | 8066584 | [1] | HARNESS;WIRE | |
| 89. | 4190273 | [1] | CLIP | |
| 90. | J021025 | [1] | BOLT;SEMS | |
