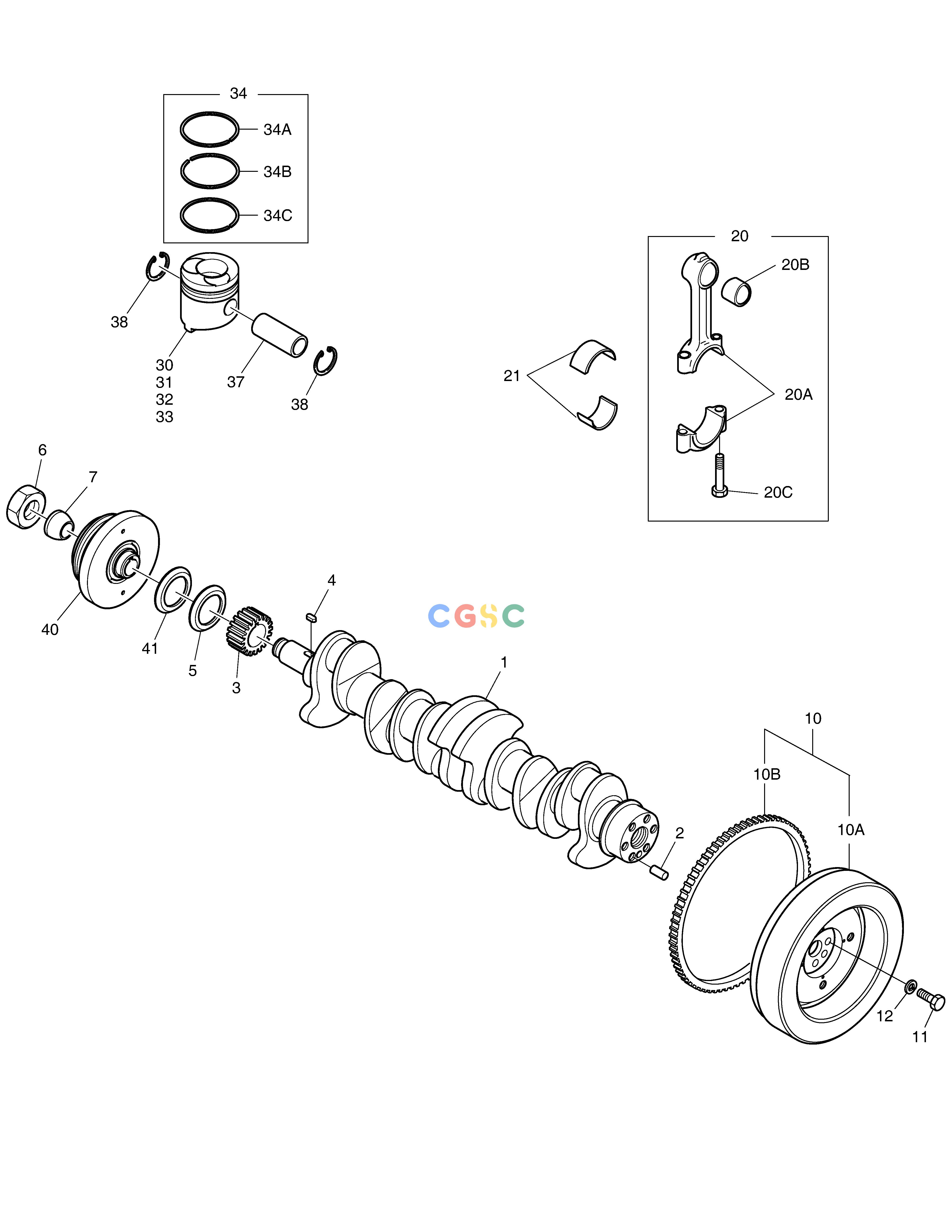

斗山零件查询CRANK SHAFT SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
165 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.02101-0045A
|
[1] |
.. SHAFT;CRANK
|
|
| 10. |
65.02301-5094
|
[1] |
FLYWHEEL ASS'Y
|
|
| 10A. |
65.02301-0086
|
[1] |
FLY WHEEL
|
|
| 10B. |
65.02310-0006
|
[1] |
. GEAR;RING
|
|
| 11. |
06.01494-4506
|
[6] |
BOLT M16X1.5X35
|
|
| 12. |
06.16731-2111
|
[6] |
WASHER;SPRING
|
|
| 2. |
06.22022-3212
|
[1] |
.. PIN;PARALLEL
|
|
| 20. |
65.02401-6021
|
[6] |
CONNECTING ROD ASS`Y
|
150121-00270
|
| 20. |
150121-00270
|
[6] |
ROD ASSY,CONNECTING
|
150121-00270A
|
| 20. |
150121-00270A
|
[6] |
. ROD ASSY,CONNECTING
|
|
| 20A. |
65.02401-0163D
|
[1] |
. ROD;CONNECTING
|
|
| 20A. |
150121-00319
|
[1] |
.. ROD,CONNECTING
|
|
| 20B. |
65.02405-0006
|
[1] |
.. BUSH
|
|
| 20C. |
65.02411-0006A
|
[2] |
.. BOLT
|
|
| 21. |
65.02410-6083B
|
[6] |
. METAL;CON-ROD STD
|
|
| 21. |
65.02410-6124B
|
[6] |
. METAL;CON-ROD 0.125mm
|
|
| 21. |
65.02410-6125B
|
[6] |
. METAL;CON-ROD 0.25mm
|
|
| 21. |
65.02410-6126B
|
[6] |
. METAL;CON-ROD 0.5mm
|
|
| 3. |
65.02115-0009
|
[1] |
. GEAR;CRANK SHAFT
|
|
| 30. |
65.02501-0440
|
[6] |
PISTON(ALTV.)
|
|
| 31. |
65.02501-0416
|
[6] |
PISTON(ALTV.)
|
|
| 31. |
65.02501-0443
|
[6] |
PISTON;(ALTV.-2)
|
|
| 32. |
65.02501-0417
|
[6] |
PISTON-1;A GRADE
|
|
| 32. |
65.02501-0444
|
[6] |
PISTON-2;A GRADE
|
|
| 33. |
65.02501-0418
|
[6] |
PISTON-1;B GRADE
|
|
| 33. |
65.02501-0445
|
[6] |
PISTON-2;B GRADE
|
|
| 34. |
65.02503-8058
|
[1] |
PISTON RING KIT
|
|
| 34A. |
65.02503-0137
|
[6] |
RING;TOP
|
|
| 34B. |
401004-00038
|
[6] |
. RING,SECOND
|
|
| 34C. |
65.02503-0114
|
[6] |
. RING;OIL
|
|
| 37. |
65.02502-0082A
|
[6] |
. PIN;PISTON
|
|
| 38. |
65.90815-0007
|
[12] |
. RING;RETAINING
|
|
| 4. |
65.91501-0006
|
[1] |
. KEY;SLIDING
|
|
| 40. |
65.02601-5019
|
[1] |
. PULLEY;DAMPER
|
|
| 41. |
65.02122-0001
|
[1] |
. COVER;DUST
|
|
| 5. |
65.02120-0002
|
[1] |
RING;OIL THROWER
|
|
| 6. |
65.90501-0006
|
[1] |
NUT
|
|
| 7. |
65.93020-0015
|
[1] |
BUSH;TAPER
|
|
