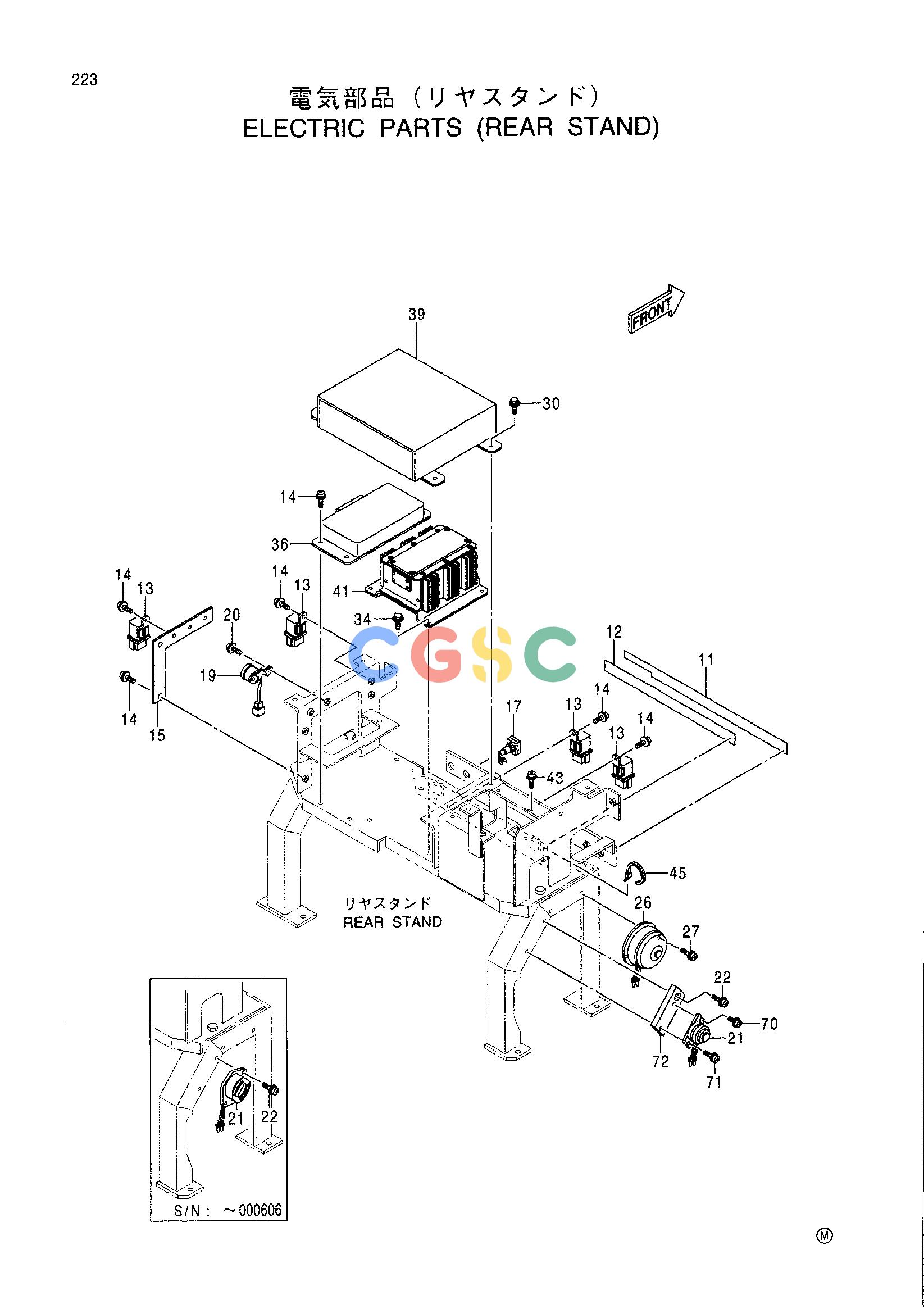

日立零件查询（CX1000）ELECTRIC PARTS (REAR STAND) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
209 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 11. | 3070773 | [1] | NAME-PLATE | |
| 11. | 3096070 | [1] | NAME-PLATE | |
| 12. | 3070774 | [1] | NAME-PLATE | |
| 13. | 4251588 | [16] | RELAY | |
| 14. | J460616 | [22] | SCREW;SEMS | |
| 15. | 4391412 | [1] | SEAT;SCREW | |
| 17. | 4335063 | [1] | BUZZER | |
| 19. | 4258403 | [1] | BUZZER | |
| 20. | J460516 | [2] | SCREW;SEMS | |
| 21. | 950703 | [1] | BUZZER | T4471322 |
| 21. | 950703 | [1] | BUZZER | J460412 |
| 21. | 950703 | [1] | BUZZER | J460425 |
| 21. | 950703 | [1] | BUZZER | 4471748 |
| 21. | 4471322 | [1] | BUZZER | |
| 22. | J450416 | [2] | SCREW;SEMS | YJ450416 |
| 22. | J450416 | [1] | SCREW;SEMS | |
| 26. | 947457 | [1] | BELL | |
| 27. | J450310 | [2] | SCREW;SEMS | |
| 30. | J011025 | [4] | BOLT;SEMS | |
| 34. | J010614 | [4] | BOLT;SEMS | |
| 36. | 4325825 | [1] | UNIT;CONTROL | |
| 39. | 9201545 | [1] | CONTROLLER (HCK-2) | |
| 39. | 9201545 | [1] | CONTROLLER (HCK-2) | |
| 39. | 9201545 | [1] | CONTROLLER (HCK-2) | |
| 39. | 9201545 | [1] | CONTROLLER (HCK-2) | |
| 39. | 9216981 | [1] | CONTROLLER (HCK-2) | |
| 39. | 9216981 | [1] | CONTROLLER (HCK-2) | |
| 39. | 9216981 | [1] | CONTROLLER (HCK-2) | |
| 41. | 9150215 | [1] | CONTROLLER (HCSM-2) | |
| 43. | J450625 | [4] | SCREW;SEMS | |
| 45. | 4254600 | [2] | CLIP | |
| 70. | J460412 | [1] | SCREW;SEMS | |
| 71. | J460425 | [1] | SCREW;SEMS | |
| 72. | 4471748 | [1] | SEAT | |
