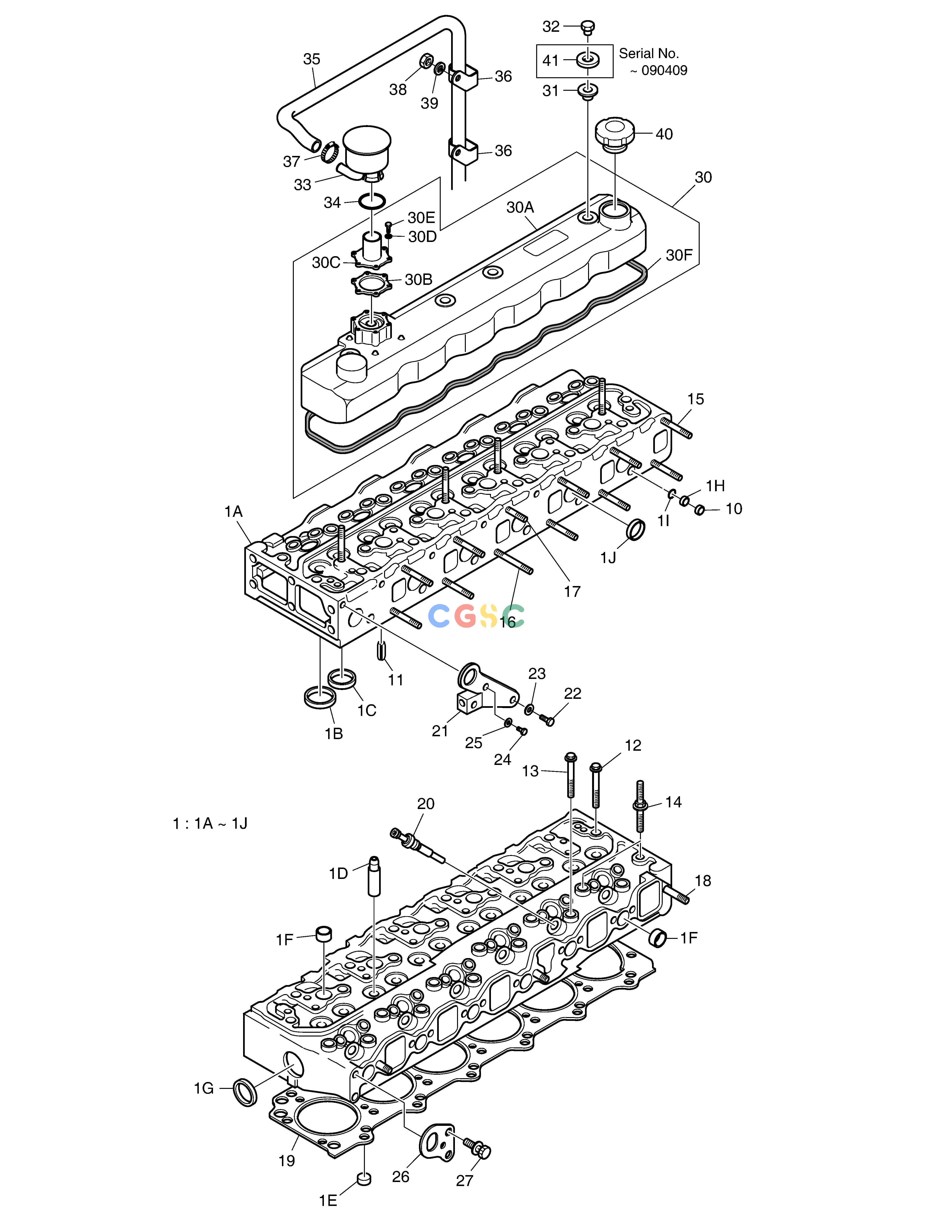

斗山零件查询CYLINDER HEAD SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
1006 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.03101-6069C
|
[1] |
CYLINDER HEAD ASS'Y
|
65.03101-6069D
|
| 1. |
65.03101-6069D
|
[1] |
|
150113-00047
|
| 1. |
150113-00047
|
[1] |
HEAD ASSY,CYLINDER
|
|
| 10. |
65.90302-0017
|
[6] |
PLUG;WATER JET CORE
|
|
| 11. |
65.91710-0004
|
[2] |
RING;STOPPER
|
|
| 12. |
65.90021-0002
|
[18] |
BOLT;CYLINDER HEAD
|
|
| 13. |
65.90021-0003
|
[6] |
BOLT;CYLINDER HEAD
|
|
| 14. |
65.90021-0004
|
[2] |
BOLT;CYLINDER HEAD
|
|
| 15. |
06.06125-8717
|
[10] |
BOLT;STUD
|
|
| 16. |
06.06125-8723
|
[1] |
BOLT;STUD M8X110
|
|
| 17. |
06.06125-8709
|
[1] |
BOLT;STUD M8X35
|
|
| 18. |
06.06225-0706
|
[3] |
BOLT;STUD M8X25
|
|
| 19. |
65.03901-0066A
|
[1] |
GASKET;CYLINDER HEAD
|
400603-00071
|
| 19. |
400603-00071
|
[1] |
GASKET KIT,CYLINDER HEAD
|
|
| 1A. |
65.03101-1038E
|
[1] |
HEAD;CYLINDER
|
|
| 1A. |
65.03101-1038F
|
[1] |
. HEAD;CYLINDER
|
|
| 1B. |
65.03203-1053
|
[6] |
. SEAT;INLET VALVE
|
|
| 1C. |
65.03203-1054
|
[6] |
. SEAT;EXHAUST VALVE
|
|
| 1D. |
65.03201-1013A
|
[12] |
GUIDE;VALVE
|
65.03201-1063
|
| 1D. |
65.03201-1063
|
[12] |
. GUIDE,VALVE
|
|
| 1E. |
65.90302-0045
|
[3] |
. PLUG;CORE
|
|
| 1F. |
65.90302-0019B
|
[11] |
. PLUG;CORE
|
|
| 1G. |
65.90302-0015
|
[1] |
. PLUG;CORE(NEAR FACE)
|
|
| 1H. |
65.90302-0027
|
[6] |
. PLUG;CORE
|
|
| 1I. |
65.90302-0011
|
[6] |
. PLUG;DRILLED PASS
|
|
| 1J. |
65.90302-0030
|
[6] |
. PLUG;CORE(EXHAUST MAIN)
|
|
| 20. |
65.26815-0002
|
[6] |
PLUG;DUMMY
|
65.26815-0004
|
| 20. |
65.26815-0004
|
[6] |
PLUG;DUMMY
|
|
| 21. |
65.19202-5005
|
[1] |
HOOK;LIFTING
|
|
| 22. |
06.01733-4409
|
[1] |
BOLT;HEX M14X1.5X25
|
|
| 23. |
06.16731-2110
|
[1] |
WASHER;SPRING
|
|
| 24. |
06.01733-4208
|
[1] |
BOLT M10X1.25X22
|
|
| 25. |
06.16731-2108
|
[1] |
WASHER;SPRING
|
|
| 26. |
65.19202-0005
|
[1] |
HOOK;LIFTING
|
|
| 27. |
06.01943-3213
|
[2] |
BOLT ASS`Y M10X1.25X20
|
|
| 30. |
65.03401-6097
|
[1] |
CYLINDER HEAD COVER ASS'Y
|
150106-00006
|
| 30. |
150106-00006
|
[1] |
CYLINDER HEAD COVER ASS'Y
|
|
| 30A. |
65.03401-6094
|
[1] |
COVER;CYL. HEAD
|
65.03401-6094A
|
| 30A. |
65.03401-6094A
|
[1] |
COVER;CYL. HEAD
|
|
| 30B. |
65.03903-0001
|
[1] |
. PACKING;BREATHER PIPE
|
|
| 30C. |
65.01801-0011
|
[1] |
. CASE;BREATHER
|
|
| 30D. |
06.16731-2104
|
[6] |
. WASHER;SPRING
|
|
| 30E. |
06.04190-8808
|
[6] |
. BOLT M5X16
|
|
| 30F. |
65.03905-0002B
|
[1] |
GASKET;CYLINDER HEAD COVER
|
400603-00022
|
| 30F. |
400603-00022
|
[1] |
GASKET;CYLINDER HEAD COVER
|
|
| 31. |
65.03905-0023A
|
[4] |
GASKET;CYLINDER HEAD COVER MOUNTIN
|
|
| 32. |
65.90501-0028
|
[4] |
NUT;CYLINDER HEAD COVER
|
|
| 33. |
65.01801-5035A
|
[1] |
BREATHER PIPE ASS`Y
|
|
| 34. |
65.96501-0032B
|
[1] |
O-RING;BREATHER
|
|
| 35. |
65.96301-0417
|
[1] |
HOSE;RUBBER
|
65.96301-0417A
|
| 35. |
65.96301-0417A
|
[1] |
|
|
| 36. |
65.97401-0179
|
[2] |
. CLIP;WATER HOSE
|
|
| 37. |
06.67020-0105
|
[1] |
CLAMP
|
|
| 38. |
06.11063-8214
|
[1] |
. NUT
|
|
| 39. |
06.16731-2107
|
[1] |
WASHER
|
|
| 40. |
65.01810-5011
|
[1] |
CAP;OIL FILLER
|
|
| 41. |
65.90701-0202
|
[4] |
WASHER;PLATE
|
|
