卡特零件查询（730） 501-4456: SUSPENSION GP-SEAT
广数供应链运营团队, 15 02月, 2025，浏览：
470 次

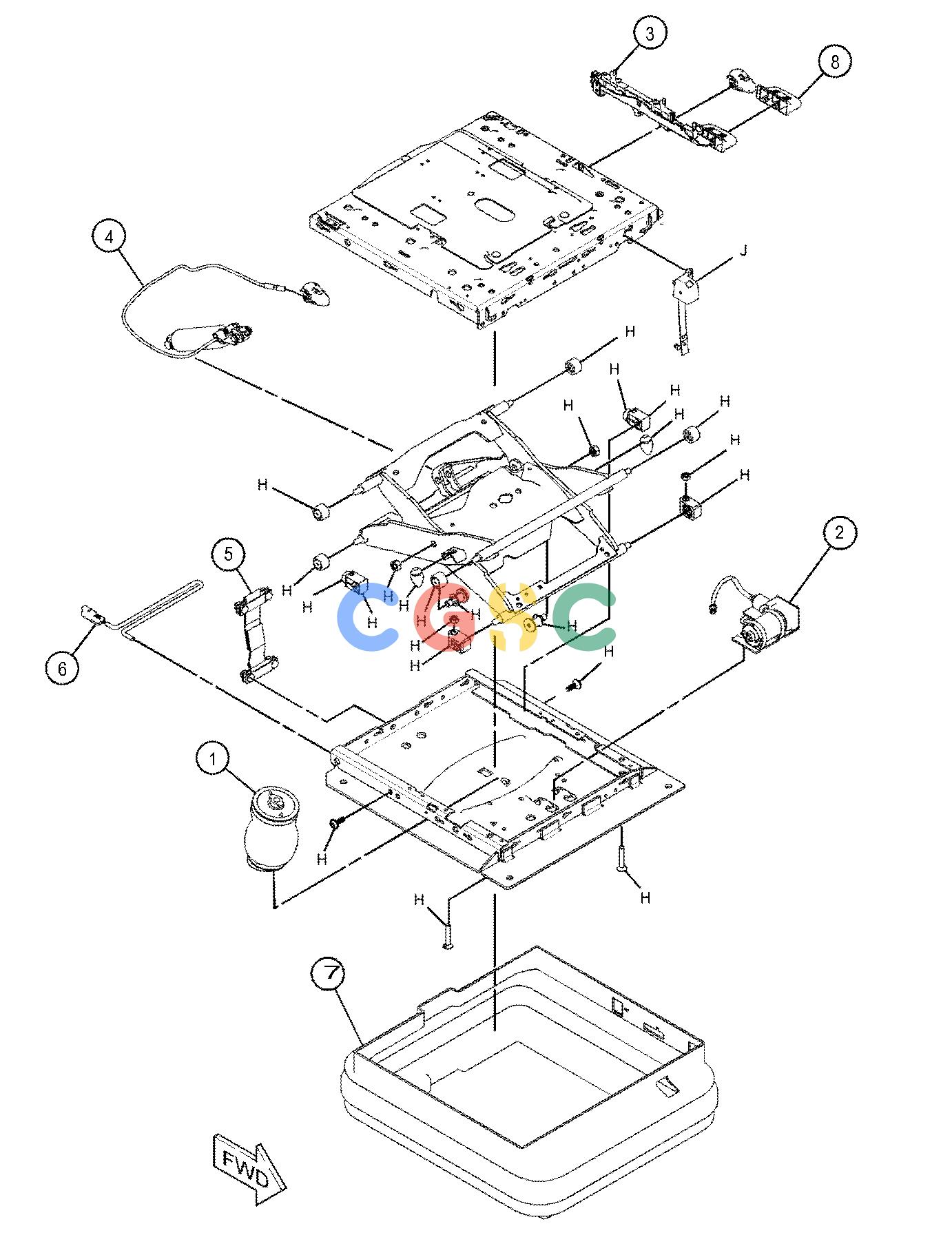

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 304-5418 | [1] | KIT-GAS SPRING(SUSPENSION SEAT) | |
| | | | (INCLUDES SPRING-GAS, SCREW & PLUGS) |
| 2. | 513-9148 | [1] | KIT-COMPRESSOR | |
| | | | (INCLUDES STRAP-CABLES, CLIP-HOSE, COMPRESSOR, HOSE AS & PAD) |
| 3. | 513-9151 | [1] | KIT-SEAT FRAME | |
| | | | (INCLUDES KNOB, RIVETS, SCREWS, SUPPORT AS, SWITCH AS & VALVE) |
| 4. | 513-9153 | [1] | KIT-DAMPER | |
| | | | (INCLUDES BEARINGS, CABLE, CLIPS, CYLINDER, FORT, FIXING, INDICATOR AS, PINS, PISTON AS, SPRING & KNOB) |
| | | | (ALSO INCLUDES PARTS MARKED 'J'IN GRAPHICS) |
| 5. | 513-9156 | [1] | KIT-TETHER | |
| | | | (INCLUDES BRACKET ASSEMBLIES, CLAMPS, NUTS & STRAPS) |
| 6. | 513-9158 | [1] | HARNESS AS-WIRING(KIT, SEAT) | |
| 7. | 513-9163 | [1] | KIT-BOOT | |
| | | | (INCLUDES BOOT) |
| 8. | 513-9161 | [1] | KIT-KNOB | |
| | | | (INCLUDES CLAMP, CABLE, SCREWS, KNOBS & SUSPENSION GROUPS) |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 513-9160 | [1] | KIT-BEARING | |
| | | | (INCLUDES NUTS, BLOCKS, BOLTS, BUMPERS, BUSING, ROLLERS, SCREWS, STOPPER ASSEMBLIES & WASHERS) |
| | | | (ALSO INCLUDES PARTS MARKED 'H'IN GRAPHICS) |
