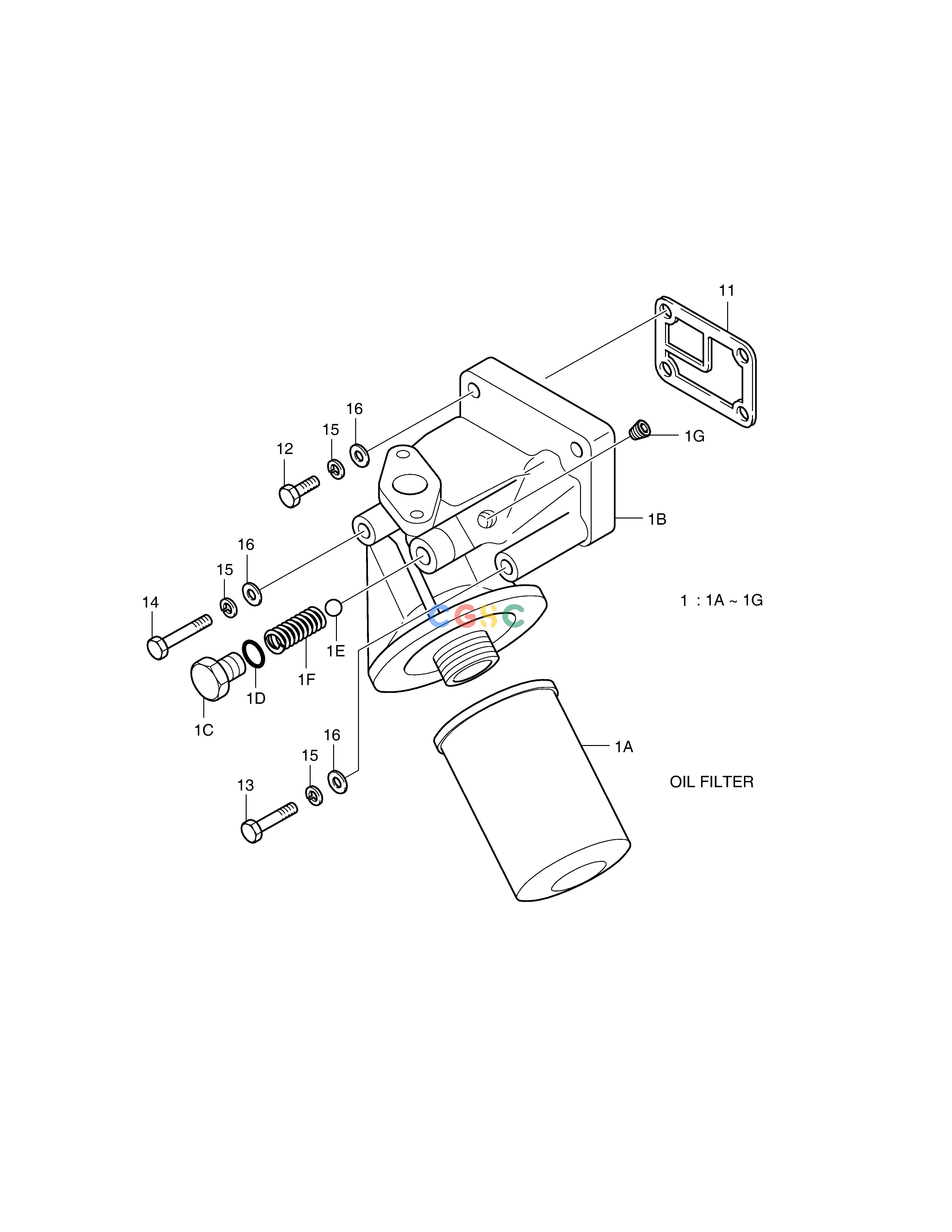

斗山零件查询OIL FILTER SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
266 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.05501-7065D
|
[1] |
OIL FILTER ASS'Y
|
|
| 11. |
65.05901C0004
|
[1] |
GASKET;OIL FILTER
|
|
| 12. |
06.01493-4206
|
[2] |
BOLT M10X1.25X35
|
|
| 13. |
06.01493-4214
|
[1] |
BOLT M10X1.25X75
|
|
| 14. |
65.90001-0162
|
[1] |
BOLT M10X1.25X105
|
|
| 15. |
06.16731-2108
|
[4] |
WASHER;SPRING
|
|
| 16. |
06.15010-2312
|
[4] |
WASHER;PLAIN
|
|
| 1A. |
65.05510-5021B
|
[1] |
. ELEMENT;OIL FILTER
|
|
| 1B. |
65.05503-0033B
|
[1] |
. HEAD;OIL FILTER
|
|
| 1C. |
65.90310-0036A
|
[1] |
. PLUG;SCREW
|
|
| 1D. |
06.56190-0709
|
[1] |
SEAL;RING
|
|
| 1E. |
06.31641-0222
|
[1] |
. BALL;STEEL
|
|
| 1F. |
65.97601-0045
|
[1] |
. SPRING;COMPRESS
|
|
| 1G. |
65.90350-0005
|
[1] |
. SCREW;PLUG PT 3/8
|
|
