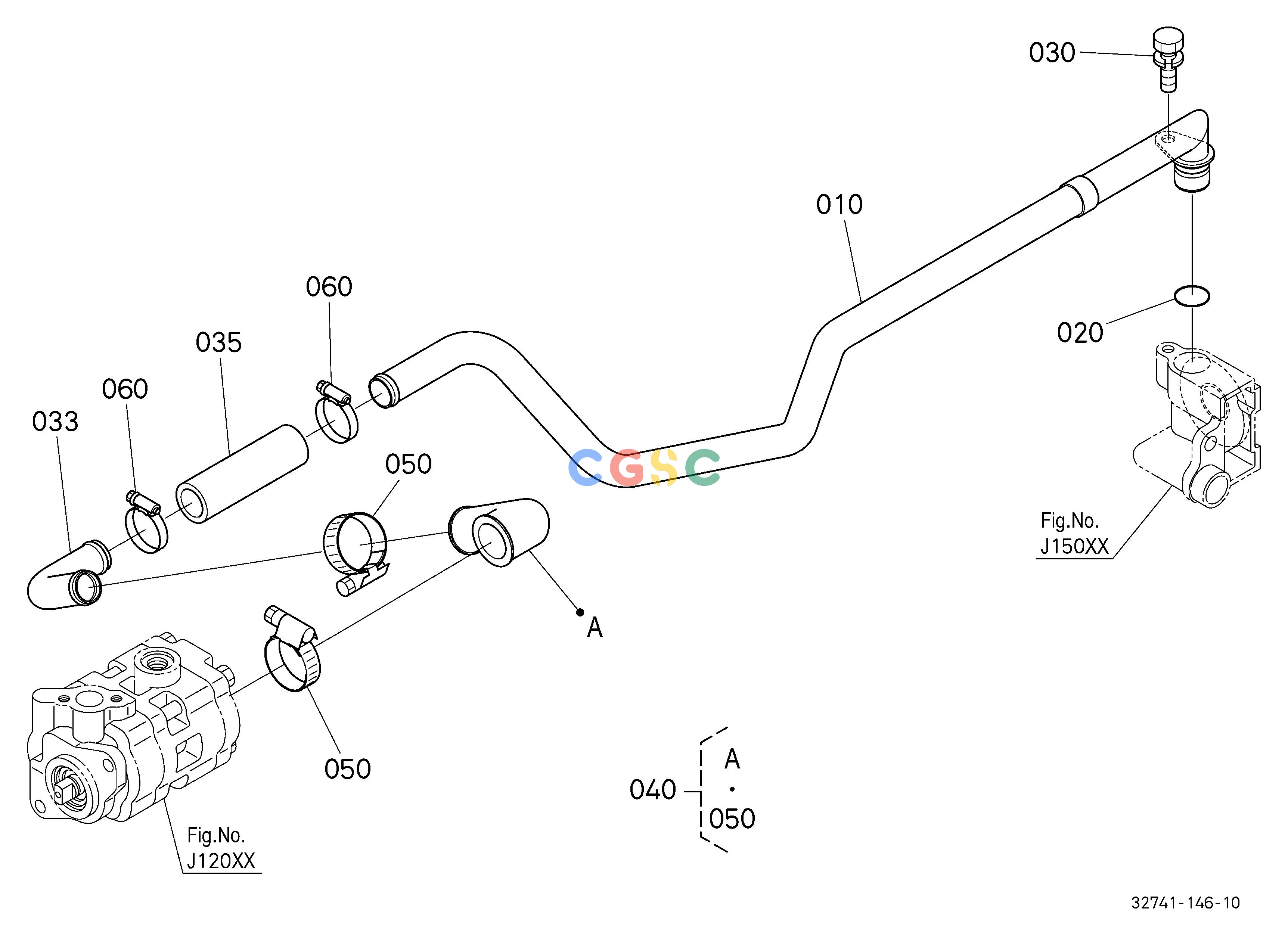

久保田零件查询J20101 HYDRAULIC OIL LINE (SUCTION) ## S.No.57653ï½ S.No.;57653ï½ HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
389 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3274139113
|
[1] |
PIPE,SUCTION
|
0.8690(lbs); 0.395
|
| 020. |
0481600200
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 030. |
0112350816
|
[1] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 033. |
3274139120
|
[1] |
PIPE(SUCTION2)
|
0.1606(lbs); 0.073
|
| 035. |
3274139170
|
[1] |
HOSE(SUCTION2)
|
0.0924(lbs); 0.042
|
| 040. |
3274197902
|
[1] |
HOSE,ASSY(SUCTION)
|
0.2178(lbs); 0.099
|
| 050. |
6795536230
|
[2] |
CLAMP
|
0.0506(lbs); 0.023
|
| 060. |
6795536230
|
[2] |
CLAMP
|
0.0506(lbs); 0.023
|
