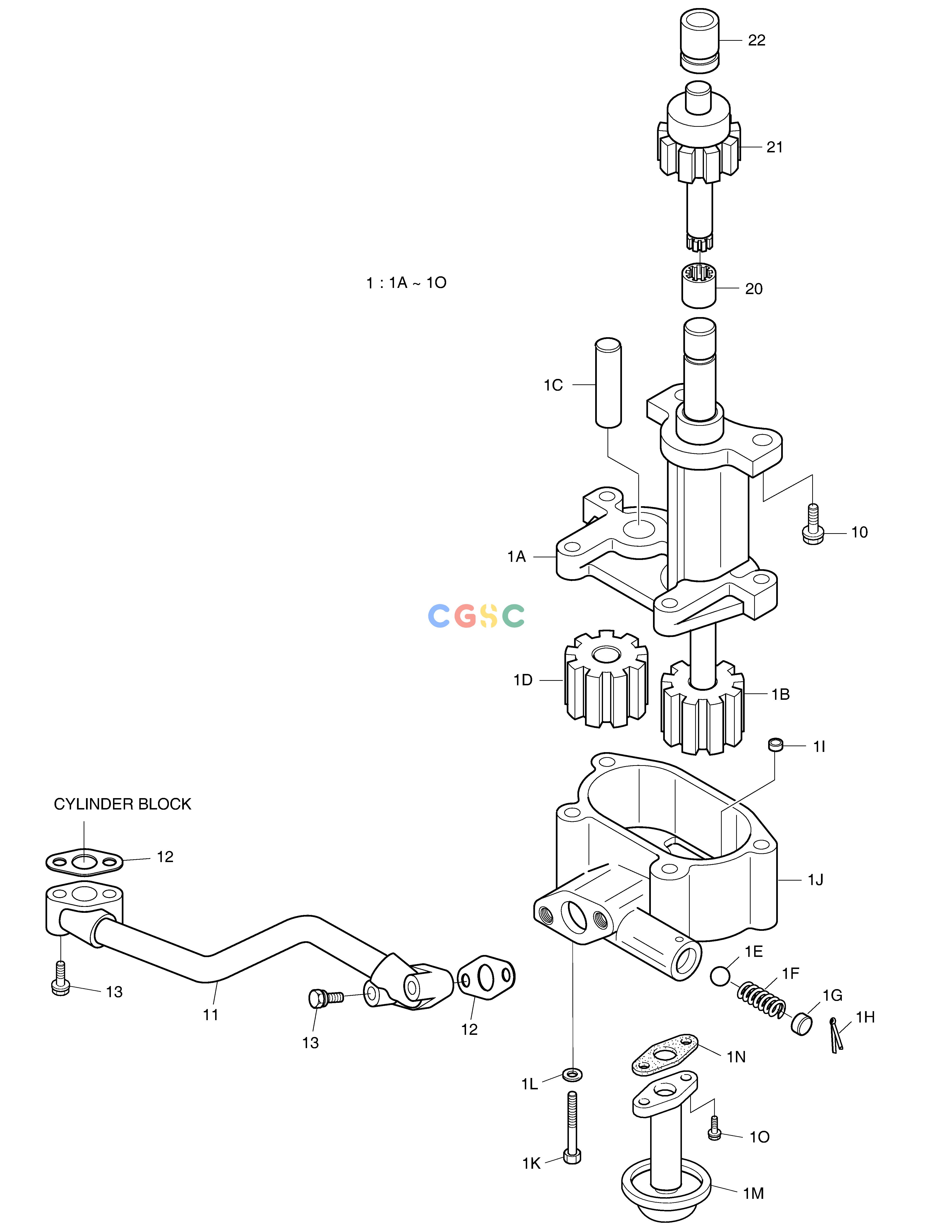

斗山零件查询OIL PUMP SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
343 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.05101-7021
|
[1] |
OIL PUMP ASS'Y(NO.102∼118)
|
400915-00010
|
| 1. |
400915-00010
|
[1] |
|
400915-00010A
|
| 1. |
400915-00010A
|
[1] |
. OIL PUMP ASS`Y
|
|
| 10. |
06.01944-3215
|
[2] |
BOLT ASS`Y M10X1.25X25
|
|
| 11. |
65.05701-5636A
|
[1] |
. OIL PIPE ASS`Y
|
|
| 12. |
65.05903A0002
|
[2] |
GASKET
|
|
| 13. |
06.01923-3120
|
[4] |
. BOLT ASS`Y M8X45
|
|
| 1A. |
65.05102-0018
|
[1] |
.. HOUSING;OIL PUMP
|
|
| 1B. |
65.05104-6065
|
[1] |
GEAR ASS'Y;OIL PUMP
|
130424-00005
|
| 1B. |
130424-00005
|
[1] |
|
130424-00005A
|
| 1B. |
130424-00005A
|
[1] |
.. GEAR ASSY;FOR OIL PUMP
|
|
| 1C. |
65.05105-0044
|
[1] |
.. SHAFT;OIL PUMP
|
|
| 1D. |
65.05104-0177
|
[1] |
GEAR;OIL PUMP
|
130424-00003
|
| 1D. |
130424-00003
|
[1] |
.. GEAR,SPUR
|
|
| 1E. |
06.31641-0222
|
[1] |
. BALL;STEEL
|
|
| 1F. |
65.97601-0090
|
[1] |
.. SPRING;COMPRESSION
|
|
| 1G. |
65.91305-0007
|
[1] |
.. SEAT;SPRING
|
|
| 1H. |
06.22070-0913
|
[1] |
.. PIN;SPLIT 4X30
|
|
| 1I. |
65.91710-0012
|
[1] |
.. RING;STOPPER
|
|
| 1J. |
65.05103-0051
|
[1] |
COVER;OIL PUMP
|
|
| 1J. |
110508-00299
|
[1] |
.. COVER,OIL PUMP
|
|
| 1K. |
06.01013-9117
|
[4] |
BOLT M8X65
|
|
| 1L. |
06.16731-2107
|
[4] |
WASHER
|
|
| 1M. |
65.05705-6016
|
[1] |
STRAINER ASS'Y
|
400411-00021
|
| 1M. |
400411-00021
|
[1] |
.. STRAINER ASSY,OIL
|
|
| 1N. |
65.96601-0058
|
[1] |
GASKET
|
400612-00021
|
| 1N. |
400612-00021
|
[1] |
.. GASKET,FLANGE
|
|
| 1O. |
06.01913-3113
|
[2] |
.. BOLT ASS`Y M8X20
|
|
| 20. |
65.05207-0006
|
[1] |
COUPLING;SLEEVE
|
|
| 21. |
65.05201-0065
|
[1] |
GEAR;OIL PUMP DRIVE
|
|
| 22. |
65.05202-0001B
|
[1] |
BUSH;DRIVE GEAR
|
|
