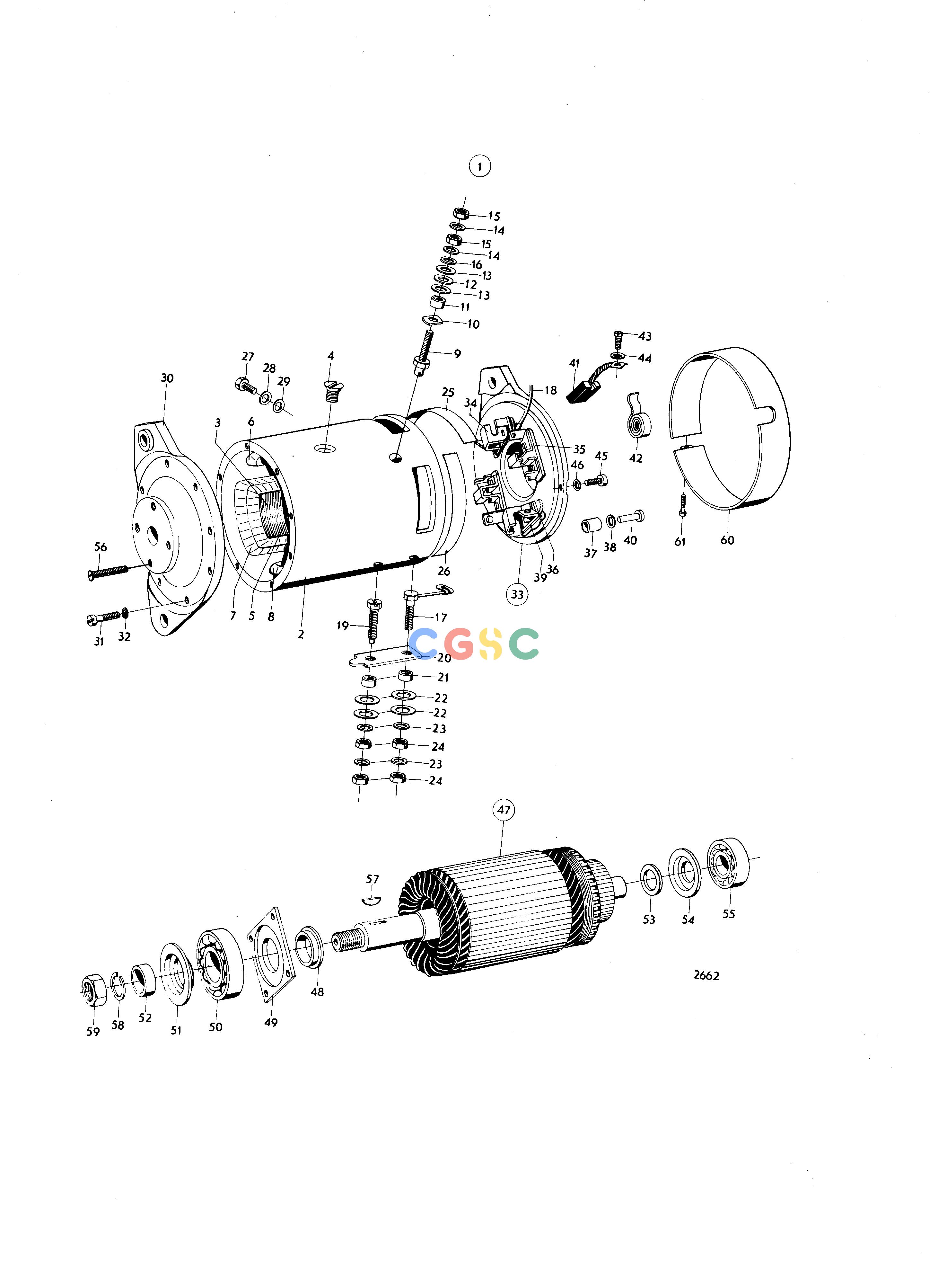

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BElectrical SystemDynamoEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
859 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
243329
|
[4] |
Screw
|
|
| 5. |
870994
|
[1] |
Field winding
|
|
| 6. |
870995
|
[1] |
Field winding
|
|
| 7. |
870996
|
[1] |
Field winding
|
|
| 8. |
870997
|
[1] |
Field winding
|
|
| 9. |
243330
|
[1] |
Screw
|
|
| 10. |
870126
|
[1] |
Insulation
|
|
| 11. |
870127
|
[1] |
Insulating bushing
|
|
| 12. |
241331
|
[1] |
Washer
|
TH=0.6mm
|
| 13. |
239568
|
[2] |
Washer
|
TH=1.0mm
|
| 14. |
941907
|
[2] |
Spring washer
|
|
| 15. |
955782
|
[2] |
Hexagon nut
|
|
| 16. |
25703
|
[1] |
Washer
|
|
| 17. |
870130
|
[1] |
Screw
|
|
| 18. |
7742090_057
|
|
cables and terminals
|
|
| 19. |
238832
|
[1] |
Screw
|
|
| 20. |
870132
|
[1] |
Screw
|
|
| 21. |
240157
|
[2] |
Insulation
|
|
| 22. |
243064
|
[4] |
Washer
|
|
| 23. |
941905
|
[4] |
Spring washer
|
|
| 24. |
955780
|
[4] |
Hexagon nut
|
|
| 25. |
870134
|
[1] |
Local part
|
L=240mm
|
| 26. |
|
|
|
L=80mm
|
| 27. |
100066
|
[1] |
Screw
|
|
| 28. |
941905
|
[1] |
Spring washer
|
|
| 29. |
906822
|
[1] |
Washer
|
|
| 30. |
243332
|
[1] |
Bearing shield
|
|
| 31. |
241217
|
[8] |
Screw
|
|
| 32. |
241294
|
[8] |
Washer
|
|
| 33. |
870137
|
[1] |
End plate
|
|
| 34. |
243335
|
[4] |
Carbon retainer
|
|
| 35. |
|
|
|
|
| 36. |
77508
|
[2] |
Insulating plate
|
|
| 37. |
|
|
|
|
| 38. |
72492
|
[4] |
Washer
|
|
| 39. |
870141
|
[2] |
Local part
|
|
| 40. |
243337
|
[8] |
Rivet
|
|
| 41. |
870840
|
[1] |
Carbon brush set
|
|
| 42. |
870144
|
[4] |
Spring
|
|
| 43. |
956059
|
[4] |
Cross recessed screw
|
|
| 44. |
241294
|
[4] |
Washer
|
|
| 45. |
241217
|
[8] |
Screw
|
|
| 46. |
241294
|
[8] |
Washer
|
|
| 47. |
870146
|
[1] |
Anchor
|
|
| 48. |
77680
|
[1] |
Washer
|
|
| 49. |
870147
|
[1] |
Washer
|
|
| 50. |
243340
|
[1] |
Bearing
|
|
| 51. |
233563
|
[1] |
Washer
|
|
| 52. |
870149
|
[1] |
Ring
|
|
| 53. |
870150
|
[1] |
Ring
|
|
| 54. |
233775
|
[1] |
Protective washer
|
|
| 55. |
11009
|
[1] |
Ball bearing
|
|
| 56. |
956167
|
[4] |
Cross recessed screw
|
|
| 57. |
910115
|
[1] |
Woodruff key
|
|
| 58. |
941911
|
[1] |
Spring washer
|
|
| 59. |
955804
|
[1] |
Hexagon nut
|
|
| 60. |
870152
|
[1] |
Protective strip
|
|
| 61. |
956064
|
[1] |
Cross recessed screw
|
|
