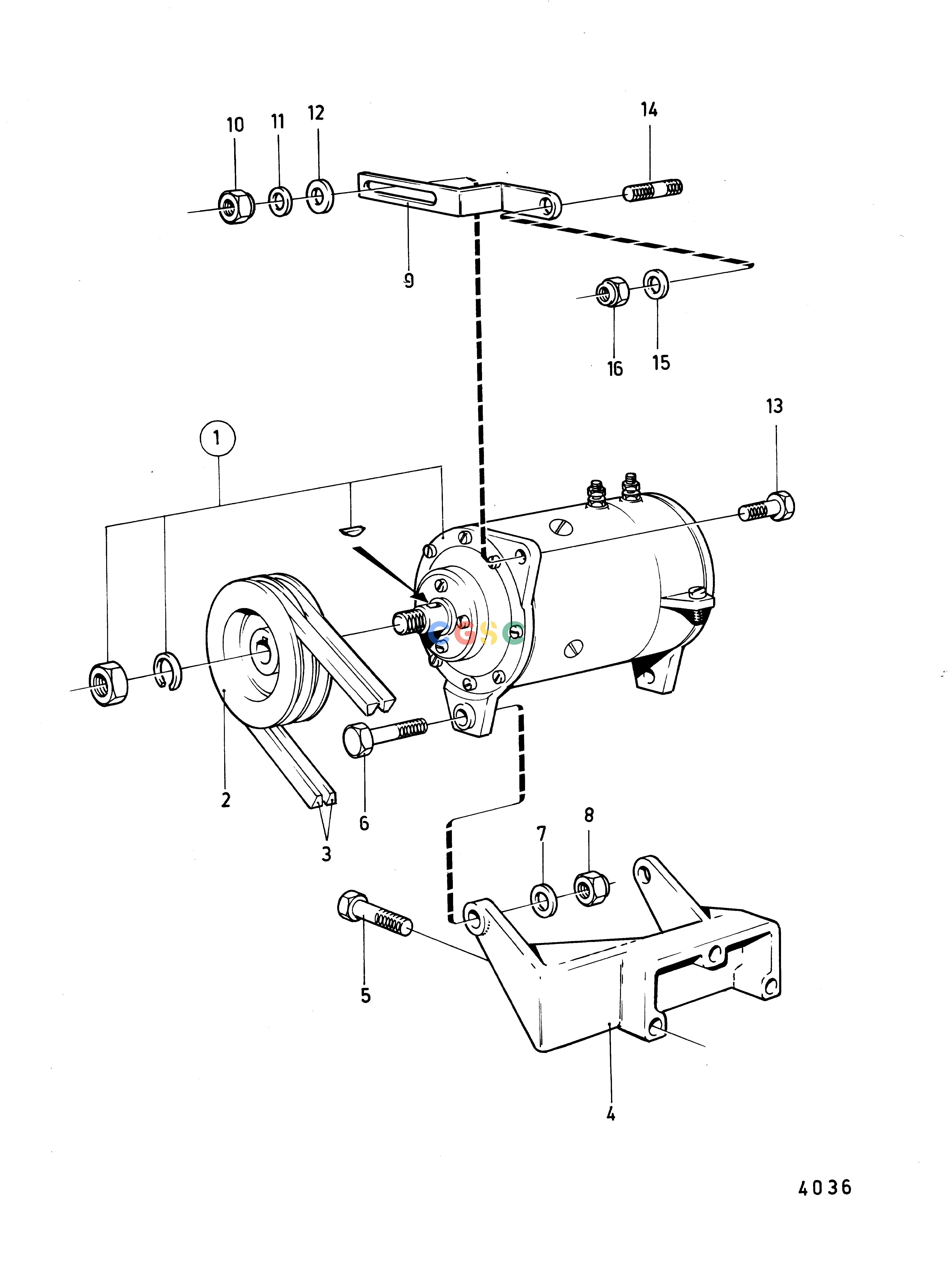

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BElectrical SystemDynamo and Installation Components: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
806 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
833028
|
[1] |
Pulley
|
|
| 3. |
958367
|
[1] |
V-belt
|
|
| 4. |
833063
|
[1] |
Bracket
|
|
| 5. |
955298
|
[3] |
Hexagon screw
|
|
| 6. |
955321
|
[2] |
Hexagon screw
|
|
| 7. |
940097
|
[2] |
Washer
|
|
| 8. |
963107
|
[2] |
Lock nut
|
|
| 9. |
942623
|
[1] |
Tensioner
|
|
| 10. |
946036
|
[1] |
Lock nut
|
|
| 11. |
955894
|
[1] |
Washer
|
|
| 12. |
191172
|
[1] |
Washer
|
|
| 13. |
940142
|
[1] |
Hexagon screw
|
|
| 14. |
944722
|
[1] |
Stud
|
See group 2A
|
| 15. |
946075
|
[1] |
Washer
|
|
| 16. |
963107
|
[1] |
Lock nut
|
See group 2A
|
