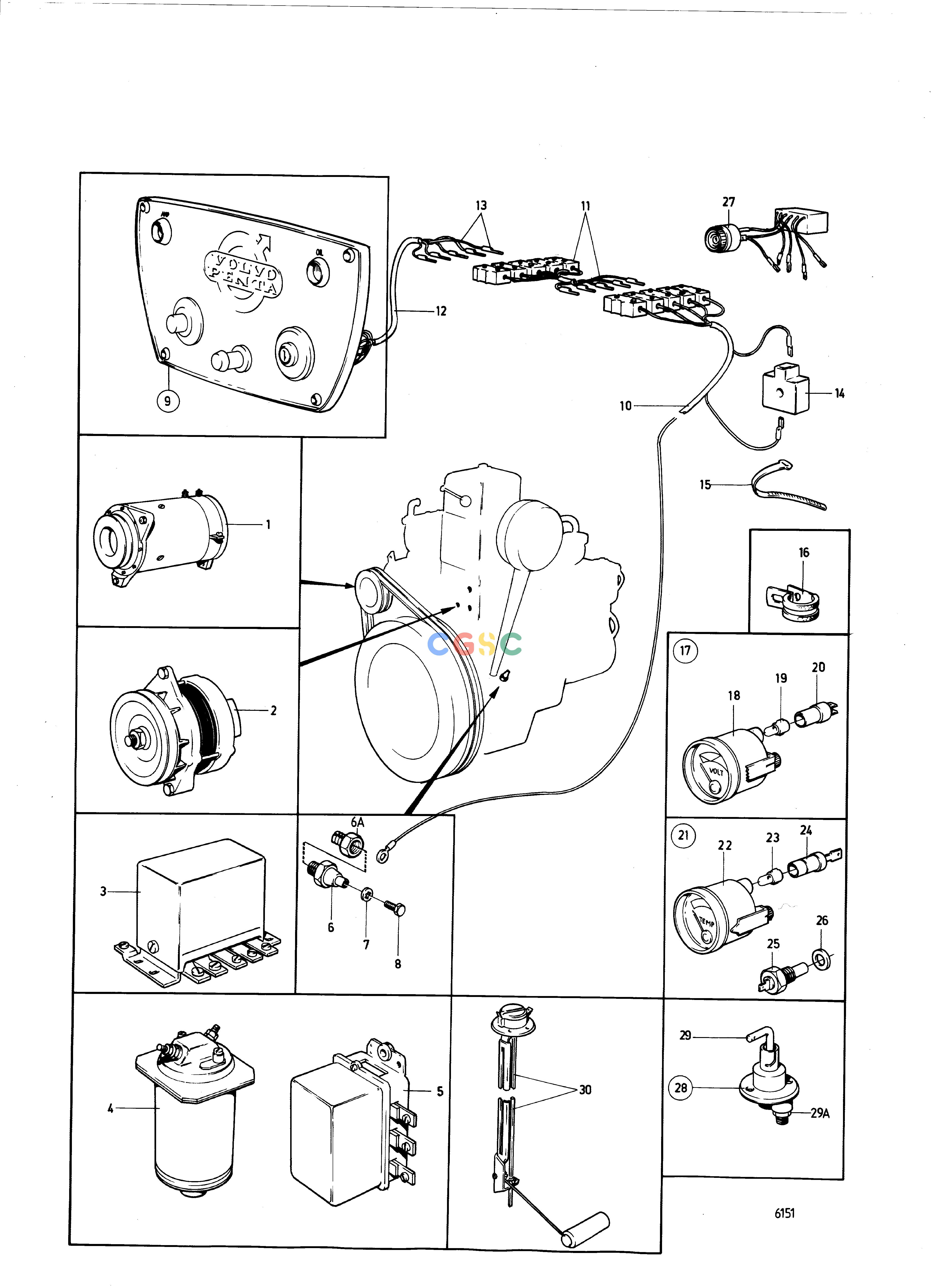

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BElectrical SystemElectrical System and InstrumentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
615 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7742090_047
|
|
dynamo and installation comps
|
|
| 1. |
|
|
|
|
| 2. |
833456
|
[1] |
Alternator
|
|
| 3. |
|
|
|
Replaced by 834693 + 834694.
|
| 3. |
834693
|
[1] |
Charge regulator
|
|
| 3. |
834694
|
[1] |
Starter relay
|
|
| 4. |
870730
|
[1] |
Actuator solenoid
|
Starter cut-out relay for unlimited battery capacity.
|
| 5. |
239964
|
[1] |
Governor
|
Starter cut-out relay for unlimited battery capacity.
|
| 6. |
807078
|
[1] |
Pressure monitor
|
|
| 6A. |
945612
|
[1] |
Nipple
|
Spec 867141, 867142.
|
| 7. |
955945
|
[1] |
Toothed washer
|
|
| 8. |
190663
|
[1] |
Screw
|
|
| 9. |
819678
|
[1] |
Instrument plate
|
|
| 10. |
833608
|
[1] |
Cable block
|
|
| 11. |
833618
|
[1] |
Cable block
|
L=2000mm
|
| 11. |
833619
|
[1] |
Cable block
|
L=5000mm
|
| 12. |
|
|
|
|
| 13. |
7742090_057
|
|
cables and terminals
|
|
| 14. |
824823
|
[1] |
Fuse box
|
|
| 15. |
948210
|
[1] |
Cable tie
|
(827353)
|
| 16. |
942022
|
[1] |
Clamp
|
|
| 17. |
834397
|
[1] |
Voltmeter
|
|
| 18. |
834374
|
[1] |
Voltmeter
|
|
| 19. |
19923
|
[1] |
Bulb
|
|
| 20. |
808175
|
[1] |
Bulb socket
|
|
| 21. |
840228
|
[1] |
Temperature gauge ki
|
|
| 22. |
841233
|
[1] |
Thermometer
|
(831475)
|
| 23. |
19923
|
[1] |
Bulb
|
|
| 24. |
808174
|
[1] |
Bulb socket
|
|
| 25. |
840074
|
[1] |
Temperature sensor
|
|
| 26. |
957181
|
[1] |
Gasket
|
|
| 27. |
827940
|
[1] |
Alarm kit
|
See group 9
|
| 28. |
870980
|
[1] |
Main switch
|
|
| 29. |
243700
|
[1] |
Handle
|
|
| 29A. |
955783
|
[2] |
Hexagon nut
|
|
| 30. |
834400
|
[1] |
Tank gauge, drinking water
|
See group 9
|
| 30. |
|
|
|
|
