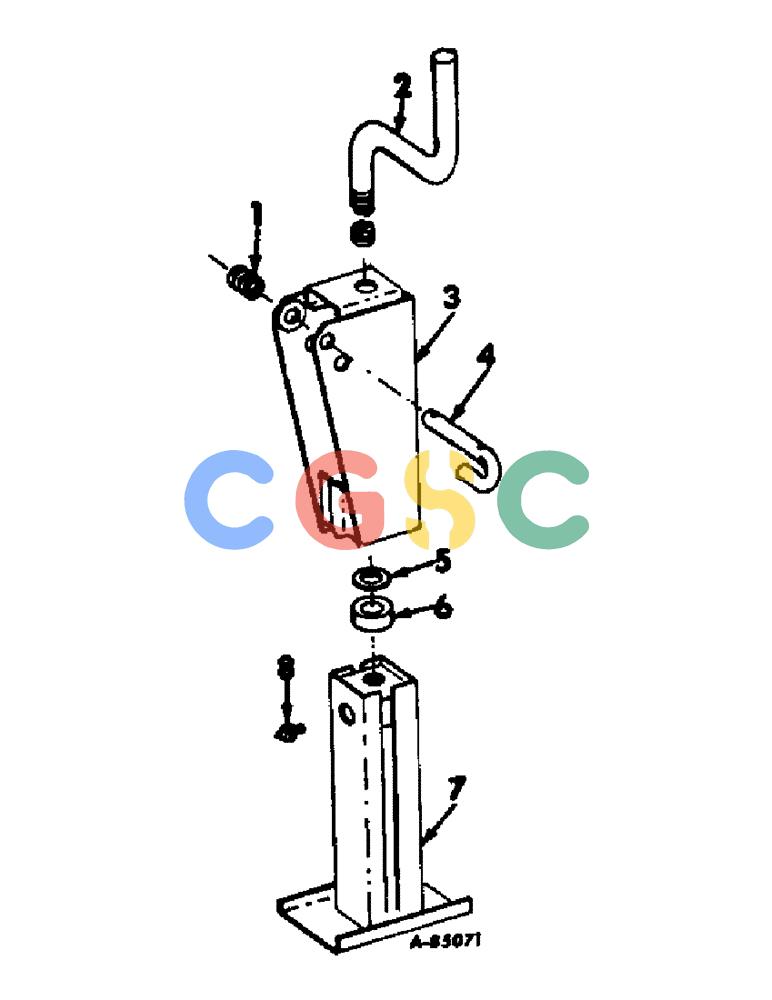

凯斯零件查询(440) - INTERNATIONAL HARVESTER CUSTOM RECTANGULAR BALER (1/70-12/78) (F-57) - LIFTING JACK Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
890 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
269920R2
|
[1] |
SPRING
|
IH
jack
|
| 2. |
673921R1
|
[1] |
PRESS
|
IH
HANDLE, jack
|
| 3. |
673912R1
|
[1] |
FRAME
|
IH
ASSY, jack
|
| 4. |
673924R1
|
[1] |
ROD
|
IH
jack pivot
|
| . . |
137185
|
[2] |
COTTER PIN,1/8" x 1"
|
IH
PIN, SPLIT (COTTER), 1/8" x 1" Superseded by part number: 80755
|
| . . |
178373R1
|
[3] |
WASHER
|
IH
17/32 x 1 x 16 ga C-Z Superseded by part number: 495-51053
|
| 5. |
673923R1
|
[1] |
THRUST WASHER
|
IH
jack handle bearing Superseded by part number: 87034831
|
| . . |
576485R1
|
[1] |
LOCK PIN,1/4" x 1 1/4", Slotted
|
IH
Superseded by part number: 300868
|
| . . |
22234R1
|
[1] |
PIN,1/4" x 7/8", Slotted
|
IH
|
| 6. |
673922R1
|
[1] |
BUSHING
|
IH
BEARING, jack handle
|
| 7. |
673917R1
|
[1] |
SUPPORT
|
IH
ASSY, jack
|
| 8. |
109461
|
[1] |
LUBE NIPPLE,1/8"-27 x .66 lg
|
IH
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg Superseded by part number: 80710
|
