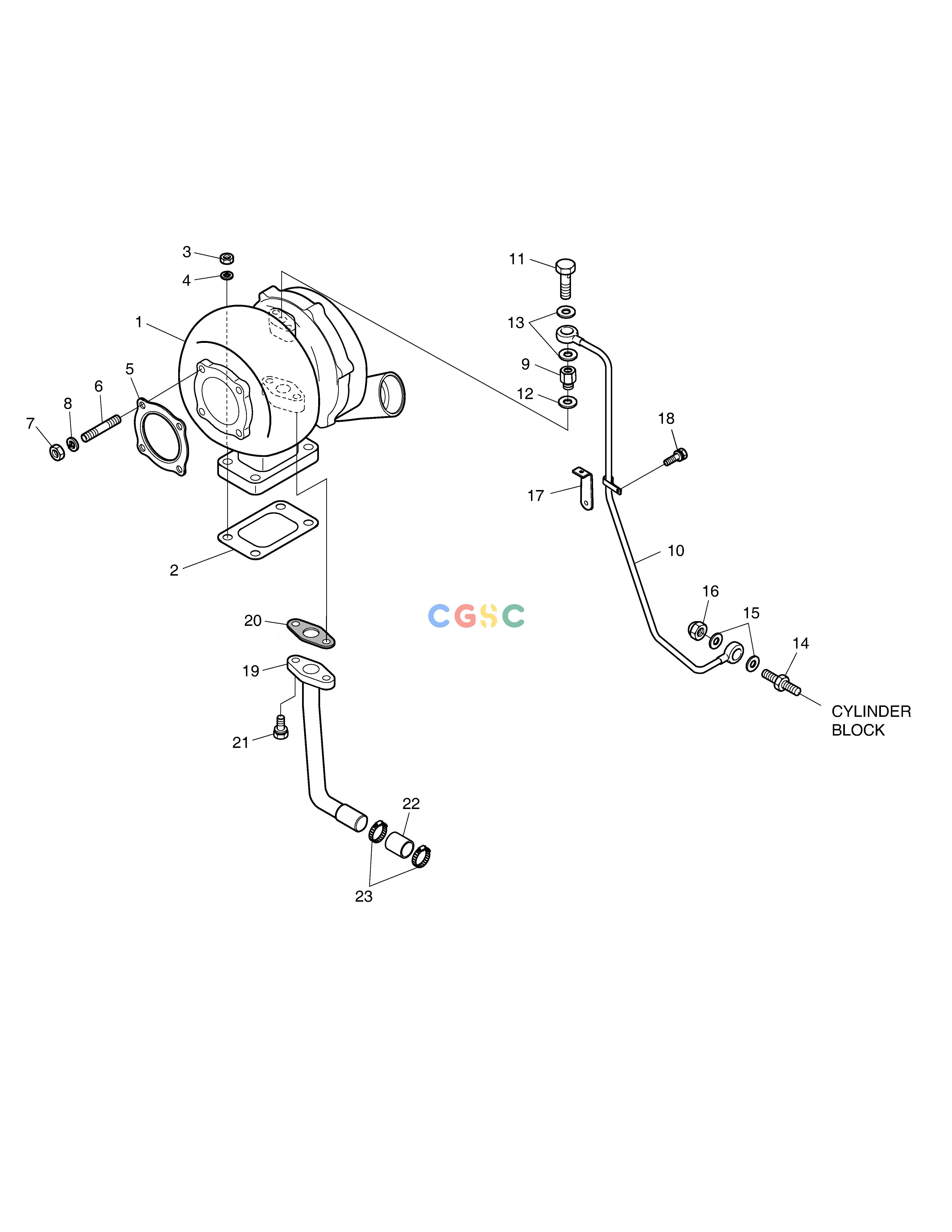

斗山零件查询TURBO CHARGER & OIL PIPE SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
236 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.09100-7078A
|
[1] |
TURBO CHARGER ASS`Y
|
|
| 10. |
65.05701-5342
|
[1] |
OIL PIPE ASS`Y
|
|
| 11. |
06.78144-2403
|
[1] |
HOLLOW SCREW M12X1.5
|
|
| 12. |
06.56190-0709
|
[1] |
SEAL;RING
|
|
| 13. |
06.56190-0704
|
[2] |
. RING;SEAL
|
|
| 14. |
65.98155-0011
|
[1] |
UNION;HOLLOW
|
|
| 15. |
06.56180-0714
|
[2] |
RING;SEAL
|
|
| 16. |
06.12172-9314
|
[1] |
NUT;CAP
|
|
| 17. |
65.97480-0135
|
[1] |
HOLDER
|
|
| 18. |
06.01913-3110
|
[1] |
BOLT ASS`Y M8X12
|
|
| 19. |
65.05701-5343
|
[1] |
OIL PIPE ASS'Y
|
|
| 2. |
65.09901-0018A
|
[1] |
GASKET
|
|
| 20. |
65.96601-0045A
|
[1] |
GASKET
|
65.96601-0067
|
| 20. |
65.96601-0067
|
[1] |
GASKET;T/C OIL RETURN
|
|
| 21. |
06.01913-3115
|
[2] |
BOLT ASS`Y M8X25
|
|
| 22. |
65.96301-0280A
|
[1] |
HOSE;RUBBER
|
|
| 23. |
06.67020-0106
|
[2] |
CLAMP;HOSE
|
|
| 3. |
06.11024-9202
|
[4] |
NUT M10X1.25
|
|
| 4. |
06.16731-2108
|
[4] |
WASHER;SPRING
|
|
| 5. |
65.09901-0020
|
[1] |
GASKET;TURBO CHARGER
|
|
| 6. |
65.90201-0096
|
[4] |
BOLT;STUD M8X30
|
|
| 7. |
06.11063-8214
|
[4] |
. NUT
|
|
| 8. |
06.16731-2107
|
[4] |
WASHER
|
|
| 9. |
65.98130-0200A
|
[1] |
ADAPTER
|
|
