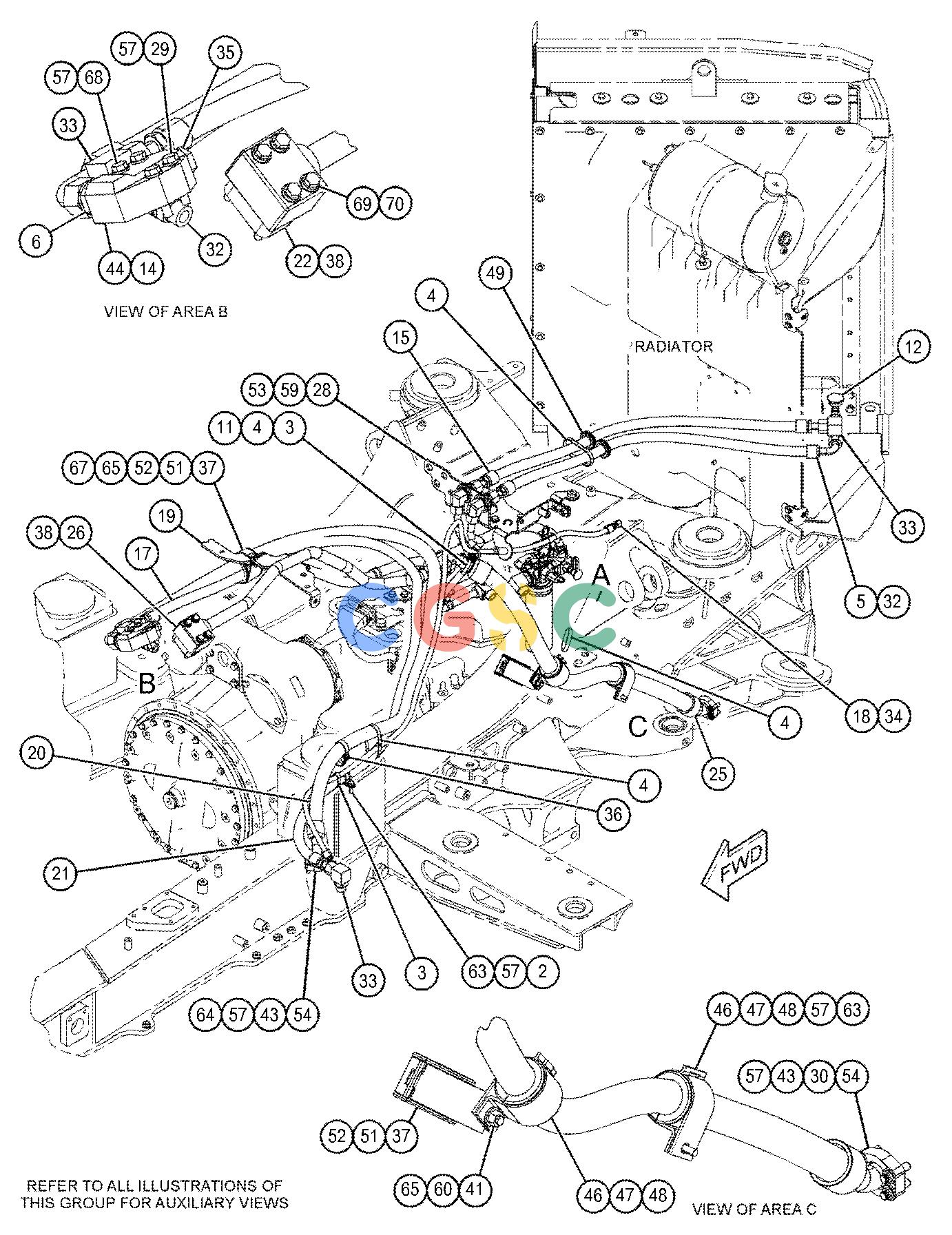

卡特零件查询（730） 539-0381: LINES GP-PUMP
广数供应链运营团队, 15 02月, 2025，浏览：
824 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3U-2754 | [2] | CLIP(LOOP) | |
| 2. | 3U-2755 | [3] | CLIP(LOOP) | |
| 3. | 6U-0455 | [2] | STRAP | |
| 4. | 6U-0456 | [4] | STRAP | |
| 5. | 148-3373I | [1] | HOSE AS | |
| 6. | 148-8335 | [1] | CONNECTOR AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 7. | 150-4046 | [1] | ADAPTER AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 5P-1404 | [1] | ADAPTER | |
| 8. | 183-7264 | [1] | VALVE AS-FLUID SAMPLING | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 9. | 185-8833 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 129-2327 | [1] | ELBOW | |
| 10. | 268-1621 | [1] | FITTING AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 124-1212 | [1] | FITTING | |
| 11. | 290-5562 | [1] | MOUNT(DUAL SWIVEL) | |
| 12. | 360-5604 | [1] | VALVE AS-CONTROL(HYDRAULIC OIL TEMP) | |
| | 238-5085 | [1] | SEAL-O-RING | |
| 13. | 369-1487 | [1] | SWITCH AS-PRESSURE(POWER TRAIN OIL) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 14. | 384-5850 | [1] | MANIFOLD | |
| 15. | 387-9283I | [1] | HOSE AS | |
| 16. | 422-3863Y | [1] | FILTER GP-OIL(POWER TRAIN) | |
| 17. | 501-3374I | [1] | HOSE AS | |
| 18. | 525-3156I | [1] | HOSE AS | |
| 19. | 525-3158 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 20. | 539-0408 | [1] | HOSE AS | |
| 21. | 539-0518I | [1] | HOSE AS | |
| 22. | 539-1307 | [1] | FLANGE | |
| 23. | 539-7946 | [1] | TUBE AS | |
| 24. | 539-7947 | [1] | TUBE AS | |
| 25. | 540-2937 | [1] | HOSE AS | |
| 26. | 540-2938 | [1] | TUBE AS | |
| 27. | 540-3308 | [1] | BRACKET AS | |
| 28. | 541-7624Y | [1] | ADAPTER GP-MOUNTING | |
| 29. | 085-8091M | [2] | BOLT(M10X1.5X55-MM) | |
| 30. | 118-9573M | [8] | BOLT-12 POINT HEAD(M10X1.5X35-MM) | |
| 31. | 148-8313 | [1] | ADAPTER AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 5P-6944 | [1] | ADAPTER | |
| 32. | 148-8327 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 33. | 148-8347 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 34. | 150-3033 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8T-0164 | [1] | ELBOW | |
| 35. | 155-7321 | [1] | ADAPTER AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-1722 | [1] | ADAPTER | |
| 36. | 178-3620 | [1] | STRAP-DUAL CLAMP | |
| 37. | 193-2120 | [2] | GROMMET | |
| 38. | 1P-3704 | [2] | SEAL-RECTANGULAR | |
| 39. | 1P-4578 | [2] | FLANGE-HALF | |
| 40. | 228-7092 | [2] | SEAL-O-RING | |
| 41. | 329-3356M | [1] | NUT(M12X1.75-THD) | |
| 42. | 3J-1907 | [2] | SEAL-O-RING | |
| 43. | 4J-0520 | [2] | SEAL-O-RING | |
| 44. | 4J-0522 | [2] | SEAL-O-RING | |
| 45. | 5K-3294 | [1] | CLIP(SLOT) | |
| 46. | 5P-7470 | [2] | CLIP(SLOT) | |
| 47. | 5P-7471 | [2] | CLIP(TAB) | |
| 48. | 5P-8182 | [2] | GROMMET(46-MM ID) | |
| 49. | 6P-0699 | [2] | GROMMET | |
| 50. | 6V-0852 | [1] | CAP-DUST | |
| 51. | 6V-1867 | [2] | CLIP(SLOT) | |
| 52. | 6V-1868 | [2] | CLIP(TAB) | |
| 53. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 54. | 8C-3206 | [4] | FLANGE-HALF | |
| 55. | 8S-0023 | [1] | CLIP(SLOT) | |
| 56. | 8S-0024 | [1] | CLIP(TAB) | |
| 57. | 8T-4121 | [24] | WASHER-HARD(11X21X2.5-MM THK) | |
| 58. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 59. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 60. | 8T-4183M | [1] | BOLT(M12X1.75X40-MM) | |
| 61. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 62. | 8T-4192M | [1] | BOLT(M12X1.75X25-MM) | |
| 63. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 64. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 65. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 66. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 67. | 8T-4956M | [1] | BOLT(M12X1.75X35-MM) | |
| 68. | 8T-6466M | [2] | BOLT(M10X1.5X60-MM) | |
| 69. | 8T-6685M | [4] | BOLT(M10X1.5X110-MM) | |
| 70. | 8T-7934 | [4] | WASHER-HARD(11X21X5-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
