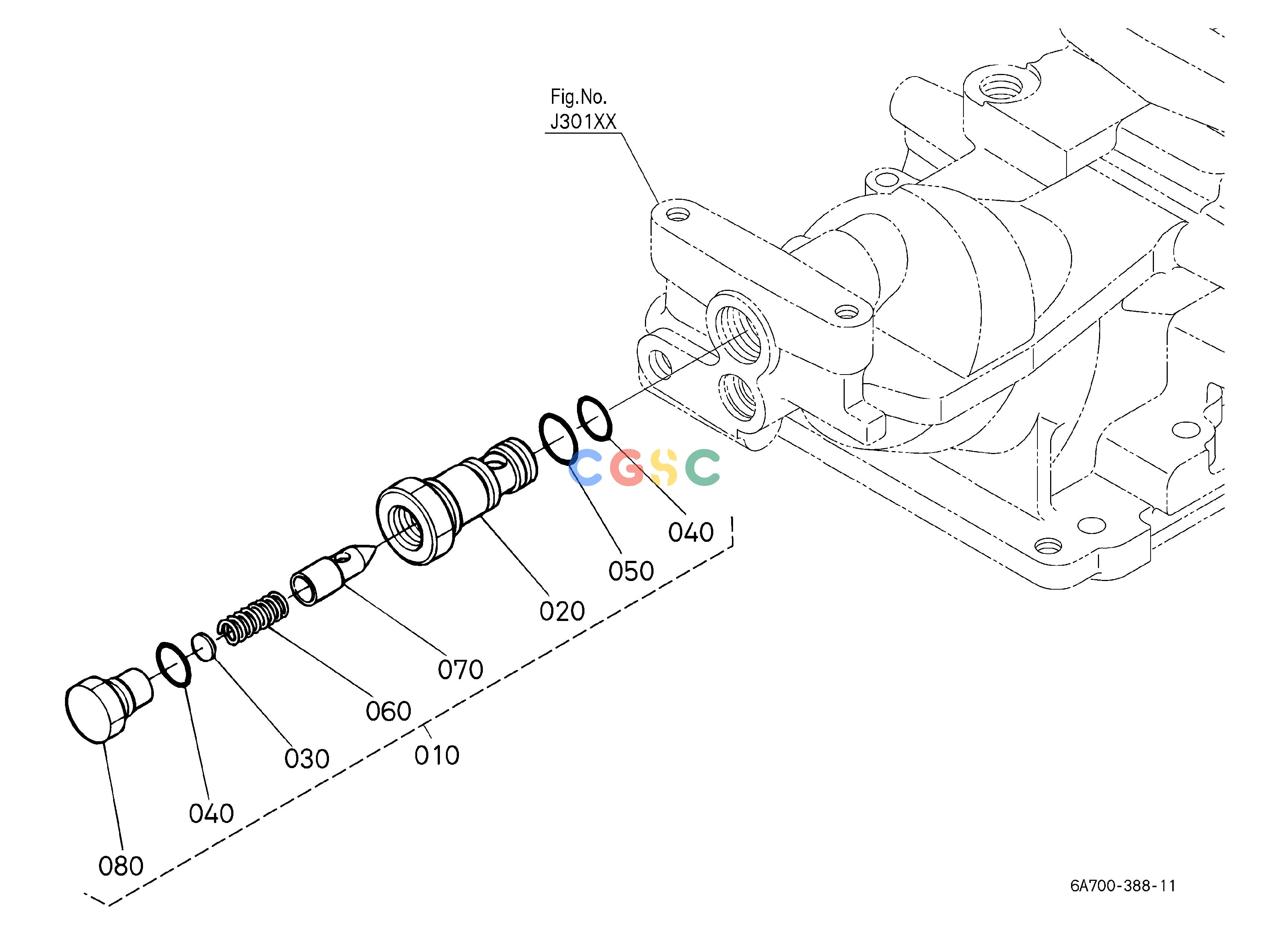

久保田零件查询J43702 SAFETY VALVE ## S.No.>=51038 S.No.;>=51038 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
210 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
YR51980100
|
[1] |
ASSY VALVE,SAFETY
|
0.3036(lbs); 0.138
|
| 020. |
YR51980110
|
[1] |
PLUG,VALVE
|
0.0000(lbs); 0.000
|
| 030. |
YT58100130
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 030. |
YT58100140
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 040. |
0481700140
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0481700160
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
YR36455510
|
[1] |
SPRING,VALVE
|
0.0110(lbs); 0.005
|
| 070. |
YT53900310
|
[1] |
VALVE
|
0.0308(lbs); 0.014
|
| 080. |
YR51980210
|
[1] |
PLUG
|
0.0814(lbs); 0.037
|
