卡特零件查询（730） 284-1296: MANIFOLD GP-EJECTOR CONTROL
广数供应链运营团队, 15 02月, 2025，浏览：
310 次

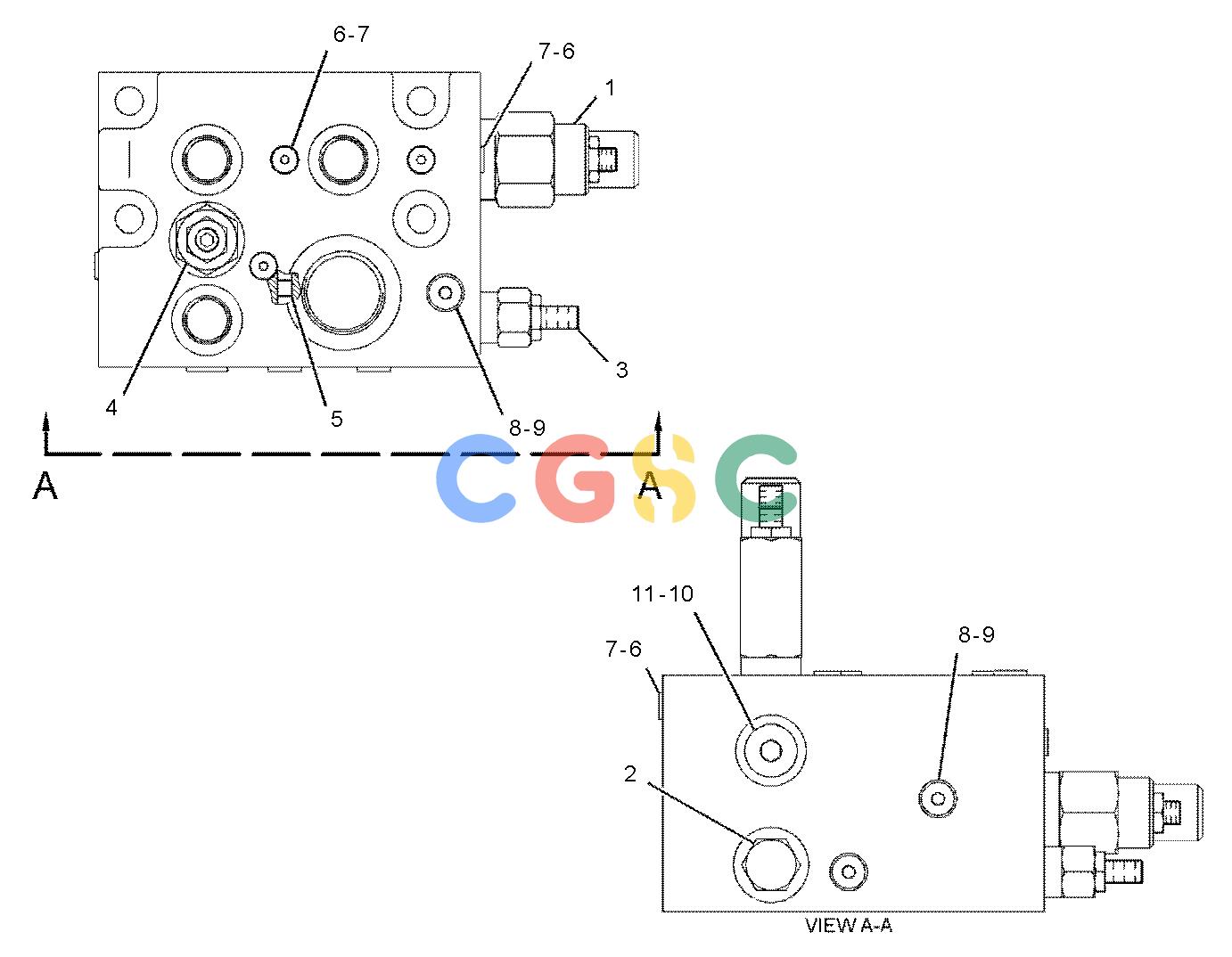

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 208-1475Y | [1] | VALVE GP-LOAD CONTROL(EJECTOR) | |
| 2. | 195-9088Y | [1] | VALVE GP-CHECK | |
| 3. | 215-9101J | [1] | VALVE GP-FLOW CONTROL | |
| 4. | 255-3591Y | [1] | VALVE GP-SEQUENCE | |
| 5. | 215-9105 | [1] | PLUG-ORIFICE | |
| 6. | 9S-8001 | [5] | PLUG | |
| 7. | 4J-7533 | [5] | SEAL-O-RING | |
| 8. | 9S-8002 | [3] | PLUG(7/16-20-THD) | |
| 9. | 3J-7354 | [3] | SEAL-O-RING | |
| 10. | 9S-8005 | [1] | PLUG(3/4-16-THD) | |
| 11. | 3K-0360 | [1] | SEAL-O-RING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 225-9611J | [1] | KIT-SEAL(RELIEF VALVE) | |
| | | | (INCLUDES O-RING SEALS & BACKUP RING) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J) |
| | Y | | SEPARATE ILLUSTRATION |
