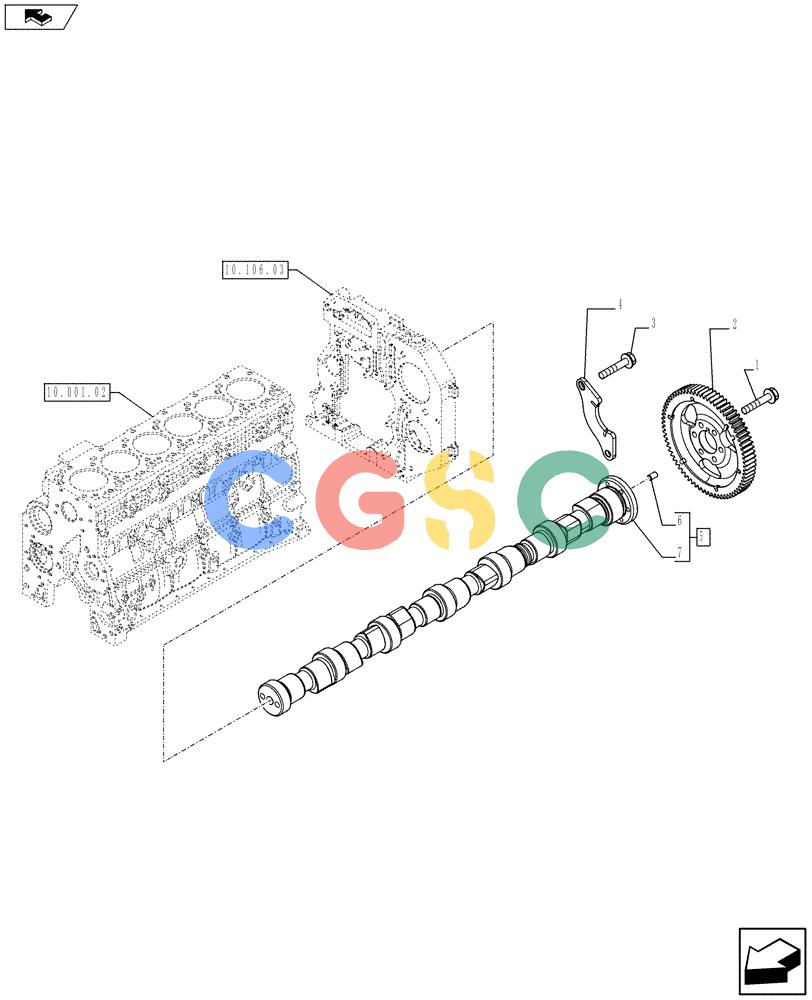

神钢零件查询(F4HFE613T A005) - ENGINE 5801366317 - 87746887 (9/10-) (10.106.01) - SHORT BLOCK - CAMSHAFT - TIMING CONTROL (5801371818 - 504345141) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1008 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899079 | [6] | SCREW,Hex Flg, M8 x 1.25 x 25 | TOR |
| 2. | 4896380 | [1] | DRIVEN GEAR | TOR |
| 3. | 4899068 | [2] | BOLT,Flng, M8 x 1.25 x 16mm | BAS |
| 4. | 4897457 | [1] | SUPPORT | TOR |
| 5. | 84342155 | [1] | CAMSHAFT | BRR- ASSY Superseded by part number: 504345138 |
| 6. | 4899080 | [1] | DOWEL,M6 x 8 L | TOR |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CON |
