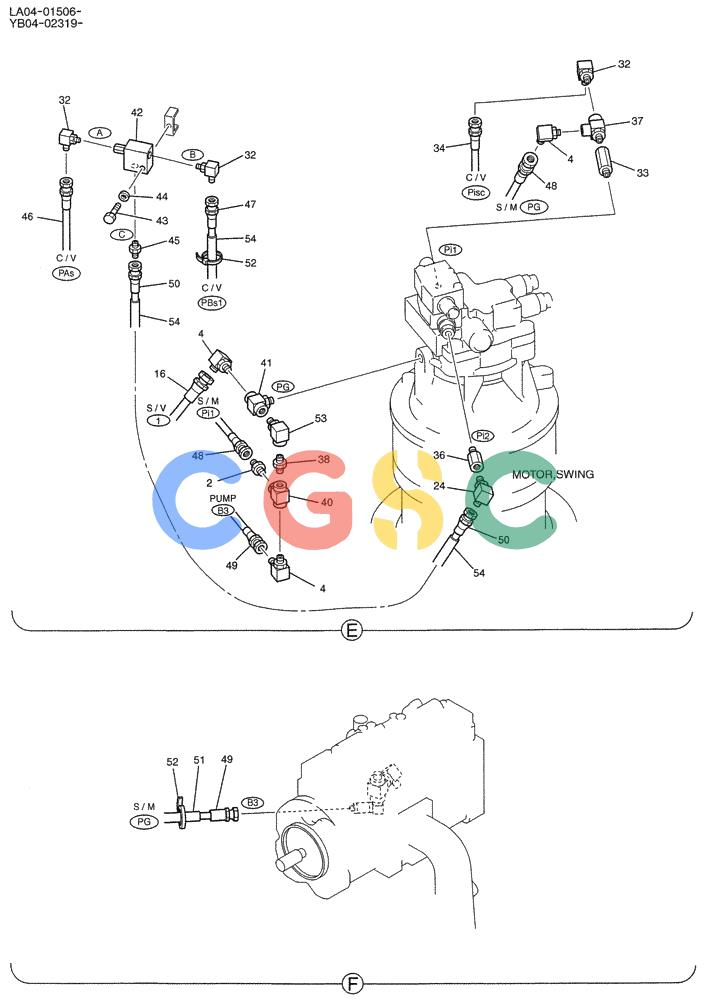

| . . | YB64H00023F1 | [1] | CONTROL LINES,VALVE (STD) | |
| . . | YB64H00023F2 | [1] | CONTROL LINES, VALVE (AUTO WARM UP) | |
| 1. | YB35V00002F2 | [1] | VALVE | KOBASSY, SOLENOID |
| 2. | ZH22X04000 | [3] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB |
| 3. | ZH22X06000 | [2] | HYD CONNECTOR | KOB |
| 4. | ZH32X04000 | [9] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOB |
| 5. | HH35X06006G3 | [1] | ELBOW | KOB |
| 6. | YT64H01025P1 | [2] | GUIDE | KOB |
| 7. | 2432R325 | [2] | CLIP | KOB |
| 8. | ZS18C10020 | [4] | SCREW,Hex, M10 x 20mm | KOBCap |
| 9. | ZS18C10075 | [3] | SCREW,Hex, M10 x 75mm | KOBCAP |
| 10. | ZW16H10000 | [8] | WASHER | KOB |
| 11. | ZW16X10000 | [3] | WASHER | KOB |
| 12. | 2420R349D060 | [1] | HOSE,6.35mm ID x 700mm L | KOB |
| 13. | 2420R349D070 | [1] | HOSE,700.00 mm | KOB |
| 14. | 2420R349D085 | [1] | HOSE,6.35mm ID x 850mm L | KOB |
| 15. | 2420R349D125 | [1] | HOSE,1250.00 mm | KOB Superseded by part number: HX21E04125DX |
| 16. | 2420R349D135 | [2] | HOSE,6.35mm ID x 1350mm L | KOB |
| 17. | 2420R349D140 | [1] | HOSE,6.35mm ID x 1400mm L | KOB |
| 18. | 2420R537D200 | [1] | HOSE,9.60mm ID x 2000mm L | KOB |
| 19. | 2420R537D270 | [1] | FLEXIBLE HOSE,9.60mm ID x 2700mm L | KOB |
| 20. | 2444R1119D030 | [1] | FLEXIBLE HOSE | KOB |
| 21. | PU13E01010D5 | [1] | TUBE | KOB |
| 22. | YN64H01072P1 | [1] | U-BRACKET | KOB |
| 23. | ZS18C10025 | [1] | SCREW,Hex, M10 x 25mm | KOB |
| 24. | ZH32X06000 | [2] | 90 ELBOW,Male, 30° Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006, FOR F1 ONLY |
| 25. | YN64H01018P1 | [1] | GROMMET | KOB |
| 26. | PY01P01043D6 | [10] | CABLE TIE,4.80mm W x 383mm L | KOB |
| 29. | 2444Z2537 | [1] | HYD CONNECTOR | KOBFOR F2 ONLY |
| 30. | 2479R2348 | [1] | SWITCH,95°C, 203°F | KOBTHERMO, FOR F2 ONLY |
| 31. | 2414Z199D045 | [1] | GUARD | KOBHOSE |
| 32. | 2444Z2338 | [3] | ELBOW | KOB |
| 33. | 2444T2524 | [1] | HYD CONNECTOR | KOB |
| 34. | 2420R537D150 | [1] | FLEXIBLE HOSE,9.60mm ID x 1500mm L | KOB Superseded by part number: HX21E06150DX |
| 36. | 2444Z2516 | [1] | HYD CONNECTOR | KOB |
| 37. | HH55Q04004G1 | [1] | TEE,1/4" ORB x 1/4" JIC x 1/4" JIC | KOB |
| 38. | 2444Z2294 | [1] | HYD CONNECTOR | KOB |
| 40. | YY20V00004F1 | [1] | VALVE | KOBASSY, HYD |
| 41. | 2444Z4239 | [1] | TEE | KOB |
| 42. | YN26V00001F2 | [1] | VALVE | KOBASSY, SHUTTLE |
| 43. | ZS18C08050 | [1] | SCREW,Hex, M8 x 50mm | KOBCAP |
| 44. | ZW16H08000 | [1] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 45. | 2444Z2337 | [1] | HYD CONNECTOR | KOB |
| 46. | 2420R537D230 | [1] | FLEXIBLE HOSE,9.60mm ID x 2300mm L | KOB |
| 47. | 2420R537D170 | [1] | HOSE,9.60mm ID x 1700mm L | KOB |
| 48. | 2420R349D040 | [1] | HOSE,6.35mm ID x 400mm L | KOB |
| 49. | 2420R349D160 | [1] | HOSE,6.35mm ID x 1600mm L | KOB |
| 50. | 2420R537D090 | [1] | FLEXIBLE HOSE,9.60mm ID x 900mm L | KOB |
| 51. | PU13E01002DU | [1] | TUBE | KOB |
| 52. | PY01P01043D3 | [2] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| 53. | 2444Z2894 | [1] | 90 ELBOW | KOB |
| 54. | PU13E01010DK | [2] | TUBE | KOB |
