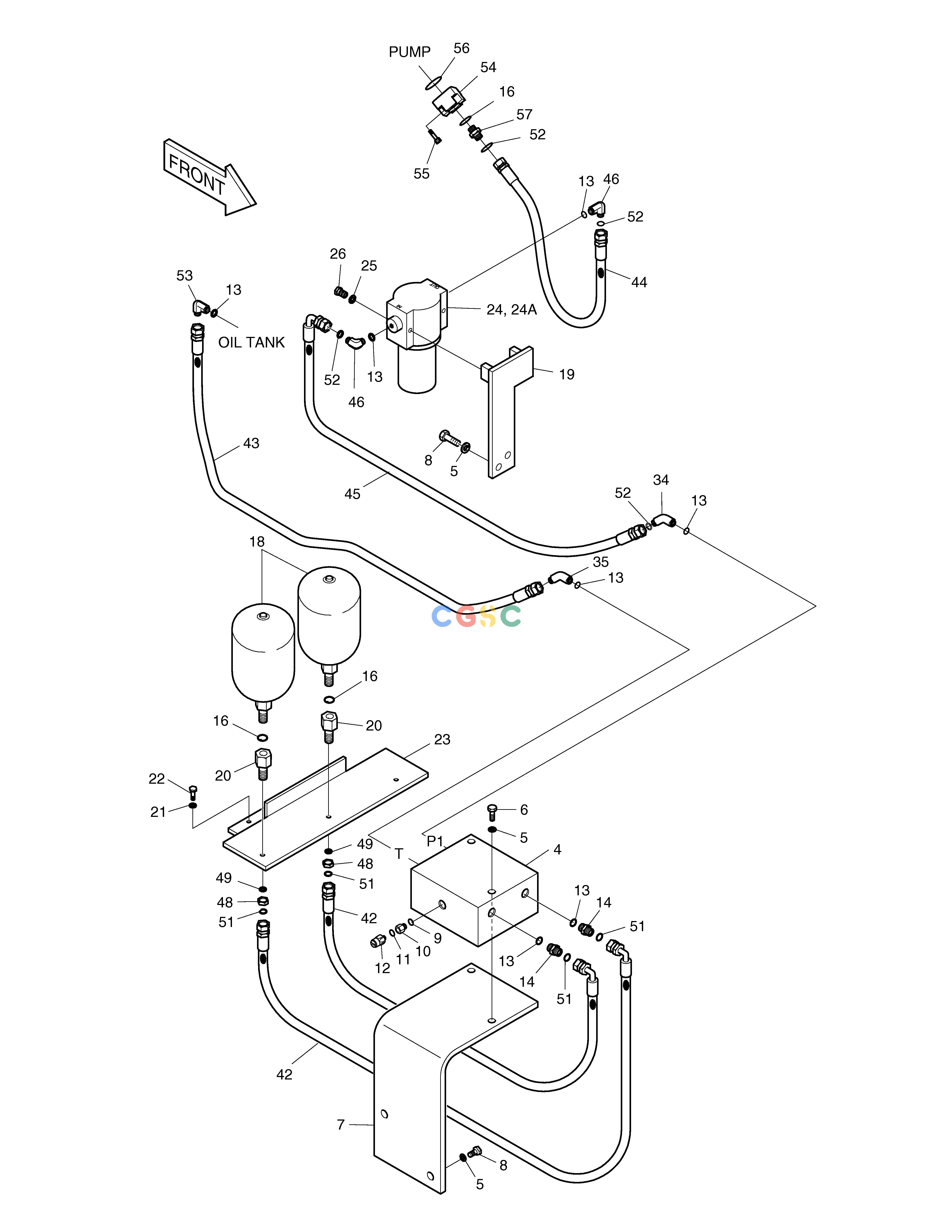

斗山零件查询BRAKE PIPING(2) SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
570 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01226
|
[-] |
BRAKE PIPING
|
|
| 10. |
2181-2180
|
[1] |
ADAPTER PF1/4-PFO1/4
|
|
| 11. |
S8180211
|
[1] |
SEAL;RING
|
|
| 12. |
2549-9093
|
[1] |
SWITCH;LOW PRESSURE
|
|
| 13. |
S8000181
|
[7] |
O-RING
|
|
| 14. |
2181-4133D39
|
[2] |
ADAPTER
|
|
| 16. |
S8000141
|
[3] |
O-RING
|
|
| 18. |
2460-9055
|
[2] |
ACCUMULATOR
|
|
| 19. |
195-02412
|
[1] |
BRACKET
|
|
| 20. |
181-00141
|
[2] |
REDUCER
|
|
| 21. |
S5102703
|
[3] |
WASHER
|
|
| 22. |
S0515153
|
[3] |
BOLT M12X1.75X28
|
|
| 23. |
2197-2566B
|
[1] |
BRACKET
|
|
| 24. |
471-00061
|
[1] |
FILTER;BRAKE
|
400410-00007
|
| 24. |
400410-00007
|
[1] |
|
|
| 24A. |
474-00009
|
[1] |
ELEMENT;BRAKE FILTER
|
|
| 24A. |
400504-00240
|
[1] |
|
|
| 25. |
S5102303
|
[2] |
. WASHER
|
|
| 26. |
S0553753
|
[2] |
BOLT
|
|
| 34. |
2181-2816D4
|
[1] |
ELBOW
|
|
| 35. |
2181-2419D3
|
[1] |
ELBOW
|
|
| 4. |
2420-9325A
|
[1] |
VALVE;BRAKE SUPPLY
|
|
| 42. |
DS2013441
|
[2] |
HOSE UNF11/16-780L
|
|
| 43. |
2184-1026D401
|
[1] |
HOSE PF1/2-2150L
|
|
| 44. |
DS2011351
|
[1] |
HOSE UNF13/16-520L
|
|
| 45. |
2184-1197D159
|
[1] |
HOSE UNF13/16-1850L
|
|
| 46. |
2181-2815D3
|
[2] |
ELBOW
|
|
| 48. |
121-00025
|
[2] |
NUT
|
|
| 49. |
S5103001
|
[2] |
WASHER;SPRING M18
|
|
| 5. |
S5102603
|
[6] |
. WASHER
|
|
| 51. |
S8030061
|
[4] |
O-RING
|
|
| 52. |
S8030081
|
[4] |
O-RING
|
|
| 53. |
2181-1702D2
|
[1] |
ELBOW
|
|
| 54. |
423-00168
|
[1] |
BLOCK
|
|
| 55. |
S2205066
|
[4] |
BOLT
|
|
| 56. |
S8030121
|
[1] |
O-RING
|
|
| 57. |
2181-4133D38
|
[1] |
ADAPTER
|
|
| 6. |
S0559153
|
[2] |
BOLT
|
|
| 7. |
2197-2565
|
[1] |
BRACKET
|
|
| 8. |
S0511853
|
[4] |
BOLT
|
|
| 9. |
S8000111
|
[1] |
O-RING
|
|
