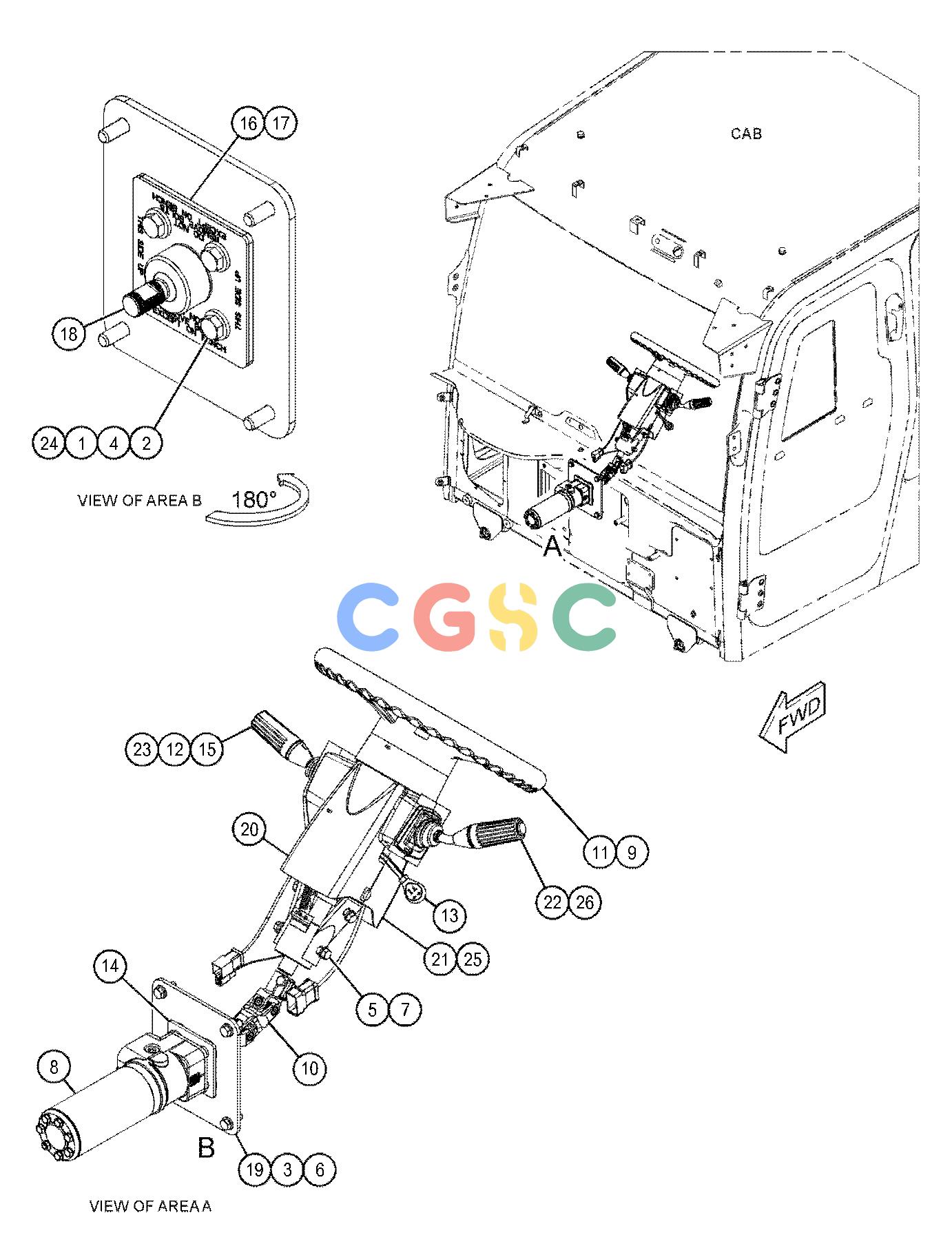

卡特零件查询（730） 494-6705: CONTROL GP-STEERING
广数供应链运营团队, 15 02月, 2025，浏览：
384 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6N-6984 | [4] | MOUNT-RUBBER | |
| 2. | 8T-4185M | [4] | BOLT(M10X1.5X50-MM) | |
| 3. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 4. | 5P-1075 | [4] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 5. | 7X-3183 | [4] | BOLT(3/8-24X1-IN) | |
| 6. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 8. | 223-7718J | [1] | PUMP GP-METERING(HMU) | |
| 9. | 322-8568 | [1] | BUTTON AS-HORN | |
| 10. | 357-5499 | [1] | UNIVERSAL JOINT | |
| 11. | 363-5912 | [1] | STEERING WHEEL AS | |
| | 363-6423 | [1] | PLUG | |
| 12. | 391-4386 | [2] | MOUNT | |
| 13. | 393-3602 | [1] | STEERING COLUMN GP-ADJUSTABLE | |
| | 180-0035 | [1] | NUT(7/8-20-THD) | |
| | 355-3163 | [1] | KIT-BRUSH(HORN) | |
| | | | (INCLUDES KIT BRUSH & CONTACT AS) |
| | 437-2077 | [1] | KIT-COVER | |
| | | | (INCLUDES COVER AS, SPRING & NUT) |
| 14. | 416-0585 | [1] | PLATE | |
| 15. | 440-5303 | [1] | SWITCH AS-MULTIFUNCTION(RETARDER CONTROL) | |
| | 8T-8729 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8737 | [2] | PLUG-SEAL | |
| | 151-9275 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 16. | 441-9999 | [1] | SEAL | |
| 17. | 442-0000 | [1] | PLATE | |
| 18. | 445-7917 | [1] | ADAPTER AS | |
| 19. | 462-5492 | [1] | PLATE | |
| 20. | 482-7526 | [1] | COVER AS | |
| 21. | 482-7527 | [1] | COVER | |
| 22. | 486-0743 | [1] | SWITCH AS-MULTIFUNCTION(TURN, WASH/WIPE, HIGH/LOW BEAM) | |
| | 8T-8729 | [12] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 174-3091 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 23. | 509-1735 | [2] | SCREW-PAN HEAD | |
| 24. | 132-7551 | [4] | SPACER(11X19X6-MM THK) | |
| 25. | 138-8454M | [3] | SCREW-TRUSS HEAD(M4X0.7X10-MM) | |
| 26. | 3S-2093 | [4] | STRAP-CABLE | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 227-4012J | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS, CAPS & WASHERS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
