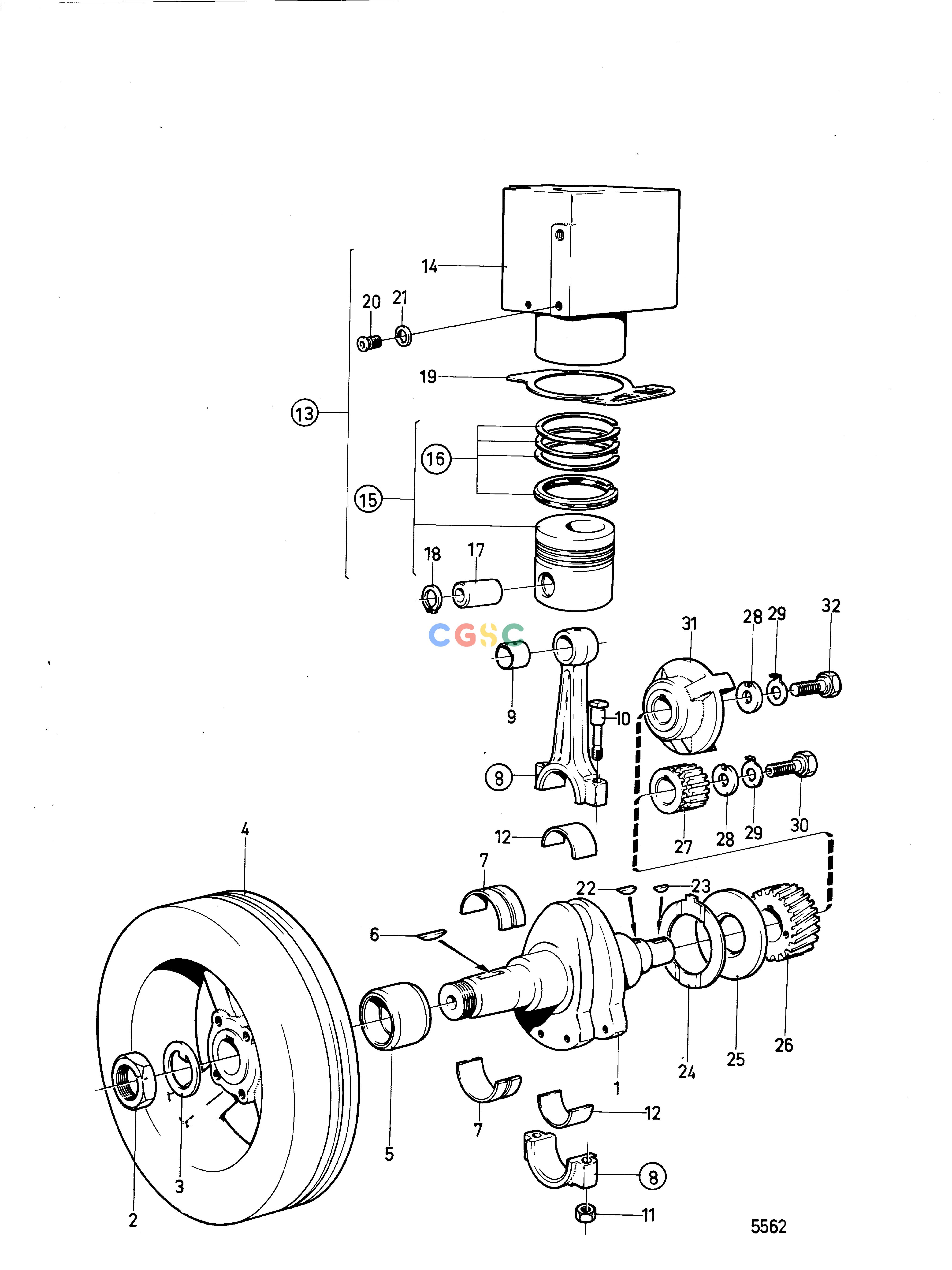

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BEngineCrankshaft and Related PartsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
812 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833372
|
[1] |
Crankshaft
|
|
| 2. |
10764
|
[1] |
Nut
|
|
| 3. |
15192
|
[1] |
Washer
|
|
| 4. |
833318
|
[1] |
Flywheel
|
|
| 5. |
803356
|
[1] |
Sealing ring
|
|
| 6. |
910133
|
[1] |
Woodruff key
|
|
| 7. |
875483
|
[2] |
Main bearing kit
|
Std D
|
| 7. |
875485
|
[2] |
Main bearing kit
|
0,25mm u.s
|
| 7. |
875486
|
[2] |
Main bearing kit
|
0,50mm u.s
|
| 7. |
875487
|
[2] |
Main bearing kit
|
0,75mm u.s
|
| 8. |
807039
|
[1] |
Connecting rod
|
|
| 9. |
803555
|
[1] |
Bushing
|
|
| 10. |
807040
|
[2] |
Connecting rod bolt
|
|
| 11. |
463643
|
[2] |
Nut
|
|
| 12. |
875491
|
[1] |
Big-end bearing kit
|
Std D
|
| 12. |
875492
|
[1] |
Big-end bearing kit
|
0,25mm u.s
|
| 12. |
875493
|
[1] |
Big-end bearing kit
|
0,50mm u.s
|
| 12. |
875494
|
[1] |
Big-end bearing kit
|
0,75mm u.s
|
| 13. |
875513
|
[1] |
Cylinder block
|
|
| 14. |
|
|
|
|
| 15. |
875551
|
[1] |
Piston kit
|
Std D
|
| 15. |
875579
|
[1] |
Piston
|
0,75mm o.s
|
| 16. |
875498
|
[1] |
Piston ring kit
|
Std D
|
| 16. |
875499
|
[1] |
Piston ring kit
|
0,75mm o.s
|
| 17. |
833185
|
[1] |
Gudgeon pin
|
|
| 18. |
914515
|
[2] |
Snap ring
|
|
| 19. |
833497
|
[1] |
Spacer
|
TH=0.2mm
|
| 19. |
833498
|
[1] |
Spacer
|
TH=0.3mm
|
| 20. |
807125
|
[1] |
Plug
|
|
| 21. |
18811
|
[1] |
Gasket
|
|
| 22. |
910121
|
[1] |
Woodruff key
|
|
| 23. |
910122
|
[1] |
Woodruff key
|
Early type, see group 4A
|
| 23. |
910121
|
[1] |
Woodruff key
|
Late type, see group 4A
|
| 24. |
803515
|
[2] |
Axial bearing
|
|
| 25. |
802502
|
[1] |
Support washer
|
|
| 26. |
405025
|
[1] |
Gear
|
|
| 27. |
802588
|
[1] |
Gear
|
For engine with reduction reverse gear., See group 4A
|
| 28. |
803225
|
[1] |
Washer
|
|
| 29. |
803226
|
[1] |
Lock washer
|
|
| 30. |
807041
|
[1] |
Lock screw
|
For engine with reduction reverse gear., See group 4A
|
| 31. |
834336
|
[1] |
Companion flange
|
For engine with monoshift reverse gear., See group 4A
|
| 32. |
959664
|
[1] |
Hexagon screw
|
For engine with monoshift reverse gear
|
