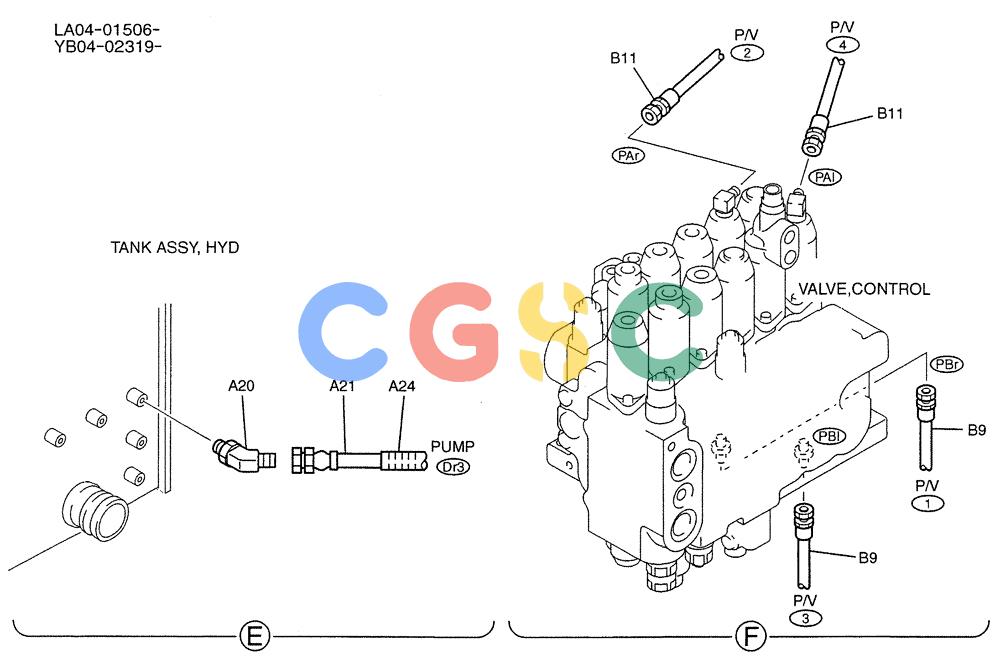

纽荷兰零件查询(E200SR) - CRAWLER EXCAVATOR BTW YB04-02319 - YB04-02550 (01-032[03]) - CONTROL LINES, REMOTE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
298 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB06H00015F1 | [1] | CONTROL LINES, PUMP | |
| A1. | YN50V00007F1 | [1] | VALVE | KOBASSY, INLINE |
| A2. | ZH22X06000 | [1] | HYD CONNECTOR | KOB |
| A3. | 2444Z2336 | [1] | HYD CONNECTOR | KOB |
| A4. | ZH32X06000 | [3] | 90 ELBOW,Male, 30° Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| A5. | ZH32X12000 | [2] | 90 ELBOW,Male, 30° Fl, PF 3/4" x PF 3/4", O-Ring | KOB |
| A6. | 2444Z2894 | [1] | 90 ELBOW | KOB |
| A7. | 2444Z2891 | [1] | HYD CONNECTOR | KOB |
| A8. | HH35X04004G3 | [1] | 90 ELBOW | KOB |
| A9. | HH55Q06006G1 | [2] | TEE | KOB |
| A10. | 2420R349D040 | [1] | HOSE,6.35mm ID x 400mm L | KOB |
| A11. | 2444R941D20 | [1] | FLEXIBLE HOSE | KOB |
| A12. | 2420R349D054 | [1] | FLEXIBLE HOSE,6.35 mm ID x 540.00 mm | KOB Superseded by part number: HX21E04054DX |
| A13. | ZX32M12040 | [1] | FLEXIBLE HOSE | KOB |
| A14. | 2444T2505 | [1] | HYD CONNECTOR | KOB |
| A15. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBCap |
| A16. | ZW16X10000 | [2] | WASHER | KOB |
| A17. | HH25R04004G5 | [1] | HYD CONNECTOR | KOB |
| A18. | ZE72X04000 | [1] | PLUG | KOB |
| A19. | ZH22X04006 | [1] | HYD CONNECTOR | KOB |
| A20. | ZH42X06000 | [1] | 45 ELBOW,Male, 30° Fl, PF 3/8" x PF 3/8", O-Ring | KOB |
| A21. | 2444R1119D200 | [1] | HOSE | KOB |
| A22. | PU13E01002DK | [1] | TUBE | KOB |
| A23. | PU13E01010D7 | [1] | TUBE | KOB |
| A24. | 2418Z1333D23 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1900mm Length | KOB |
| A28. | YY06H01002P1 | [2] | PLUG | KOB |
| A29. | HH55Q12012G3 | [1] | TEE | KOB |
| A30. | 2444Z3331 | [1] | ELEC CONNECTOR | KOB |
| A31. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB |
| . . | YB62H00004F1 | [1] | CONTROL LINES, PROPEL | |
| B1. | YX30V00004F1 | [1] | VALVE | KOBASSY, PILOT, Serial Range: LA04-01506-LA04-01545 Superseded by part number: YX30V00004F2 |
| B1. | YX30V00004F2 | [1] | PILOT VALVE | KOBASSY, Start Serial: LA04-01546 |
| B2. | LC52S00011P1 | [2] | SENSOR | KOBPRESS (L. P.) Superseded by part number: LC52S00019P1 |
| B2-1. | ZD12P01100 | [1] | O-RING | KOB |
| B4. | ZW16K10000 | [4] | WASHER | KOB |
| B5. | HH25X04004G2 | [1] | HYD CONNECTOR | KOB |
| B7. | 2420R349D030 | [1] | HOSE,300.00 mm | KOB |
| B8. | 2444R1119D038 | [1] | FLEXIBLE HOSE | KOB |
| B9. | 2420R537D300 | [2] | HOSE,9.60mm ID x 3000mm L | KOB Superseded by part number: HX21E06300DX |
| B10. | ZS28C10030 | [4] | SCREW,Hex Socket Head, M10 x 30mm | KOBCAP |
| B11. | 2420R537D380 | [2] | HOSE,9.60mm ID x 3800mm L | KOB |
