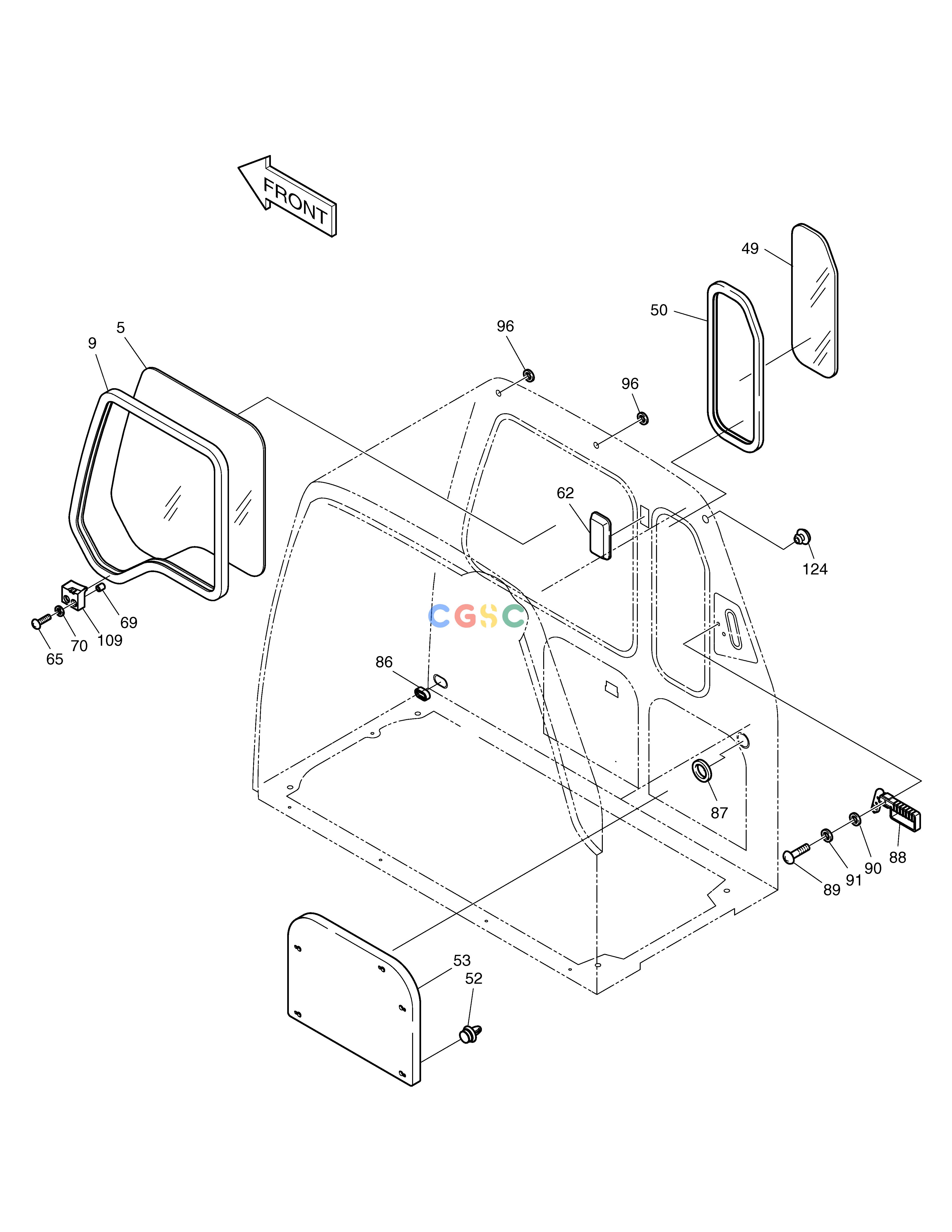

斗山零件查询CABIN(3) SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
526 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
622-00210H
|
[1] |
CABIN ASS'Y
|
|
| -. |
220101-00693
|
[1] |
|
|
| -. |
220101-00693A
|
[1] |
|
|
| -. |
220101-00693B
|
[1] |
|
|
| -. |
220101-00693G
|
[1] |
|
|
| 109. |
161-00449
|
[1] |
STOPPER
|
|
| 124. |
160-00083
|
[1] |
BUSHING;RUBBER
|
|
| 49. |
903-00060
|
[1] |
GLASS;R.H
|
|
| 5. |
903-00051
|
[1] |
GLASS;FRONT(R.H)
|
|
| 50. |
198-00044
|
[1] |
RUBBER;H
|
|
| 52. |
2124-1607
|
[6] |
CLIP;TRIM
|
|
| 53. |
161-00429A
|
[1] |
PAD;REAR(R.H)
|
|
| 62. |
2534-9063
|
[1] |
LAMP;ROOM
|
|
| 65. |
S3450993
|
[2] |
SCREW
|
|
| 69. |
2140-1338
|
[2] |
PIPE,SPACER
|
|
| 70. |
2114-1058D52
|
[2] |
WASHER
|
|
| 86. |
2110-1347
|
[1] |
BUSH
|
|
| 87. |
2110-1349
|
[1] |
BUSH 188L
|
|
| 88. |
2199-9058
|
[1] |
HAMMER
|
|
| 89. |
S3458582
|
[2] |
SCREW M4X0.7X12
|
|
| 9. |
198-00034
|
[1] |
H-RUBBER 3800L
|
|
| 90. |
S5000111
|
[2] |
WASHER;PLAIN M4
|
|
| 91. |
S5102101
|
[2] |
WASHER;SPRING M4
|
|
| 96. |
2160-1310
|
[2] |
BUSHING,RUBBER
|
|
