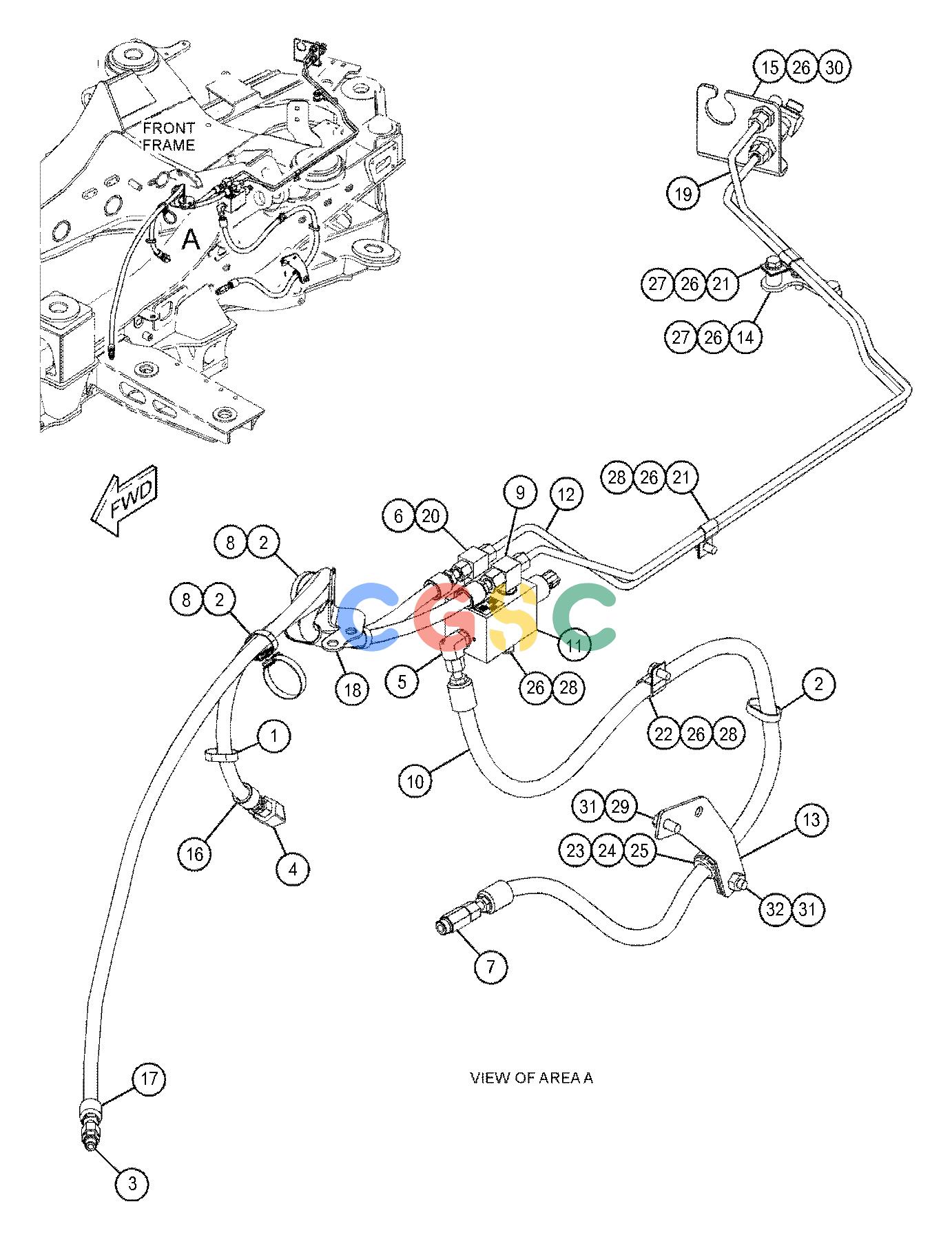

卡特零件查询（730） 523-0469: CONTROL GP-DIFFERENTIAL LOCK
广数供应链运营团队, 15 02月, 2025，浏览：
249 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0455 | [1] | STRAP | |
| 2. | 6U-0456 | [7] | STRAP | |
| 3. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 4. | 148-8374 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 5. | 148-8378 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 6. | 150-4050 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 8T-0788 | [1] | ELBOW | |
| 7. | 164-5605 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-0076 | [1] | CONNECTOR | |
| 8. | 290-5562 | [2] | MOUNT(DUAL SWIVEL) | |
| 9. | 297-7930 | [1] | TEE AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 297-7929 | [1] | TEE | |
| 10. | 428-7255I | [1] | HOSE AS | |
| 11. | 432-1661 | [1] | VALVE & MTG GP-DIFF LOCK | |
| | 6E-5066 | [2] | SCREEN(HYDRAULIC) | |
| | 393-1012J | [1] | VALVE GP-SOLENOID(24-VDC)(DIFFERENTIAL LOCK) | |
| 12. | 444-6795 | [1] | TUBE AS | |
| 13. | 445-9936 | [1] | PLATE AS | |
| | 8T-3597M | [1] | NUT-WELD(M12X1.75-THD) | |
| 14. | 446-1855 | [1] | BRACKET AS | |
| | 9R-2672M | [1] | BOSS-THREADED(M10X1.5X120-MM) | |
| 15. | 513-4401Y | [1] | ADAPTER GP-MOUNTING | |
| 16. | 525-0111I | [1] | HOSE AS | |
| 17. | 525-0112I | [1] | HOSE AS | |
| 18. | 525-1915 | [1] | BRACKET | |
| 19. | 526-1912 | [1] | TUBE AS | |
| 20. | 150-3056 | [1] | TEE AS | |
| | 6V-8397 | [3] | SEAL-O-RING | |
| | 6V-8788 | [1] | TEE | |
| 21. | 2R-1866 | [2] | CLAMP | |
| 22. | 3S-8665 | [1] | CLIP(LOOP) | |
| 23. | 5P-7462 | [1] | CLIP(SLOT) | |
| 24. | 5P-7463 | [1] | CLIP(TAB) | |
| 25. | 6V-0683 | [1] | GROMMET | |
| 26. | 8T-4121 | [9] | WASHER-HARD(11X21X2.5-MM THK) | |
| 27. | 8T-4136M | [3] | BOLT(M10X1.5X25-MM) | |
| 28. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 29. | 8T-4192M | [1] | BOLT(M12X1.75X25-MM) | |
| 30. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 31. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 32. | 8T-4956M | [1] | BOLT(M12X1.75X35-MM) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 508-9040J | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RINGS) |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
