纽荷兰零件查询(E200SR) - CRAWLER EXCAVATOR BTW YB04-02319 - YB04-02550 (01-036) - CAB INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
809 次

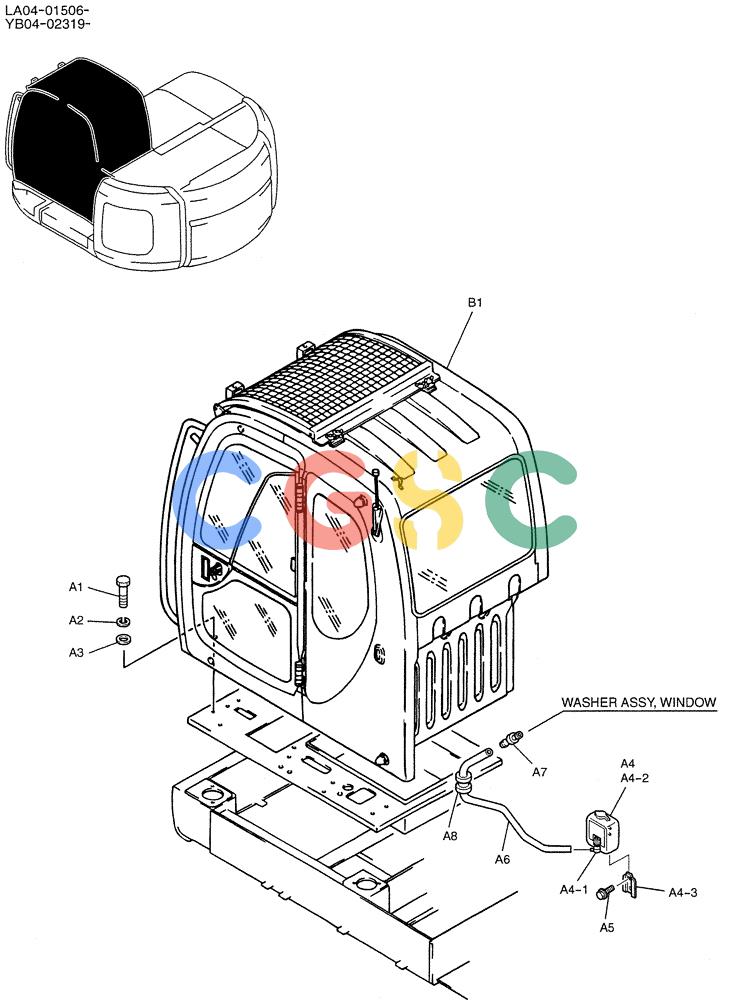

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | ZS18C10025 | [5] | SCREW,Hex, M10 x 25mm | KOB |
| A2. | ZW26X10000 | [5] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| A3. | ZW16H10000 | [5] | WASHER | KOB |
| A4. | YT54C00003F1 | [1] | TANK | KOBASSY, WATER |
| A4-1. | YT54C00003S001 | [1] | ELECTRIC MOTOR | KOBASSY |
| A4-2. | YT54C00003S002 | [1] | TANK | KOBASSY, WATER |
| A4-3. | YT54C00003S003 | [1] | BRACKET | KOB Superseded by part number: 2416P7292 |
| A5. | ZM61C06016 | [2] | BOLT | KOBSEMS |
| A6. | YT02C01126D5 | [1] | TUBE | KOB Superseded by part number: YT02C01126D6 |
| A7. | YT02C01282P1 | [1] | ELEC CONNECTOR | KOB |
| A8. | YN03M01159P1 | [1] | GROMMET | KOB |
| B1. | YN02C00076F1 | [1] | CAB | KOBASSY, SEE FIG. 01-037-01 TO 01-037-04 Superseded by part number: YN02C00076F1%K1 |
