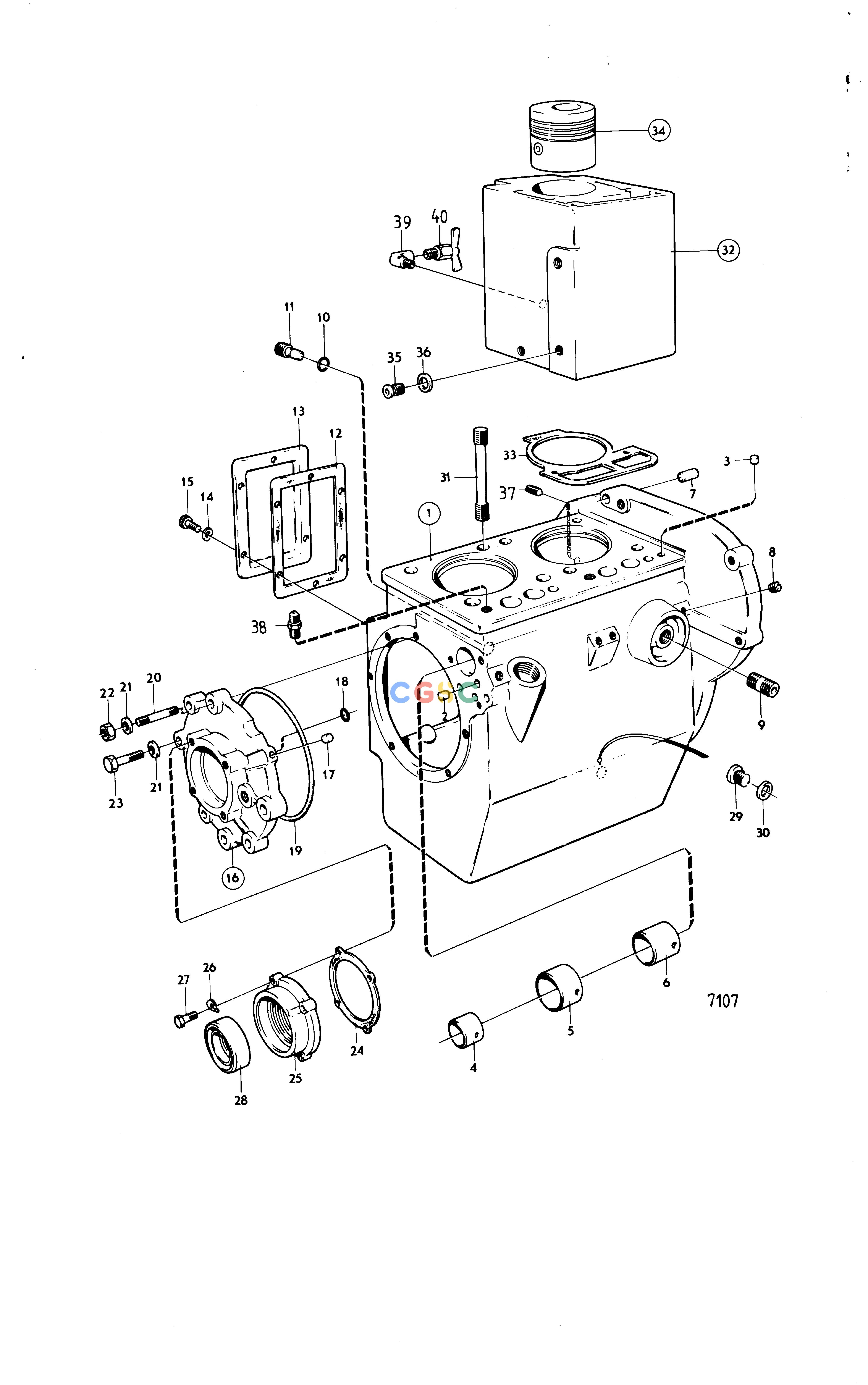

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BEngineCylinder Block: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
265 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833167
|
[1] |
Crankcase
|
|
| 2. |
955075
|
[3] |
Plug
|
|
| 3. |
955073
|
[1] |
Plug
|
|
| 4. |
803330
|
[1] |
Camshaft bushing
|
|
| 5. |
833158
|
[1] |
Bearing
|
|
| 6. |
405177
|
[1] |
Bearing
|
|
| 7. |
950586
|
[2] |
Pin
|
|
| 8. |
807045
|
[3] |
Plug
|
|
| 9. |
418440
|
[1] |
Nipple
|
|
| 10. |
947789
|
[1] |
O-ring
|
|
| 11. |
897271
|
[1] |
Set screw
|
|
| 12. |
833792
|
[2] |
Gasket
|
|
| 13. |
803258
|
[2] |
Inspection lid
|
|
| 14. |
941907
|
[12] |
Spring washer
|
|
| 15. |
955294
|
[12] |
Hexagon screw
|
MO-23007
|
| 15. |
959219
|
[12] |
Hex. socket screw
|
MO 23008-
|
| 16. |
833390
|
[1] |
Bearing cover
|
|
| 17. |
955074
|
[1] |
Plug
|
|
| 18. |
946742
|
[1] |
O-ring
|
|
| 19. |
946743
|
[1] |
O-ring
|
|
| 20. |
944722
|
[1] |
Stud
|
Engine with dynastart.
|
| 20. |
946928
|
[1] |
Stud
|
Engine with starter motor
|
| 21. |
946075
|
[9] |
Washer
|
|
| 22. |
963107
|
[1] |
Lock nut
|
|
| 23. |
955322
|
[4] |
Hexagon screw
|
L=50mm
|
| 23. |
955318
|
[1] |
Hexagon screw
|
Engine with starter motor., L=30mm
|
| 23. |
955320
|
[1] |
Hexagon screw
|
Engine with starter motor., L=40mm
|
| 23. |
955326
|
[2] |
Hexagon screw
|
Engine with starter motor., L=70mm
|
| 24. |
803359
|
[1] |
Gasket
|
|
| 25. |
803236
|
[1] |
Cover
|
|
| 26. |
941907
|
[4] |
Spring washer
|
|
| 27. |
955296
|
[4] |
Hexagon screw
|
|
| 28. |
803356
|
[1] |
Sealing ring
|
|
| 29. |
807044
|
[1] |
Plug
|
MO-13532, 13619-13799
|
| 29. |
833521
|
[1] |
Plug
|
MO 13533-13618, 13800-
|
| 30. |
957181
|
[1] |
Gasket
|
MO 13533-13618, 13800-
|
| 31. |
897251
|
[8] |
Stud
|
|
| 32. |
875513
|
[2] |
Cylinder block
|
|
| 33. |
833497
|
[2] |
Spacer
|
TH=0.2mm
|
| 33. |
833498
|
[2] |
Spacer
|
TH=0.3mm
|
| 34. |
|
|
|
|
| 35. |
807125
|
[2] |
Plug
|
|
| 36. |
18811
|
[2] |
Gasket
|
|
| 37. |
807054
|
[1] |
Set screw
|
See group 2C
|
| 38. |
807027
|
[2] |
Nipple
|
|
| 39. |
807081
|
[1] |
Elbow nipple
|
|
| 40. |
807036
|
[2] |
Shut-off cock
|
|
