日立零件查询（CX1000）ADJUSTER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
302 次

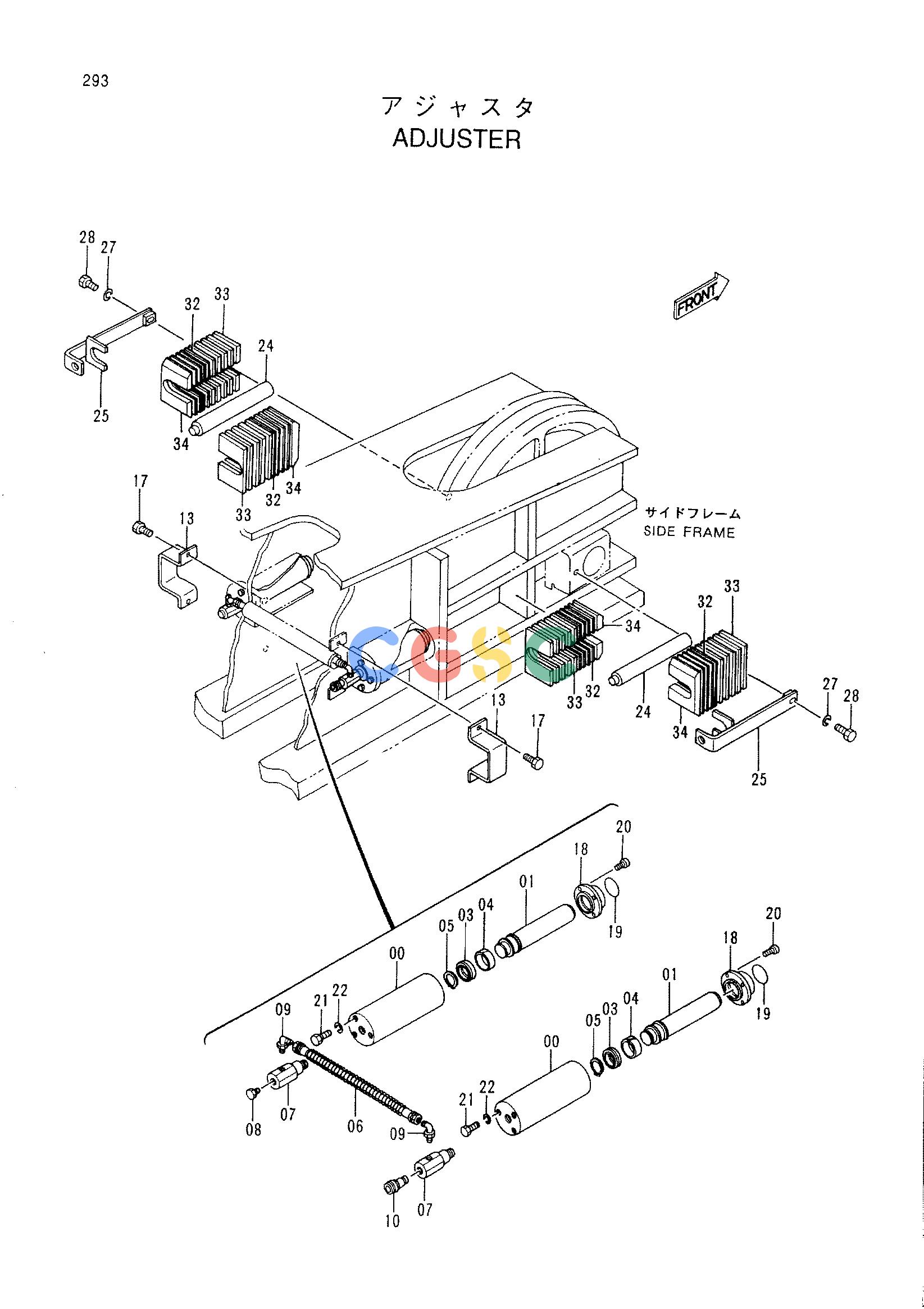

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | +++++++ | [2] | ADJUSTER | |
| 00. | 3028106 | [2] | CYL. | |
| 01. | 3026289 | [2] | ROD;PISTON | |
| 03. | 4112336 | [2] | PACKING;U-RING | |
| 04. | 4106879 | [2] | RING;WEAR | |
| 05. | 991342 | [2] | RING;RETAINING | |
| 06. | 4222983 | [1] | HOSE | |
| 07. | 4189708 | [2] | ADAPTER;S | |
| 08. | 447483 | [1] | PLUG | |
| 09. | 94-1401 | [2] | ELBOW;S | |
| 10. | 4105765 | [1] | JOINT;SELF-SEAL | |
| 13. | 4336631 | [2] | COVER | |
| 17. | J011020 | [4] | BOLT;SEMS | |
| 18. | 4144303 | [2] | FLANGE | |
| 19. | A810045 | [2] | O-RING | |
| 20. | M340828 | [8] | BOLT;SOCKET | |
| 21. | J901230 | [6] | BOLT | |
| 22. | A590912 | [6] | WASHER;SPRING | |
| 24. | 4222984 | [2] | ROD | |
| 25. | 9756842 | [2] | BRACKET | |
| 27. | A590916 | [2] | WASHER;SPRING | |
| 28. | J901660 | [2] | BOLT | |
| 32. | 4222985 | [14] | SHIM 6 | |
| 33. | 4228352 | [20] | SHIM 12 | |
| 34. | 4228351 | [4] | SHIM 25 | |
