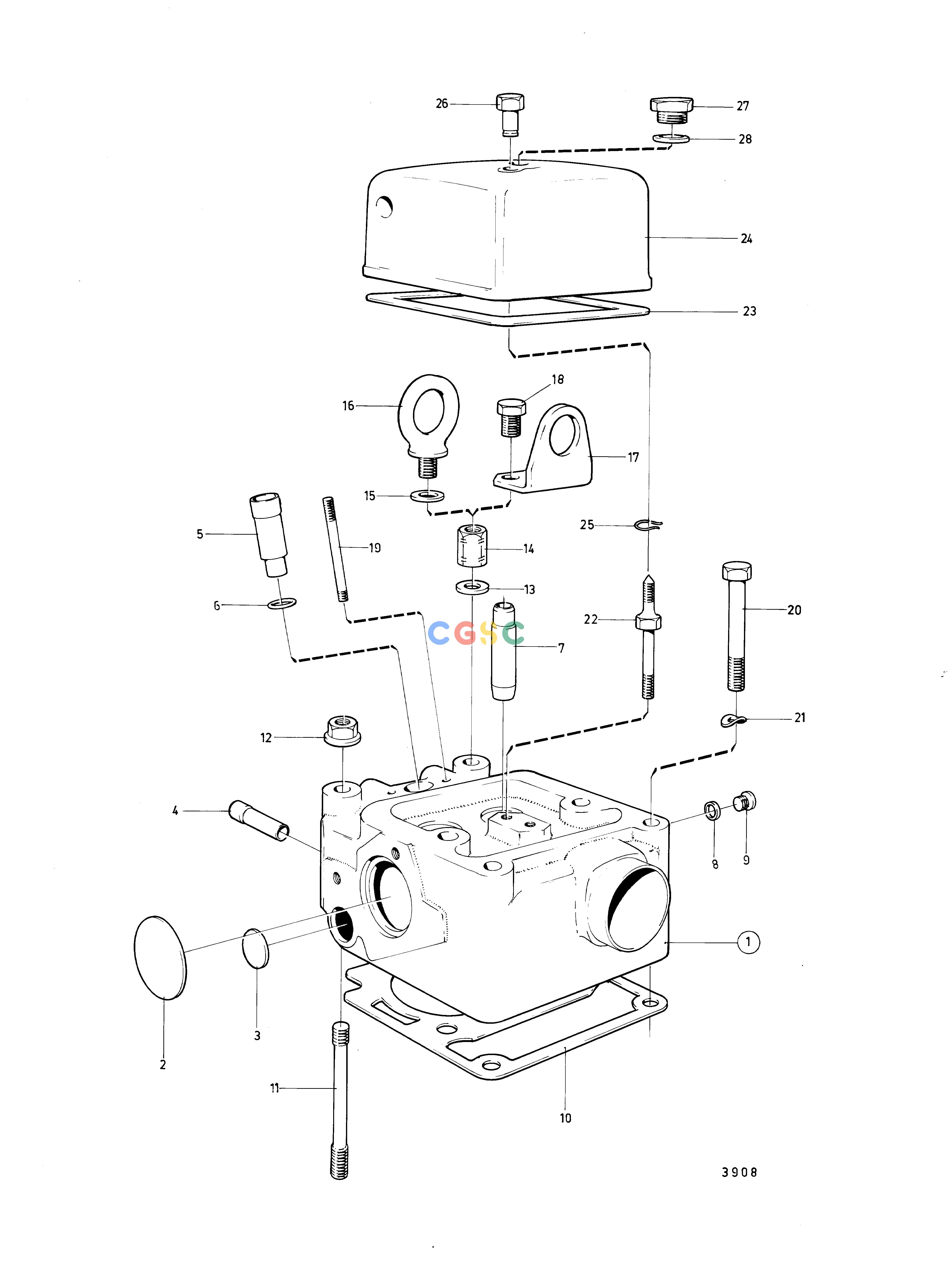

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BEngineCylinder Head: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
498 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833153
|
[1] |
Cylinder head
|
|
| 2. |
941400
|
[2] |
Expansion plug
|
|
| 3. |
941399
|
[1] |
Expansion plug
|
|
| 4. |
807229
|
[1] |
Nozzle
|
|
| 5. |
897170
|
[1] |
Nozzle sleeve
|
|
| 6. |
803068
|
[1] |
O-ring
|
|
| 7. |
419653
|
[1] |
Valve guide, intake
|
|
| 7. |
829867
|
[1] |
Guide sleeve, exhaust
|
|
| 8. |
18811
|
[2] |
Gasket
|
|
| 9. |
807125
|
[2] |
Plug
|
|
| 10. |
833070
|
[1] |
Gasket
|
|
| 11. |
897251
|
[4] |
Stud
|
|
| 12. |
943414
|
[3] |
Nut
|
|
| 13. |
942058
|
[1] |
Washer
|
|
| 14. |
941775
|
[1] |
Nut
|
|
| 15. |
955895
|
[1] |
Washer
|
|
| 16. |
185301
|
[1] |
Lifting eye
|
|
| 19. |
952991
|
[2] |
Stud
|
See group 2C
|
| 20. |
955330
|
[2] |
Hexagon screw
|
|
| 21. |
941908
|
[2] |
Spring washer
|
|
| 22. |
833569
|
[1] |
Screw
|
|
| 23. |
802399
|
[1] |
Gasket
|
|
| 24. |
833268
|
[1] |
Valve cover
|
|
| 25. |
403098
|
[1] |
Spring ring
|
|
| 26. |
150146
|
[1] |
Nut
|
|
| 27. |
833496
|
[1] |
Plug
|
|
| 28. |
957191
|
[1] |
Gasket
|
|
