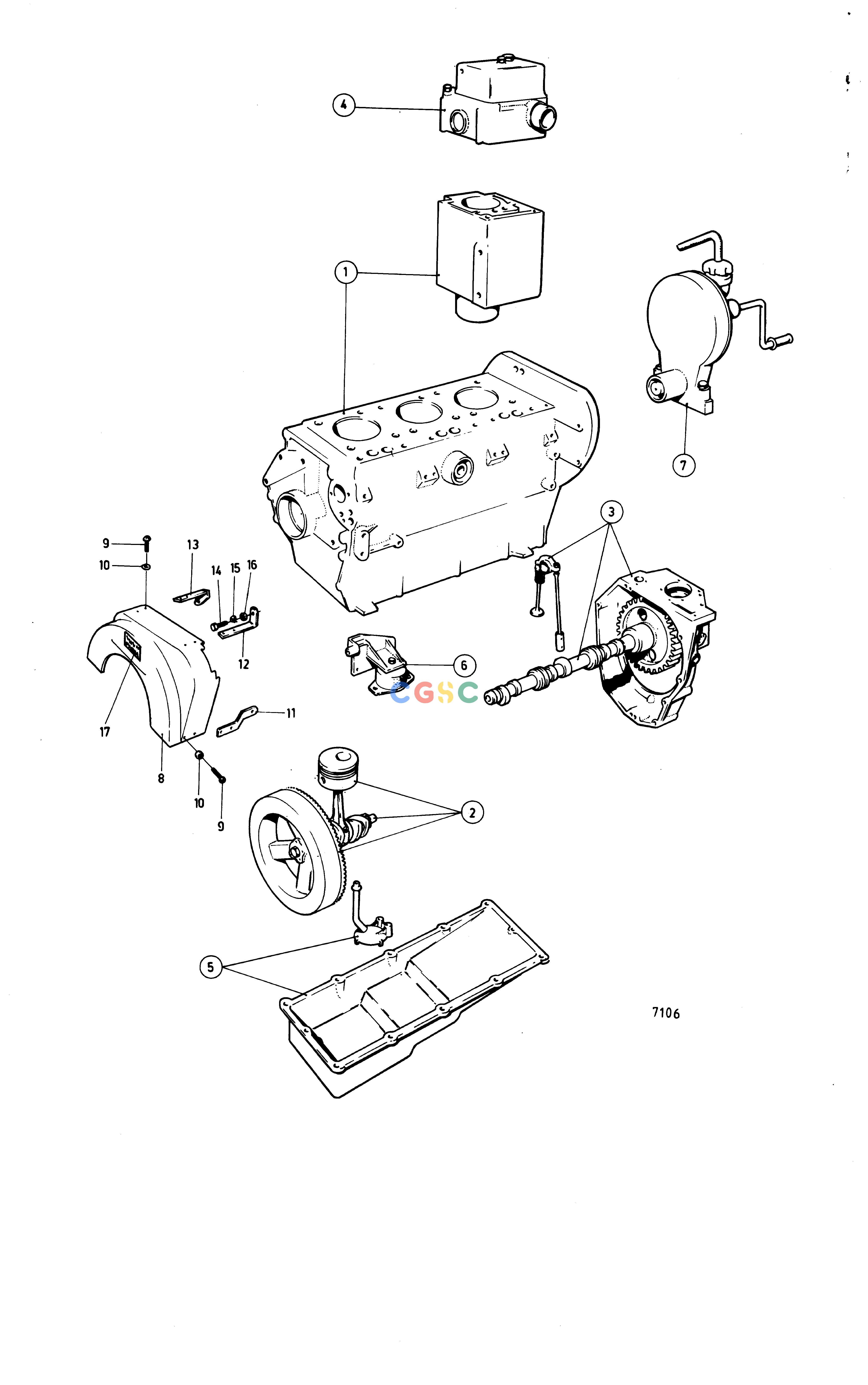

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BEngineEngine and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
904 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7742090_004
|
|
cylinder block
|
|
| 2. |
7742090_007
|
|
crankshaft and related parts
|
|
| 2. |
|
|
|
|
| 3. |
7742090_010
|
|
camshaft and
|
|
| 3. |
|
|
|
|
| 4. |
7742090_011
|
|
cylinder head
|
|
| 5. |
7742090_014
|
|
lubricating system
|
|
| 6. |
7742090_018
|
|
engine suspension
|
|
| 7. |
7742090_020
|
|
manual starter earlier prod
|
|
| 7. |
7742090_021
|
|
manual starter later prod
|
|
| 8. |
833216
|
[1] |
Protecting casing
|
|
| 9. |
956090
|
[8] |
Cross recessed screw
|
|
| 10. |
955892
|
[8] |
Washer
|
|
| 11. |
833367
|
[1] |
Anchorage
|
|
| 11. |
833229
|
[1] |
Anchorage
|
|
| 12. |
833230
|
[1] |
Anchorage
|
|
| 13. |
833231
|
[1] |
Anchorage
|
|
| 14. |
955317
|
[1] |
Hexagon screw
|
|
| 15. |
941908
|
[1] |
Spring washer
|
|
| 16. |
946075
|
[1] |
Washer
|
|
| 17. |
827259
|
[1] |
Decal
|
|
