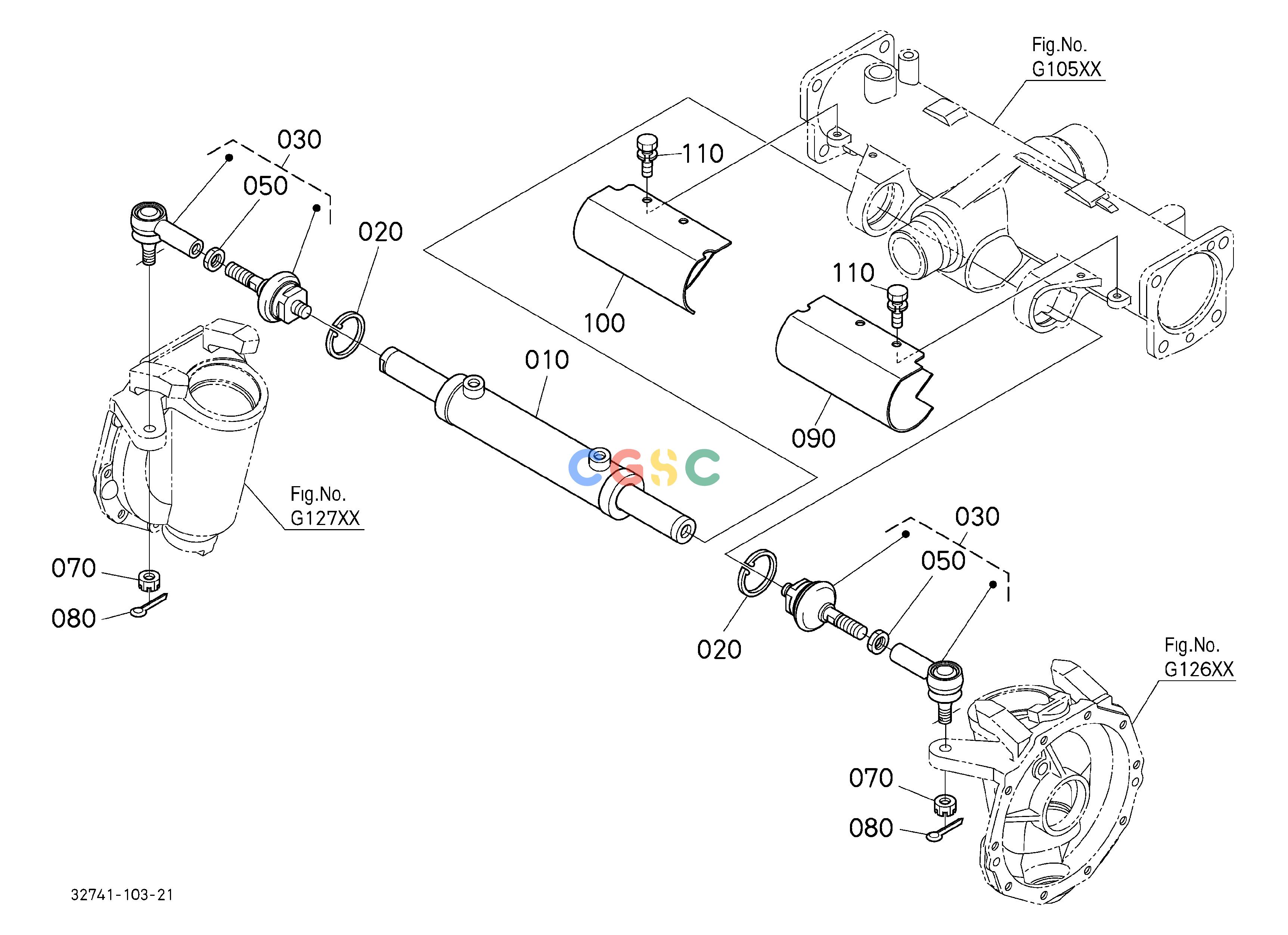

久保田零件查询H12000 STEERING LINKAGE STEERINGEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
508 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20057302
|
[1] |
CYLINDER,ASSY(STRG.)
|
7.2600(lbs); 3.300
|
| 020. |
0461100520
|
[2] |
CIR-CLIP,INTERNAL
|
0.0198(lbs); 0.009
|
| 030. |
6C20057410
|
[2] |
ROD,TIE STEERING
|
1.2320(lbs); 0.560
|
| 030. |
6C20057412
|
[2] |
ROD,TIE STEERING
|
1.2320(lbs); 0.560
|
| 030. |
6C43057412
|
[2] |
ROD,TIE
|
1.3090(lbs); 0.595
|
| 050. |
K256101640
|
[2] |
HEX NUT
|
0.0396(lbs); 0.018
|
| 070. |
3824012830
|
[2] |
NUT,SLOTTED
|
0.0176(lbs); 0.008
|
| 080. |
0551150330
|
[2] |
PIN SPLIT
|
0.0110(lbs); 0.005
|
| 090. |
6C20057483
|
[1] |
COVER LH,STEERING
|
0.9900(lbs); 0.450
|
| 090. |
6C20057484
|
[1] |
COVER LH,STEERING
|
0.9900(lbs); 0.450
|
| 100. |
6C20057493
|
[1] |
COVER RH,STEERING
|
0.9900(lbs); 0.450
|
| 100. |
6C20057494
|
[1] |
COVER RH,STEERING
|
0.9900(lbs); 0.450
|
| 110. |
0112350816
|
[4] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
