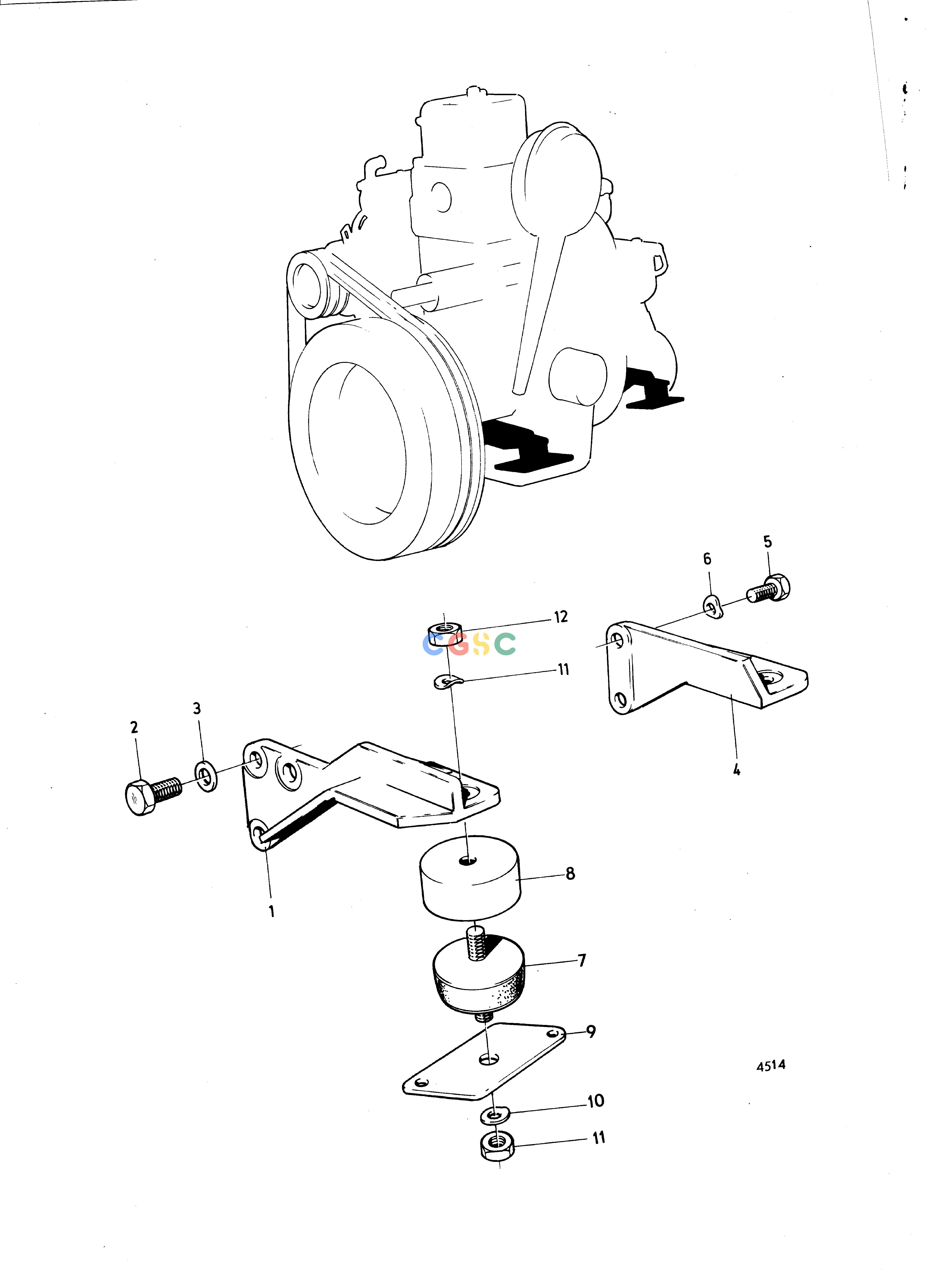

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BEngineEngine SuspensionEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
736 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833246
|
[1] |
Engine bracket
|
Narrow brackets. spec 867001, 867002, 867091
|
| 1. |
833575
|
[1] |
Engine bracket
|
Wide brackets. spec 867140, 867141, 867142, 867229., Obsolete part, S.B
|
| 1. |
833247
|
[1] |
Engine bracket
|
Narrow brackets. spec 867001, 867002, 867091., P
|
| 1. |
833576
|
[1] |
Engine bracket
|
Wide brackets. spec 867140, 867141, 867142, 867229., P
|
| 2. |
955322
|
[4] |
Hexagon screw
|
L=50mm
|
| 2. |
955320
|
[2] |
Hexagon screw
|
L=40mm
|
| 3. |
946075
|
[6] |
Washer
|
|
| 4. |
803428
|
[1] |
Bracket
|
Narrow brackets. spec 867001, 867002, 867091., S.B
|
| 4. |
833540
|
[1] |
Engine bracket
|
Wide brackets. spec 867140, 867141, 867142, 867229., Replaced by 833540., (833572) SB
|
| 4. |
897363
|
[1] |
Bracket
|
Narrow brackets. spec 867001, 867002, 867091., P
|
| 4. |
833541
|
[1] |
Engine bracket
|
Wide brackets. spec 867140, 867141, 867142, 867229., P
|
| 5. |
955317
|
[2] |
Hexagon screw
|
L=25mm
|
| 5. |
955332
|
[1] |
Hexagon screw
|
L=120mm
|
| 5. |
192357
|
[1] |
Screw
|
L=115mm
|
| 6. |
941908
|
[2] |
Spring washer
|
|
| 6. |
940109
|
[2] |
Toothed washer
|
|
| 7. |
833720
|
[4] |
Rubber cushion
|
Soft rubber blocks.
|
| 7. |
833625
|
[4] |
Rubber cushion
|
Hard rubber blocks., Narrow brackets.
|
| 8. |
807228
|
[4] |
Sleeve
|
|
| 9. |
833571
|
[4] |
Bracket
|
Soft rubber blocks., Hard rubber blocks.
|
| 9. |
807226
|
[4] |
Attaching plate
|
For narrow brackets and hard rubber blocks.
|
| 10. |
940280
|
[8] |
Spring washer
|
|
| 11. |
955850
|
[8] |
Hexagon nut
|
|
