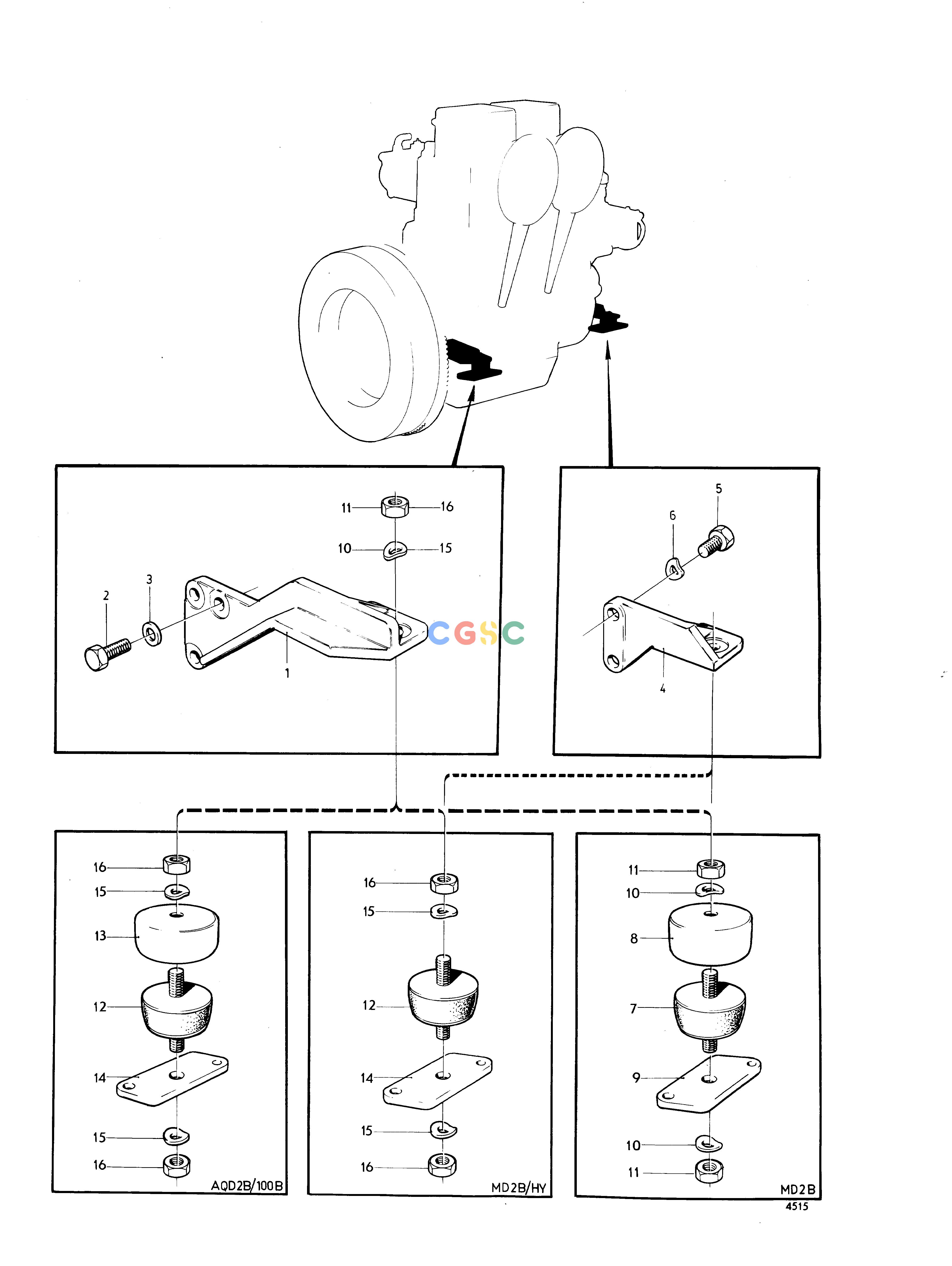

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BEngineEngine Suspension: CEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
642 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833575
|
[1] |
Engine bracket
|
Wide brackets., MD2B spec 867143, 867144, 867145. MD2B/HY spec 867120, 867151. AQD2B spec 867105, 86
|
| 1. |
833576
|
[1] |
Engine bracket
|
Wide brackets., Spec 867122, 867230., MD2B spec 867143, 867144, 867145. MD2B/HY spec 867120, 867151.
|
| 2. |
955322
|
[4] |
Hexagon screw
|
L=50mm
|
| 2. |
955318
|
[2] |
Hexagon screw
|
Narrow brackets., Spec 867007, 867008, 867012, 867094., MD2B spec 867143, 867144, 867145. MD2B/HY sp
|
| 3. |
946075
|
[6] |
Washer
|
|
| 12. |
833720
|
[2] |
Rubber cushion
|
|
| 13. |
807228
|
[2] |
Sleeve
|
|
| 14. |
833571
|
[2] |
Bracket
|
|
| 15. |
940280
|
[4] |
Spring washer
|
|
| 16. |
955850
|
[4] |
Hexagon nut
|
|
