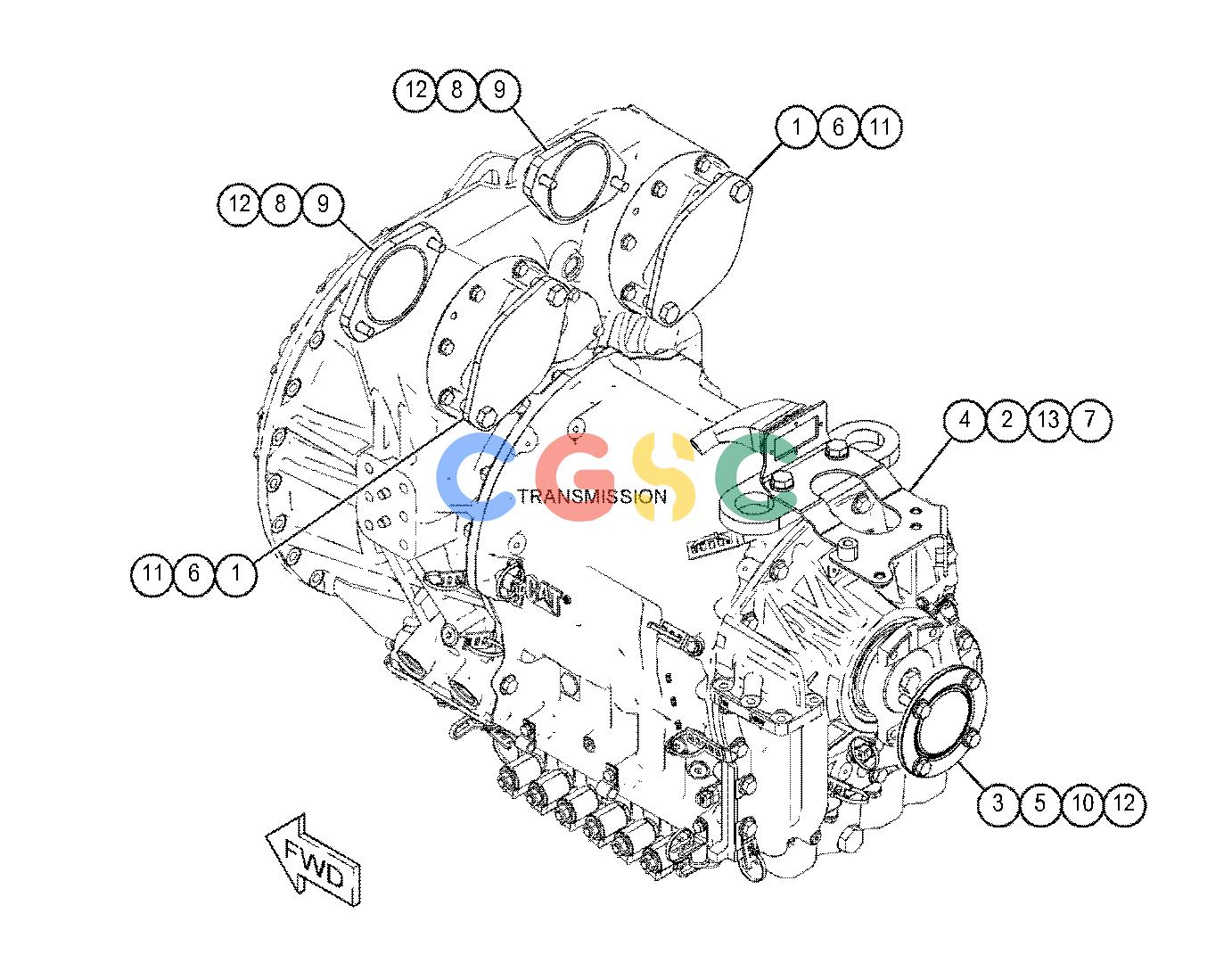

卡特零件查询（730） 546-4239: COVER GP-TRANSMISSION
广数供应链运营团队, 15 02月, 2025，浏览：
169 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5M-1152 | [2] | COVER | |
| 2. | 304-9073 | [1] | PLATE-LIFTING | |
| 3. | 380-7808 | [1] | COVER AS-REAR | |
| 4. | 546-1186 | [1] | BRACKET AS | |
| | 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | |
| | 9R-3572M | [1] | BOSS(M12X1.75X20-MM) | |
| 5. | 175-7900 | [1] | SEAL-O-RING | |
| 6. | 175-7904 | [2] | SEAL-O-RING | |
| 7. | 178-3707M | [2] | BOLT(M16X2X50-MM) | |
| 8. | 4M-0189 | [2] | SEAL-O-RING | |
| 9. | 8P-1438 | [2] | COVER | |
| 10. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 11. | 8T-4779M | [4] | BOLT(M16X2X35-MM) | |
| 12. | 8T-4956M | [8] | BOLT(M12X1.75X35-MM) | |
| 13. | 9X-8257 | [2] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
