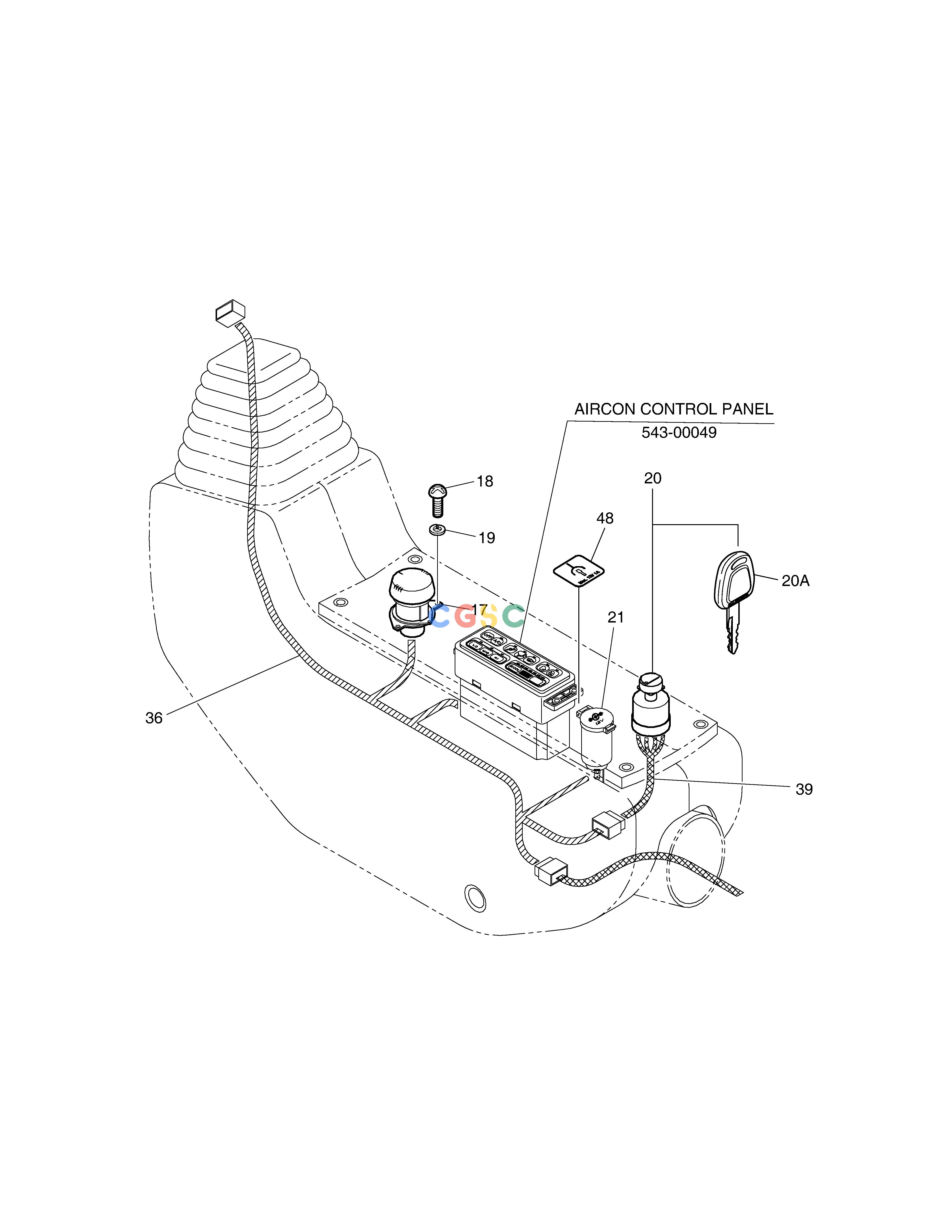

斗山零件查询ELECTRIC PARTS(2)-CONTROL STAND(R.H.) SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
828 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00161L
|
[-] |
ELECTRIC PARTS
|
|
| -. |
300619-00387
|
[-] |
|
|
| -. |
300619-00387A
|
[-] |
|
|
| -. |
300619-00387B
|
[-] |
|
|
| -. |
300619-00387E
|
[-] |
|
|
| -. |
300619-00387G
|
[-] |
|
|
| 17. |
2552-1004
|
[1] |
DIAL;E/G CONTROL
|
300661-00004
|
| 17. |
300661-00004
|
[1] |
DIAL,ENGINE CONTROL
|
|
| 18. |
S3450583
|
[2] |
SCREW
|
|
| 19. |
S5100103
|
[2] |
WASHER
|
|
| 20. |
K1001858A
|
[1] |
SWITCH;STARTER
|
|
| 20A. |
K1009605B
|
[2] |
KEY;STARTER SWITCH
|
|
| 21. |
527-00006
|
[1] |
SOCKET;12V POWER
|
|
| 36. |
530-00272
|
[1] |
HARNESS;STAND(R.H)
|
|
| 39. |
530-00150
|
[1] |
HARNESS;STARTER SWITCH
|
|
| 48. |
950205-03853
|
[1] |
DECAL;DC-DC CONVERTOR
|
|
