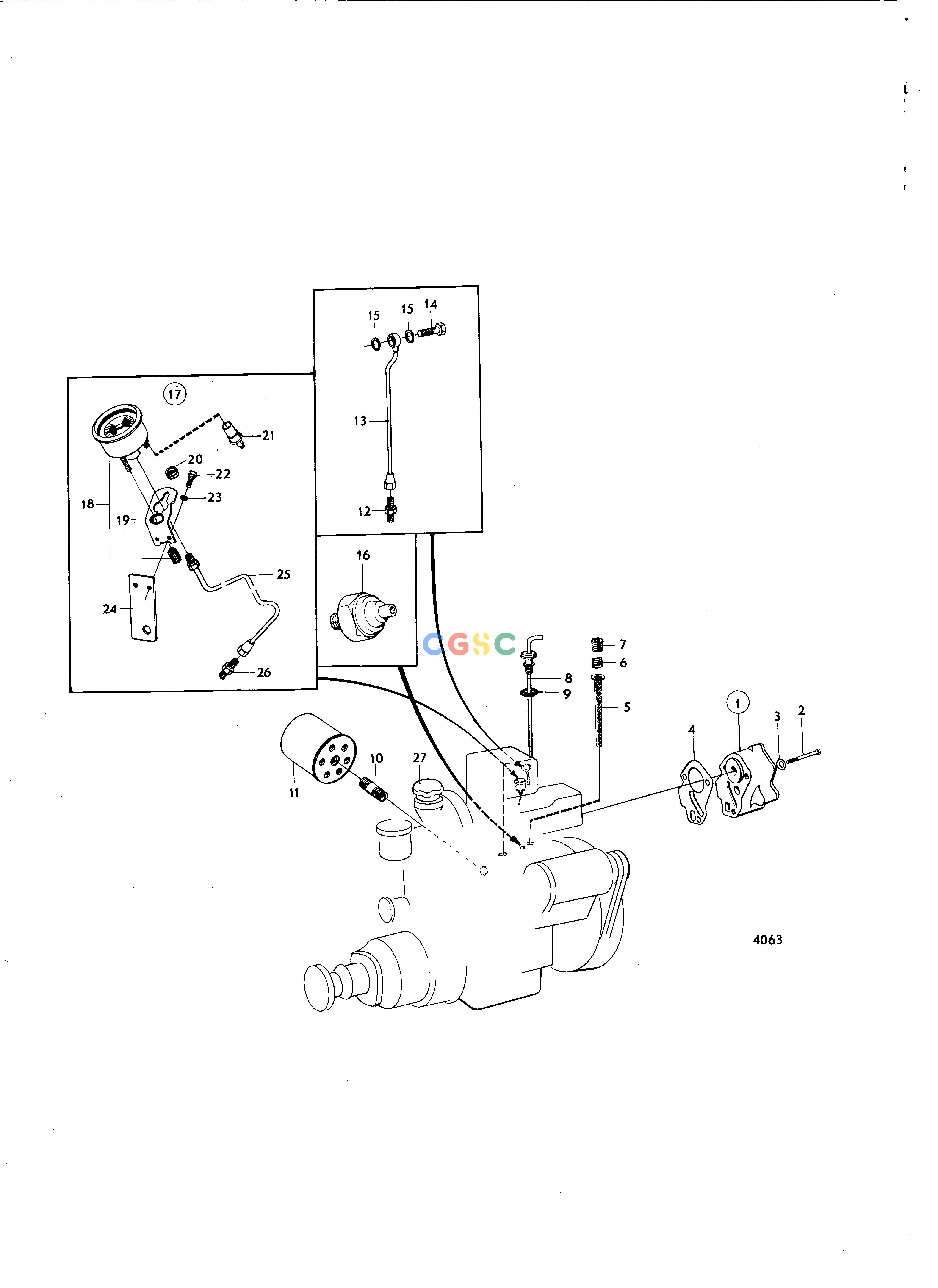

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BEngineLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
778 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
807476
|
[1] |
Oil pump
|
|
| 2. |
947235
|
[3] |
Screw
|
|
| 3. |
941907
|
[3] |
Spring washer
|
|
| 4. |
807475
|
[1] |
Gasket
|
|
| 5. |
833285
|
[1] |
Oil strainer
|
|
| 6. |
803426
|
[1] |
Spring
|
|
| 7. |
833282
|
[1] |
Plug
|
|
| 8. |
833705
|
[1] |
Oil dipstick
|
|
| 9. |
925053
|
[1] |
O-ring
|
|
| 10. |
418440
|
[1] |
Nipple
|
|
| 11. |
834337
|
[1] |
Oil filter
|
|
| 12. |
807027
|
[1] |
Nipple
|
|
| 13. |
807128
|
[1] |
Pipe
|
|
| 14. |
74033
|
[1] |
Hollow screw
|
|
| 15. |
957171
|
[2] |
Gasket
|
|
| 16. |
807078
|
[1] |
Pressure monitor
|
See group 3
|
| 17. |
807106
|
[1] |
Oil manometer
|
|
| 18. |
808171
|
[1] |
Oil pressure gauge
|
|
| 19. |
807108
|
[1] |
Brace
|
|
| 20. |
76783
|
[2] |
Rubber damper
|
|
| 21. |
808176
|
[1] |
Bulb socket
|
|
| 22. |
956074
|
[2] |
Cross recessed screw
|
|
| 23. |
955946
|
[2] |
Toothed washer
|
|
| 24. |
833447
|
[1] |
Anchorage
|
|
| 25. |
833448
|
[1] |
Tube
|
|
| 26. |
807027
|
[1] |
Nipple
|
|
| 27. |
7742090_019
|
|
oil filler cap
|
|
