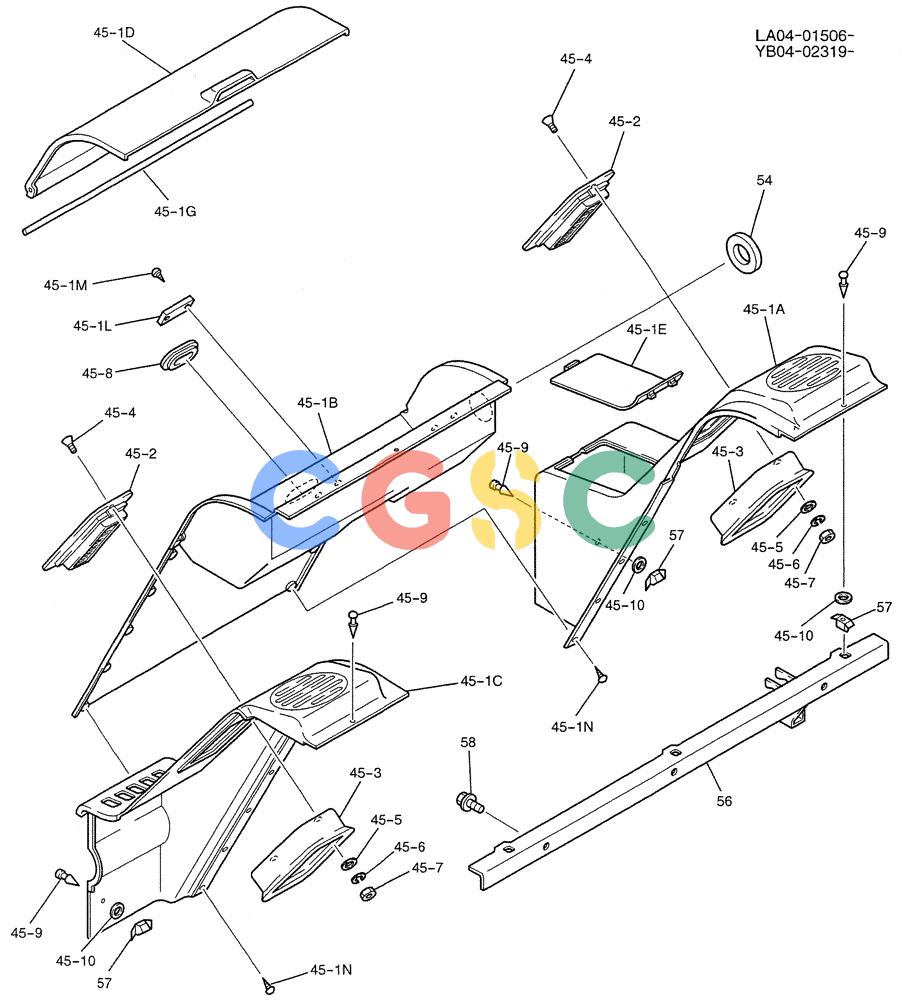

纽荷兰零件查询(E200SR) - CRAWLER EXCAVATOR BTW YB04-02319 - YB04-02550 (01-047[02]) - PANEL ASSY, INSTRUMENT (AIR-CON) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
454 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT17M00013F8 | [1] | PANEL ASSY, INSTRUMENT (AIR-CON) | |
| 45. | YT20M01073F5 | [1] | GUARD | KOBASSY |
| 45-1. | YT20M01035F1 | [1] | COVER | KOBASSY |
| 45-1A. | YT20M01087P1 | [1] | COVER | KOB |
| 45-1B. | YT20M01088P1 | [1] | COVER | KOB |
| 45-1G. | YT20M01089P1 | [1] | COVER | KOB |
| 45-1D. | YT20M01090P1 | [1] | COVER | KOB |
| 45-1E. | YT20M01095P1 | [1] | COVER | KOB |
| 45-1G. | YT20M01094P1 | [1] | PIN | KOB |
| 45-1L. | YT20M01035S011 | [2] | CATCH | KOB |
| 45-1M. | YT20M01035S012 | [4] | SCREW | KOBMACHINE Superseded by part number: ZS32T50010 |
| 45-1N. | YT20M01035S013 | [16] | SCREW | KOBMACHINE |
| 45-2. | YN20M01055P1 | [2] | GRILLE | KOB |
| 45-3. | YN20M01024P1 | [2] | SUPPORT | KOB |
| 45-4. | YN17M01033D1 | [4] | SCREW | KOBMACHINE |
| 45-5. | ZW16P05000 | [4] | WASHER | KOB |
| 45-6. | ZW26X05000 | [4] | LOCK WASHER | KOBLOCK |
| 45-7. | ZN18C05004 | [4] | NUT | KOB |
| 45-8. | PY03M01102P1 | [1] | GROMMET | KOB |
| 45-9. | YT20M01040P1 | [5] | BOLT | KOB |
| 45-10. | YT20M01041P1 | [5] | GROMMET | KOB |
| 50. | YT03M01061P1 | [1] | COVER | KOB |
| 54. | YT20M01081P1 | [1] | INSULATOR | KOB |
| 56. | YT20M01097P2 | [1] | BRACKET | KOB |
| 57. | YT20M01042P1 | [5] | CATCH | KOB |
| 58. | ZM22C08020 | [3] | BOLT | KOBSEMS |
