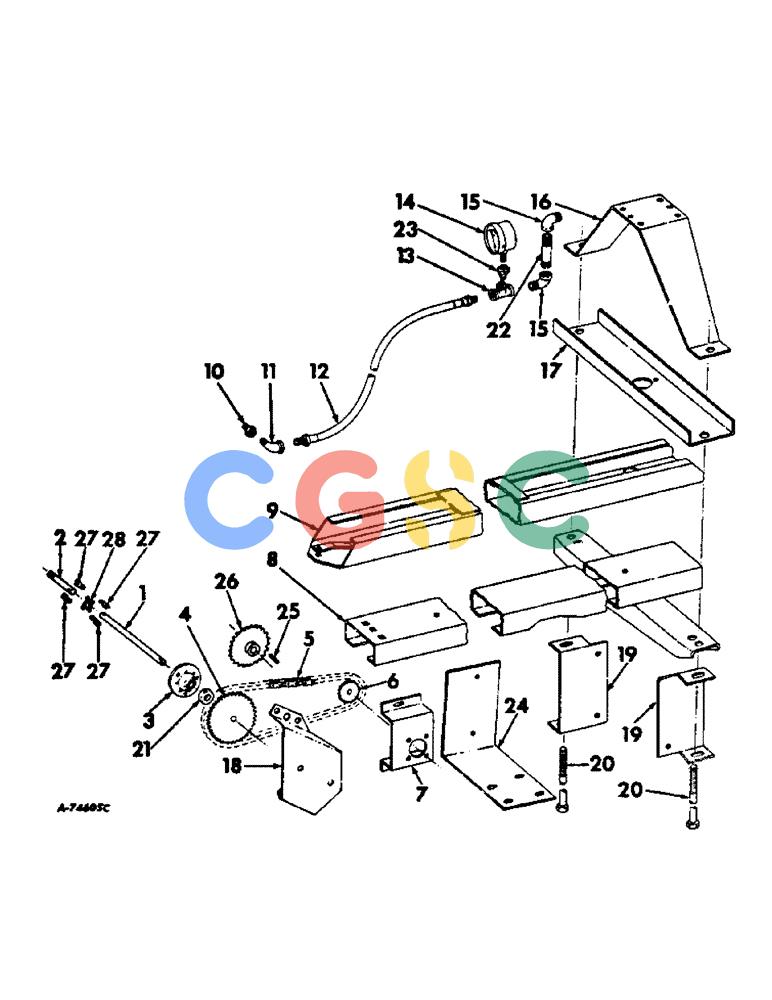

| 1. |
201658C1
|
[1] |
SHAFT
|
IH
pump drive
|
| . . |
120378
|
[1] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| 2. |
201657C1
|
[1] |
SHAFT
|
IH
pump drive connecting
|
| 3. |
668750R91
|
[1] |
BEARING ASSY
|
IH
ASSY, pump drive shaft
|
| 4. |
668134R1
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET, hydraulic pump drive
|
| . . |
19355R1
|
[1] |
LOCK PIN,3/16" x 2", Slotted
|
IH
PIN, 3/16" x 2", Slotted Superseded by part number: 438-11232
|
| 6. |
668133R1
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET, hyd pump driven, for hydraulic bale tension device only
|
| . . |
222892
|
[1] |
SCREW,Hex Soc, #10-24 x 1/2"
|
IH
10-24 x 1/2 hex-soc-hd set Superseded by part number: 483-6108
|
| 7. |
674364R1
|
[1] |
SUPPORT
|
IH
hyd tension pump Superseded by part number: 210517C1
|
| . . |
17351R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8-16 x 1 C-Z sq-nk crg Superseded by part number: 88682
|
| . . |
120382
|
[2] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
469668R1
|
[2] |
WASHER
|
IH
13/32 x 3/4 x 16 ga C-Z Superseded by part number: 86632580
|
| 8. |
674359R1
|
[1] |
CHANNEL
|
IH
ASSY, lower tension
|
| . . |
18508R1
|
[3] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 znd sq-nk crg Superseded by part number: 86508748
|
| . . |
120377
|
[3] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| 9. |
674355R1
|
[1] |
SUPPORT
|
IH
CHANNEL ASSY, upper tension
|
| . . |
550796R1
|
[1] |
CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5
|
IH
BOLT, 3/8-16 x 1-1/4 znd sq-nk crg, for twine Balers Superseded by part number: 86508749
|
| . . |
634979R1
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"
|
IH
BOLT, 3/8-16 x 1-1/2 znd sq-nk crg, for twine Balers Superseded by part number: 280552
|
| 10. |
217-42
|
[1] |
REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT
|
CAS
BUSHING, 3/8 x 1/4 znp reducing pipe
|
| 11. |
144112
|
[1] |
BRACKET
|
NNA
1/4-90 deg znp street Superseded by part number: NLS
|
| 12. |
651643R92
|
[1] |
HOSE
|
IH
hyd 1/4 x 36
|
| 13. |
144083
|
[1] |
CLIP
|
PA
TEE, 1/4 znp pipe
|
| 14. |
201603C1
|
[1] |
GAUGE
|
IH
GAGE, hydraulic, replaces 963008R91 Superseded by part number: 204838C1
|
| 15. |
NLS
|
[2] |
NO LONGER SERVICED
|
BAS
1/4 90 deg pipe znp street
|
| 16. |
668124R1
|
[1] |
FRAME
|
IH
hyd tension jack
|
| 17. |
668123R1
|
[1] |
CHANNEL
|
IH
hyd tension jack
|
| 18. |
668784R1
|
[1] |
SHIELD
|
IH
pump drive chain
|
| . . |
16897R1
|
[2] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 5/16 x 3/4 znd sq-nk crg Superseded by part number: 412-512
|
| . . |
120376
|
[2] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
80681
|
[2] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 19. |
674363R1
|
[2] |
CHANNEL
|
IH
GUIDE, tie bolt
|
| 20. |
668125R1
|
[2] |
BOLT
|
IH
hyd tension channel tie
|
| . . |
280374
|
[4] |
NUT,Hex, 5/8" - 11, Gr 5
|
NH
5/8-11 C-Z hex.
|
| . . |
492-11062
|
[2] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| . . |
608081R1
|
[6] |
WASHER
|
IH
21/32 x 1-3/4 x 11 ga C-Z Superseded by part number: 84156177
|
| 21. |
668751R11
|
[1] |
COLLAR
|
IH
COLLAR W/SET SCREW, bearing lock
|
| . . |
19280R1
|
[3] |
SCREW,Sq Nk, 1/4" - 20 x 3/4"
|
IH
BOLT, 1/4 x 3/4 znd sq-nk crg
|
| . . |
120375
|
[3] |
NUT,Hex, 1/4" - 20, Gr 5
|
IH
Superseded by part number: 7770
|
| . . |
492-11025
|
[3] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| 22. |
192054
|
[1] |
|
P
NIPPLE, 1/4 x 2-1/4 CDP nipple
|
| 23. |
963095R2
|
[1] |
|
P
SNUBBER, 1/4 NPT pressure
|
| 24. |
674716R1
|
[1] |
|
P
SUPPORT, pump, for automatic lubrication attachment only
|
| 25. |
674714R1
|
[1] |
|
P
KEY, 1/8 x 1 sq-parallel, for automatic lubrication attachment only
|
| 26. |
674715R1
|
[1] |
|
P
SPROCKET, pump driven, for automatic lubrication attachment only
|
| . . |
23184R1
|
[1] |
SCREW, 1/4-20 x 5/8 znd soc-hd half dog-pt set
|
|
| 27. |
PO2016
|
[4] |
PIVOT
|
IH
knuckle
|
| 28. |
PO723
|
[1] |
SPIDER ASSY.
|
IH
KNUCKLE
|
| . . |
18657R1
|
[2] |
BOLT,Hex, 1/4"-20 x 1-1/2", G2
|
IH
1/4 x 1-1/2 znd hex-hd mach Superseded by part number: 326-424, 25487R1
|
