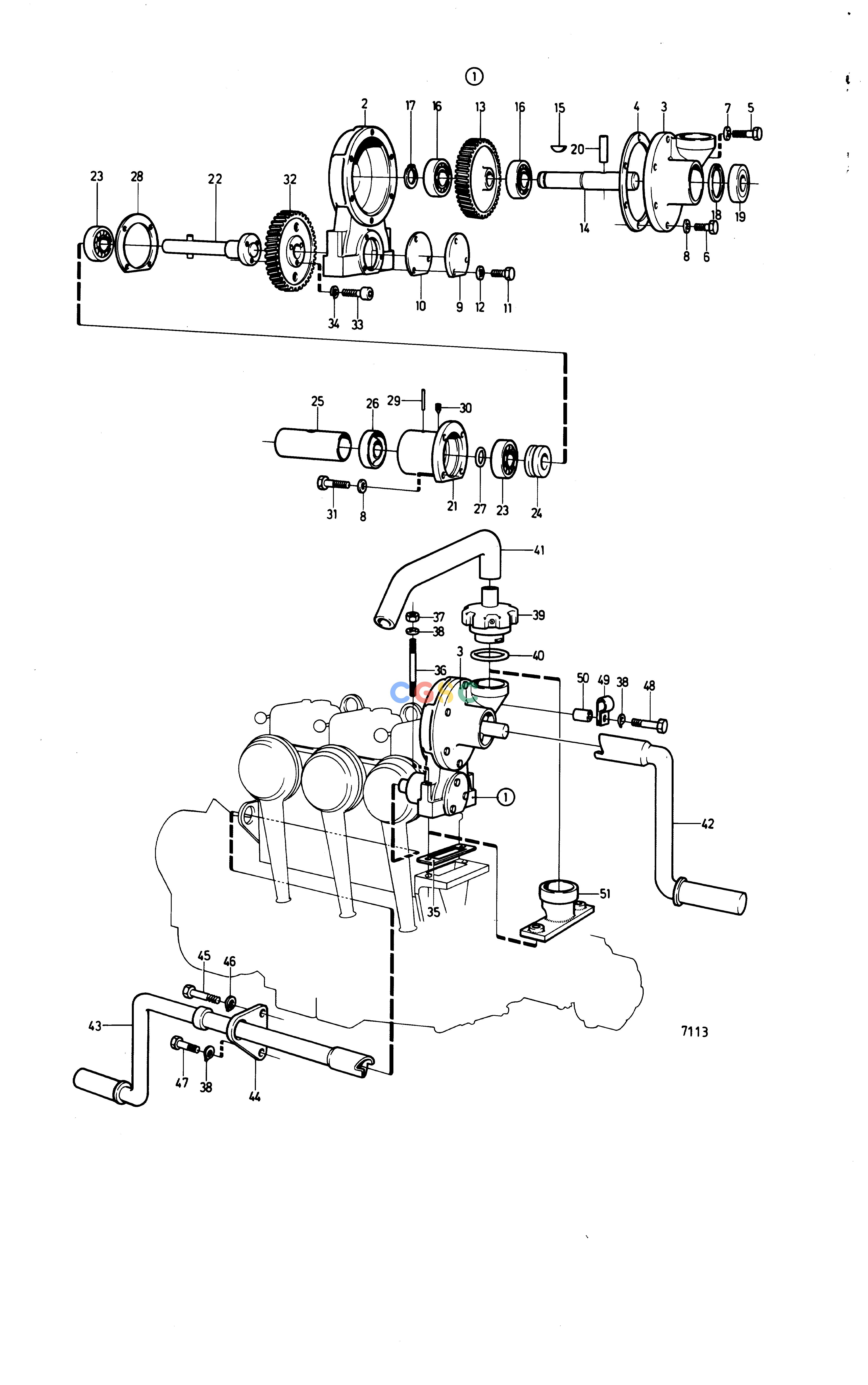

| 1. |
833573
|
[1] |
Hand start
|
Spec 867146, 867147, MO 1668-1670, 1656-., Spec 867119, 867231
|
| 2. |
|
|
|
|
| 3. |
833330
|
[1] |
Cover
|
|
| 4. |
807276
|
[1] |
Gasket
|
|
| 5. |
955271
|
[5] |
Hexagon screw
|
|
| 6. |
955270
|
[1] |
Hexagon screw
|
|
| 7. |
941906
|
[5] |
Spring washer
|
|
| 8. |
11991
|
[5] |
Gasket
|
|
| 9. |
897254
|
[1] |
Cover
|
|
| 10. |
897255
|
[1] |
Gasket
|
|
| 11. |
955243
|
[3] |
Hexagon screw
|
|
| 12. |
18806
|
[3] |
Gasket
|
|
| 13. |
807280
|
[1] |
Gear
|
|
| 14. |
807281
|
[1] |
Shaft
|
|
| 15. |
910117
|
[1] |
Woodruff key
|
|
| 16. |
181113
|
[2] |
Ball bearing
|
|
| 17. |
914454
|
[1] |
Snap ring
|
|
| 18. |
914524
|
[1] |
Snap ring
|
|
| 19. |
833760
|
[1] |
Sealing ring
|
Replaced by 3886602
|
| 19. |
3886602
|
[1] |
Sealing ring
|
|
| 20. |
952007
|
[1] |
Spring pin
|
|
| 21. |
833551
|
[1] |
Bearing carrier
|
|
| 22. |
833555
|
[1] |
Shaft
|
|
| 23. |
181119
|
[2] |
Ball bearing
|
|
| 24. |
833552
|
[1] |
Spacer sleeve
|
|
| 25. |
833553
|
[1] |
Spacer sleeve
|
|
| 26. |
833759
|
[1] |
Sealing ring
|
|
| 27. |
955990
|
[1] |
O-ring
|
|
| 28. |
807278
|
[1] |
Gasket
|
|
| 29. |
951991
|
[1] |
Spring pin
|
|
| 30. |
963012
|
[1] |
Set screw
|
|
| 31. |
955271
|
[4] |
Hexagon screw
|
|
| 32. |
840370
|
[1] |
Gear
|
(803344)
|
| 33. |
942001
|
[3] |
Hex. socket screw
|
|
| 34. |
955948
|
[3] |
Toothed washer
|
|
| 35. |
803361
|
[1] |
Gasket
|
|
| 36. |
952989
|
[1] |
Stud
|
L=80mm
|
| 36. |
952990
|
[1] |
Stud
|
L=85mm
|
| 36. |
924061
|
[2] |
Stud
|
For breather housing 833601.
|
| 37. |
955782
|
[2] |
Hexagon nut
|
|
| 38. |
941907
|
[2] |
Spring washer
|
|
| 39. |
418954
|
[1] |
Ventilator cowl
|
|
| 40. |
940096
|
[1] |
Gasket
|
|
| 41. |
833747
|
[1] |
Rubber hose
|
MD3B spec 867119, 867231.
|
| 41. |
833671
|
[1] |
Rubber hose
|
Spec 867146, 867147, MO 1668-1670, 1656-., MD17D/HD-HE spec 867684., MD17C spec 867211, 867340.
|
| 42. |
803920
|
[1] |
Starting handle cran, rear
|
|
| 43. |
833566
|
[1] |
Starting handle cran, forward
|
Spec 867146, 867147, MO 1668-1670, 1656-., Spec 867119, 867231., MD17D/HD-HE spec 867684., MD17C spe
|
| 44. |
833562
|
[1] |
Bracket
|
Spec 867146, 867147, MO 1668-1670, 1656-., Spec 867119, 867231., MD17D/HD-HE spec 867684., MD17C spe
|
| 45. |
955318
|
[1] |
Hexagon screw
|
Spec 867146, 867147, MO 1668-1670, 1656-., Spec 867119, 867231., MD17D/HD-HE spec 867684., MD17C spe
|
| 46. |
941908
|
[1] |
Spring washer
|
Spec 867146, 867147, MO 1668-1670, 1656-., Spec 867119, 867231., MD17D/HD-HE spec 867684., MD17C spe
|
| 47. |
955297
|
[1] |
Hexagon screw
|
Spec 867146, 867147, MO 1668-1670, 1656-., Spec 867119, 867231., MD17D/HD-HE spec 867684., MD17C spe
|
| 48. |
955295
|
[1] |
Hexagon screw
|
Alt, L=20mm
|
| 49. |
940374
|
[1] |
Clamp
|
|
| 50. |
823492
|
[1] |
Spacer sleeve
|
Alt, L=10mm
|
| 51. |
833601
|
[1] |
Ventilation housing
|
For engine without manual starter.
|
