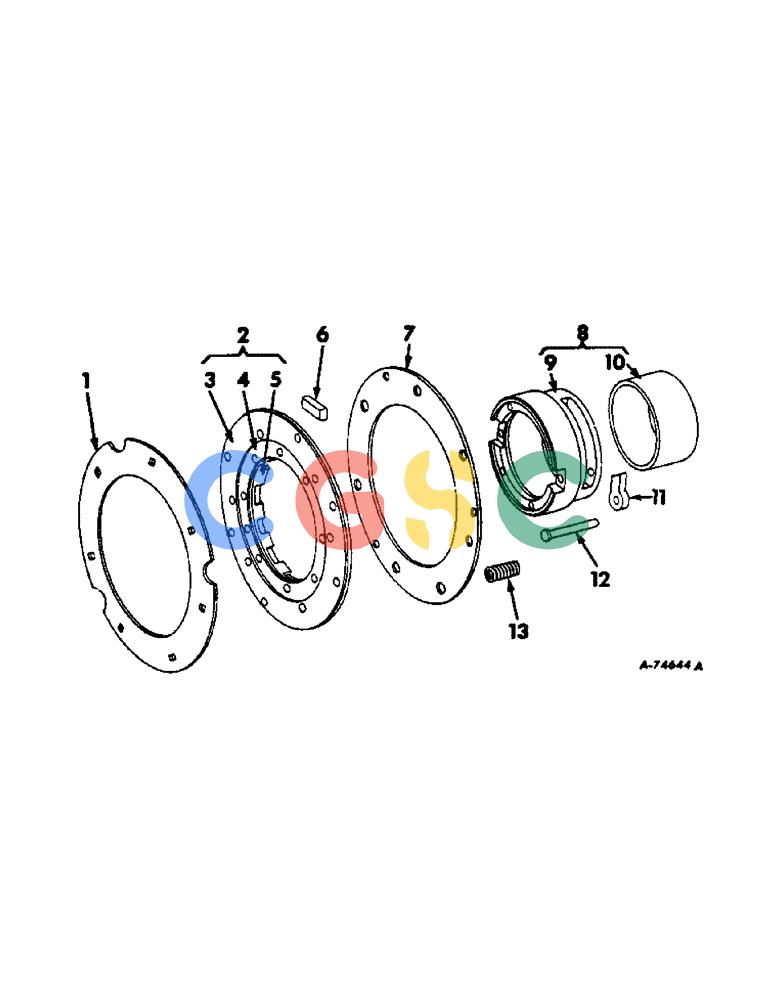

| 1. |
662270R1
|
[1] |
PLATE
|
IH
clutch pressure
|
| 2. |
662043R91
|
[1] |
DISC
|
IH
ASSY, clutch Superseded by part number: 662043R92
|
| 3. |
662045R11
|
[1] |
FACING, CLUTCH
|
IH
FACING W/RIVETS, clutch
|
| . . |
113342
|
[12] |
RIVET,Tr Hd, 3/16" x 3/8", Brass
|
IH
Superseded by part number: 113356
|
| 4. |
662046R1
|
[1] |
|
P
DISC, clutch
|
| . . |
22757R1
|
[10] |
RIVET, 1/4 x 5/8 znp 54 deg csk-hd solid
|
|
| 5. |
662044R1
|
[1] |
HOUSING, clutch lug
|
|
| 6. |
664546R11
|
[1] |
SPACER
|
IH
ASSY, clutch, set of 7
|
| 7. |
662269R1
|
[1] |
PLATE
|
IH
clutch back
|
| . . |
18494R1
|
[3] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
3/8 x 1 C-Z hex-hd mach Superseded by part number: 424-616
|
| . . |
120382
|
[3] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 8. |
662014R11
|
[1] |
CARRIER
|
IH
CLUTCH W/BUSHING, over-running
|
| . . |
18795R1
|
[4] |
BOLT,Hex, 7/16"-14 x 1 1/4", G2
|
IH
7/16 x 1-1/4 C-Z hex-hd mach Superseded by part number: 179860
|
| . . |
120383
|
[4] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| 10. |
662078R1
|
[1] |
BUSHING
|
IH
over-running clutch
|
| 11. |
662241R1
|
[2] |
RATCHET
|
IH
DOG, over-running clutch Superseded by part number: 3101008R1
|
| 12. |
662558R1
|
[2] |
PIN
|
IH
.496 x 1-7/8 rod end
|
| 13. |
M1015
|
[7] |
SPRING
|
IH
clutch
|
| . . |
18710R1
|
[7] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2
|
IH
BOLT, 1/2 x 3 C-Z sq-nk crg Superseded by part number: 80280818
|
| . . |
474848R1
|
[7] |
LOCK NUT,1/2"-13, GB
|
IH
NUT, 1/2-13 C-Z hex. lock Superseded by part number: 231-4218
|
| . . |
460908R1
|
[7] |
WASHER
|
IH
17/32 x 1-1/2 x 11 ga C-Z Superseded by part number: 86624147
|
