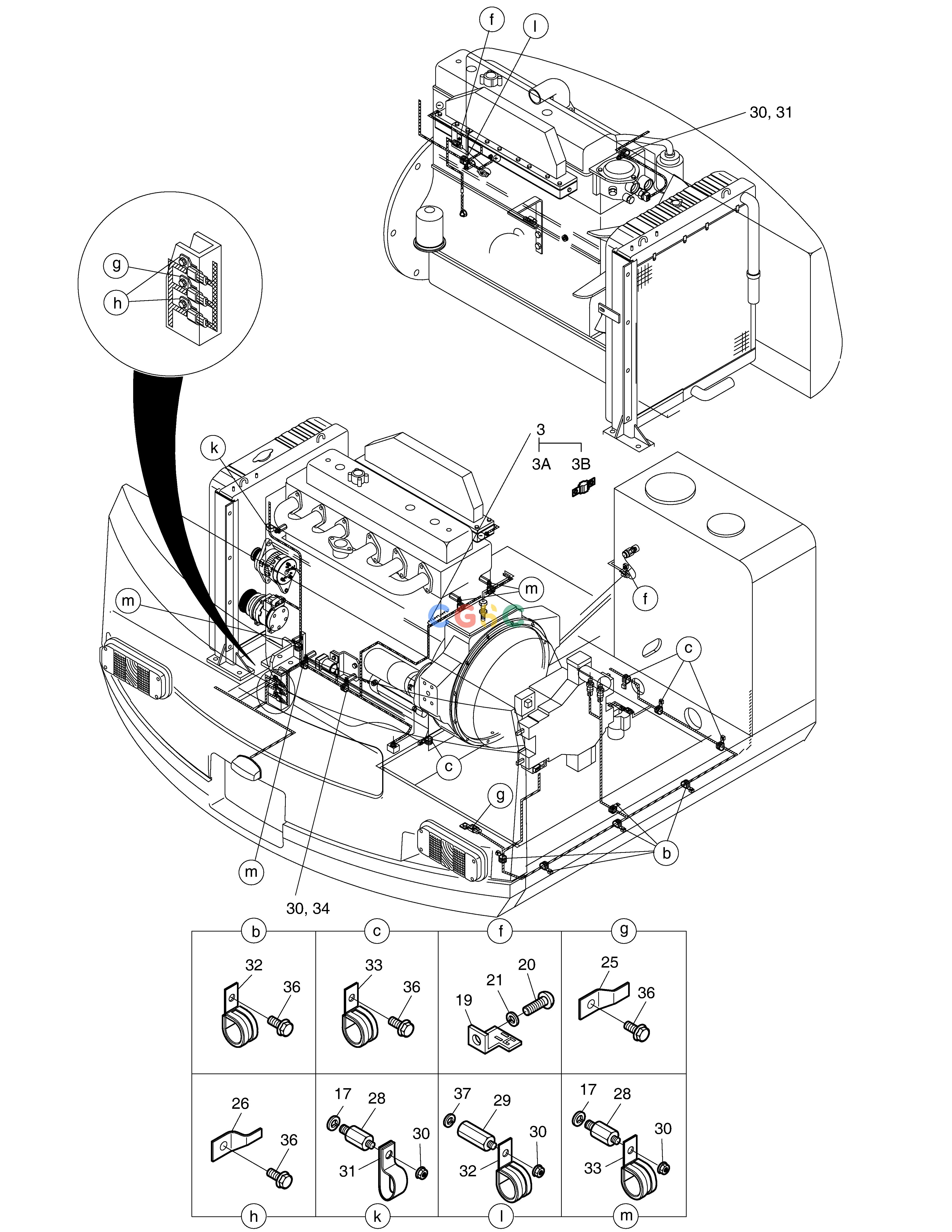

斗山零件查询ELECTRIC WIRING(2)-ENGINE SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
376 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-01030
|
[-] |
|
|
| -. |
500-00218
|
[-] |
ELECTRIC PARTS
|
|
| 17. |
S5102603
|
[5] |
. WASHER
|
|
| 19. |
2195-3500
|
[2] |
BRACKET
|
|
| 20. |
S3450953
|
[2] |
SCREW
|
|
| 21. |
S5102303
|
[2] |
. WASHER
|
|
| 25. |
2197-1660
|
[2] |
BRACKET
|
|
| 26. |
2197-1661
|
[3] |
BRACKET
|
|
| 28. |
2120-2235
|
[5] |
BOLT;STUD
|
|
| 29. |
2120-2187
|
[3] |
BOLT
|
|
| 3. |
310207-01009
|
[1] |
|
|
| 3. |
530-00278A
|
[1] |
HARNESS;ENGINE
|
|
| 30. |
2121-1305
|
[8] |
NUT
|
|
| 31. |
2124-1509D1
|
[2] |
CLIP
|
|
| 32. |
124-00208D2
|
[6] |
CLAMP
|
|
| 33. |
124-00208D3
|
[8] |
CLIP
|
|
| 34. |
124-00208D4
|
[1] |
CLIP
|
|
| 36. |
120-00276
|
[10] |
BOLT M8X1.25X12
|
|
| 37. |
S5102503
|
[1] |
. WASHER
|
|
| 3A. |
2548-1027
|
[2] |
DIODE
|
|
| 3B. |
300803-00086
|
[1] |
|
|
