纽荷兰零件查询(E200SR) - CRAWLER EXCAVATOR BTW YB04-02319 - YB04-02550 (01-059) - ELEC ASSY, UPP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
878 次

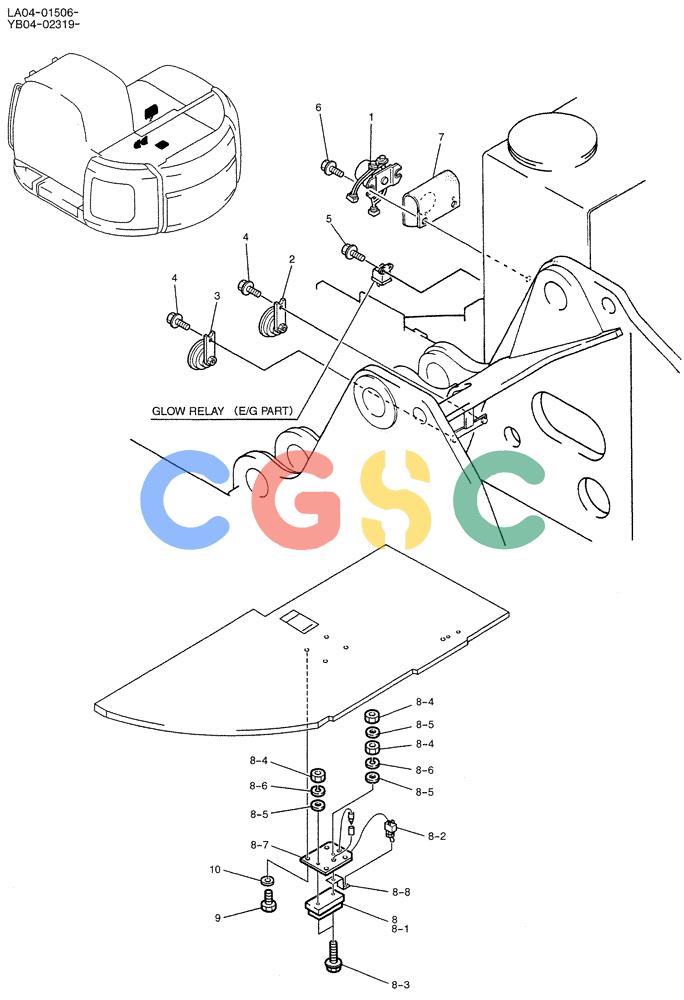

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB03E00001F2 | [1] | ELEC ASSY, UPP | |
| 1. | YT24S00001F1 | [1] | RELAY | KOBASSY, BATTERY |
| 2. | CM53S00002F1 | [1] | HORN | KOBASSY |
| 3. | CM53S00002F2 | [1] | HORN | KOBASSY |
| 4. | ZM11C08016 | [2] | BOLT | KOBSEMS |
| 5. | ZM61C06016 | [2] | BOLT | KOBSEMS |
| 6. | ZM22C08030 | [2] | BOLT | KOBSEMS |
| 7. | YT03E01006P1 | [1] | RUBBER | KOB |
| 8. | YB80E00001F1 | [1] | LIGHT | KOBASSY |
| 8-1. | 4056R4F1 | [1] | LAMP | KOBASSY, ROOM |
| 8-2. | YT50S00005P1 | [1] | SWITCH | KOB |
| 8-3. | ZM61C05020 | [2] | SCREW | KOBSEMS-BOLT |
| 8-4. | ZN18C05004 | [3] | NUT | KOB |
| 8-5. | ZW16K05000 | [3] | WASHER | KOB |
| 8-6. | ZW26X05000 | [2] | LOCK WASHER | KOBLOCK |
| 8-7. | YB80E01001P1 | [1] | PLATE | KOB |
| 8-8. | 2456R117S14 | [1] | U-BRACKET | KOB |
| 9. | ZS18C06016 | [4] | SCREW,Hex, M6 x 16mm | KOBCAP |
| 10. | ZW16X06000 | [4] | WASHER | KOB Superseded by part number: 86588450 |
