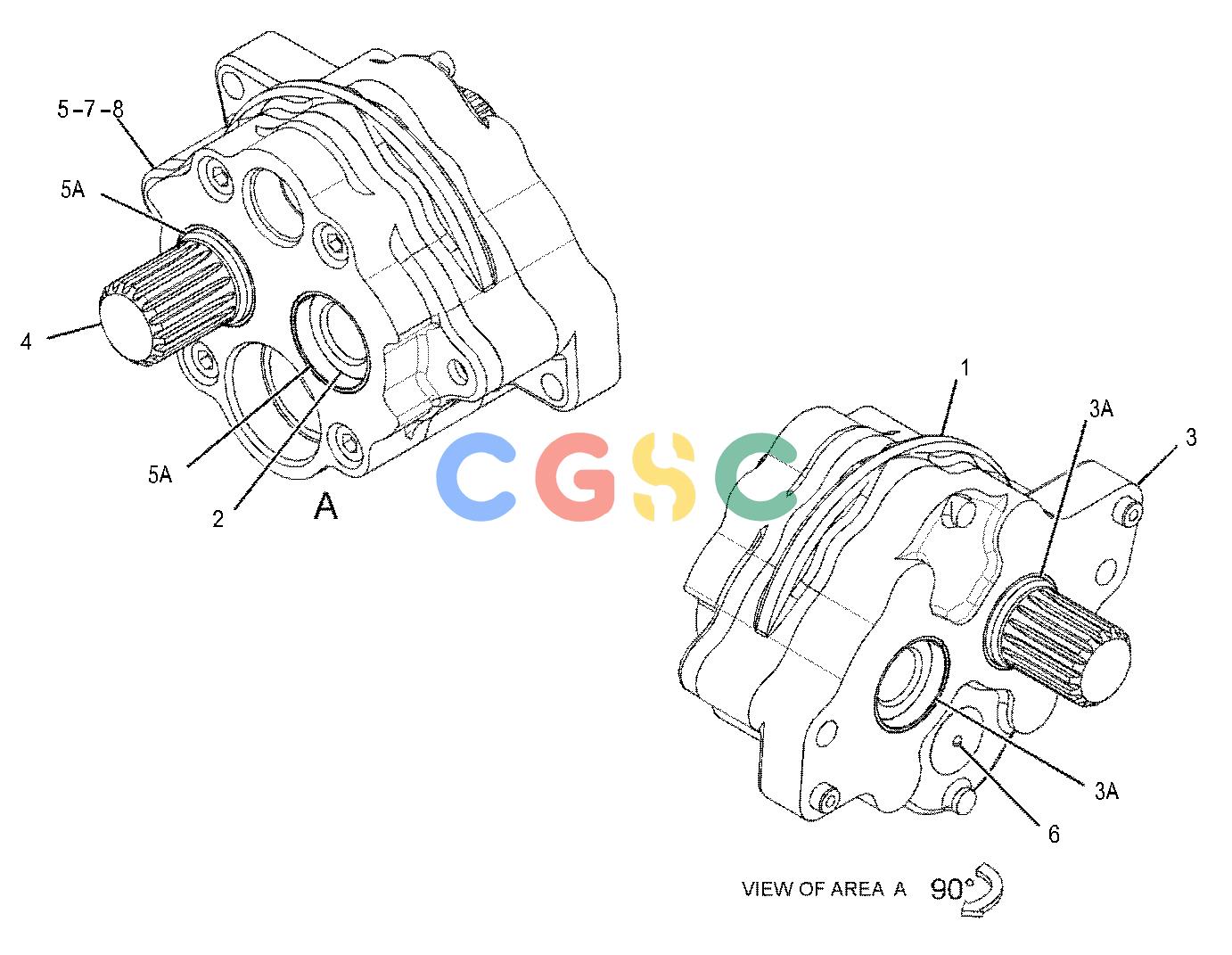

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 269-0251 | [1] | BODY AS-PUMP | |
| 8M-8489 | [4] | DOWEL | ||
| 2. | 269-0254 | [1] | GEAR AS-PUMP(17-TEETH) | |
| 3. | 273-5693 | [1] | COVER AS-PUMP | |
| 3A. | 129-4536 | [2] | BUSHING | |
| 8M-8489 | [2] | DOWEL | ||
| 4. | 284-4662 | [1] | GEAR(17-TEETH) | |
| 5. | 389-0415 | [1] | MANIFOLD AS-PUMP | |
| 5A. | 129-4536 | [2] | BUSHING | |
| 6. | 7B-3028 | [1] | SCREW-DRIVE(NO 4X 3/16-IN) | |
| 7. | 095-0658M | [4] | BOLT-SOCKET HEAD(M10X1.5X70-MM) | |
| 8. | 3S-0004 | [4] | WASHER(0.406X0.728X0.09-IN THK) | |
| M | METRIC PART | |||
